OMAHA STANDARD

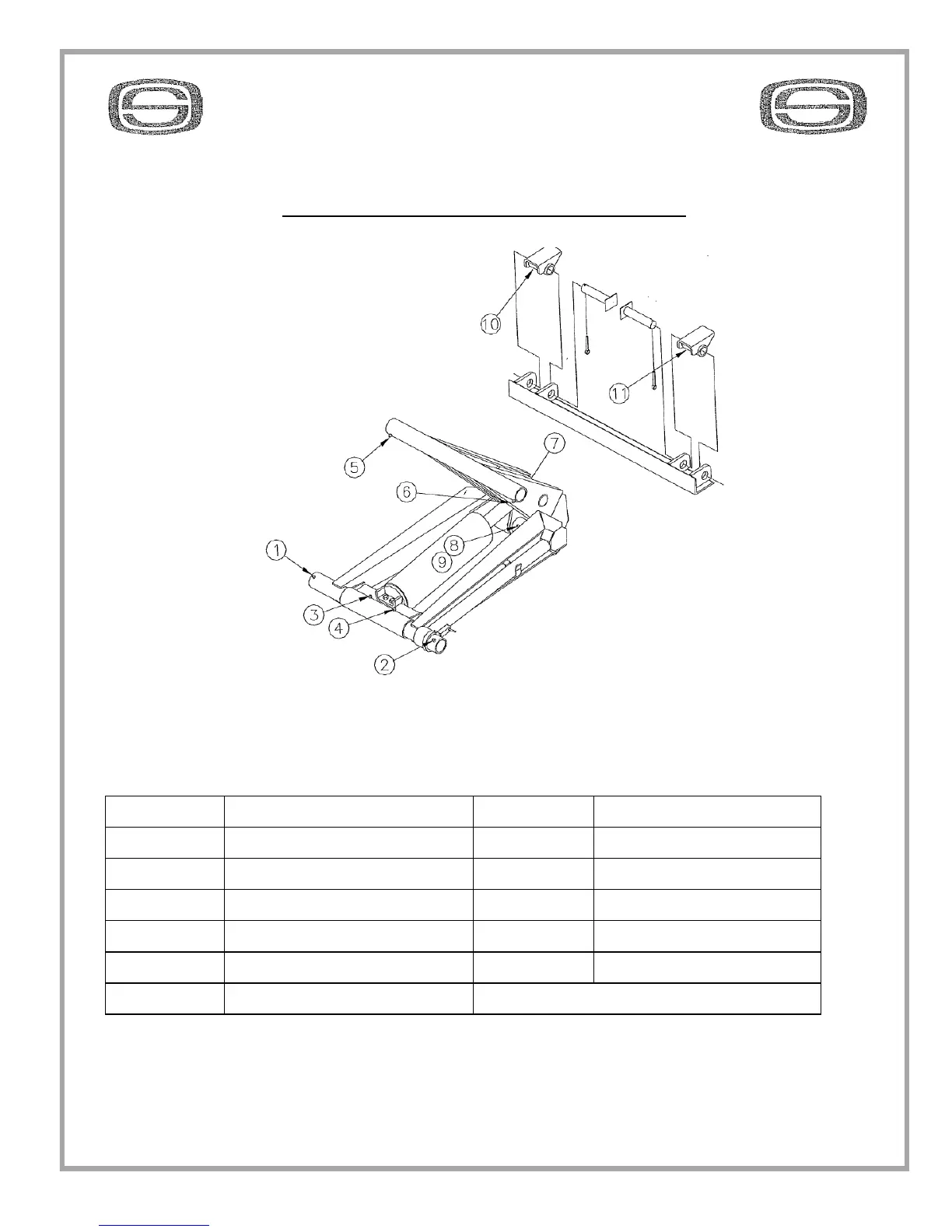

415/515/519 Grease Zerk Locations
NOTE: TRAILER MANUFACTURES MAY HAVE INSTALLED A REAR HINGE
OTHER THAN THE OMAHA STANDARD REAR HINGE SHOWN HERE
ITEM NO. LOACTION ITEM NO. LOCATION
1 LOWER CROSS TUBE 7 CROSS HEAD TUBE
2 LOWER CROSS TUBE 8 SCISSOR HINGE TUBE
3 CYLINDER MOUNT TUBE 9 SCISSOR HINGE TUBE
4 CYLINDER MOUNT TUBE 10 REAR HINGE
5 UPPER CROSS TUBE 11 REAR HINGE
6 UPPER CROSS TUBE
