OMAHA STANDARD

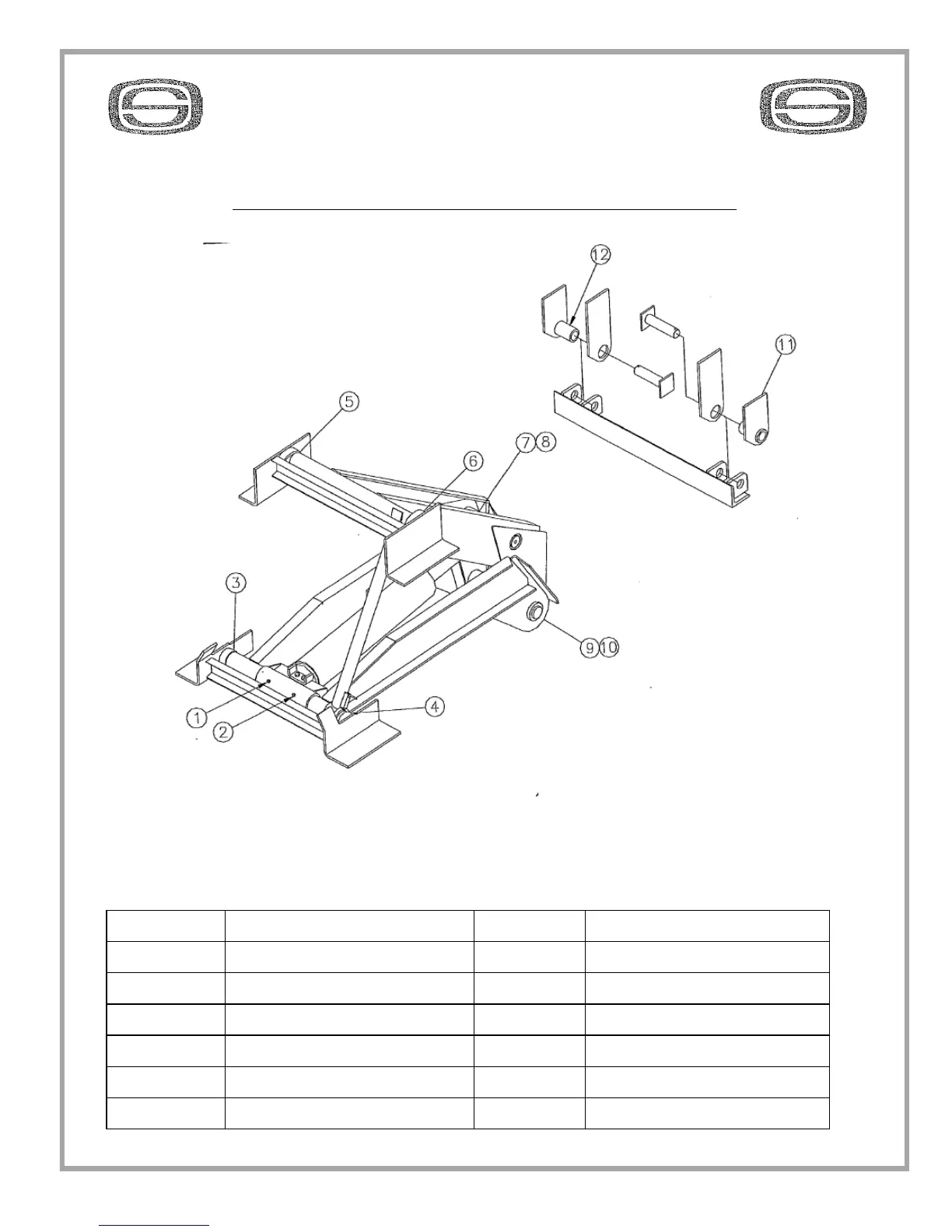

520-625/630 DTH GREASE ZERK LOCATIONS
NOTE: TRAILER MANUFACTURES MAY HAVE INSTALLED A REAR HINGE
OTHER THAN THE OMAHA STANDARD REAR HINGE SHOWN HERE
ITEM NO. LOACTION ITEM NO. LOCATION
1 CYLINDER MOUNT TUBE 7 CROSS HEAD TUBE
2 CYLINDER MOUNT TUBE 8 CROSS HEAD TUBE
3 LOWER MOUNT 9 SCISSOR HINGE TUBE
4 LOWER MOUNT 10 SCISSOR HINGE TUBE
5 UPPER MOUNT 11 REAR HINGE PIVOT TUBE
6 UPPER MOUNT 12 REAR HINGE PIVOT TUBE
