Steris SYSTEM 1E - Page 155

To Next Page

To Previous Page

764333-676

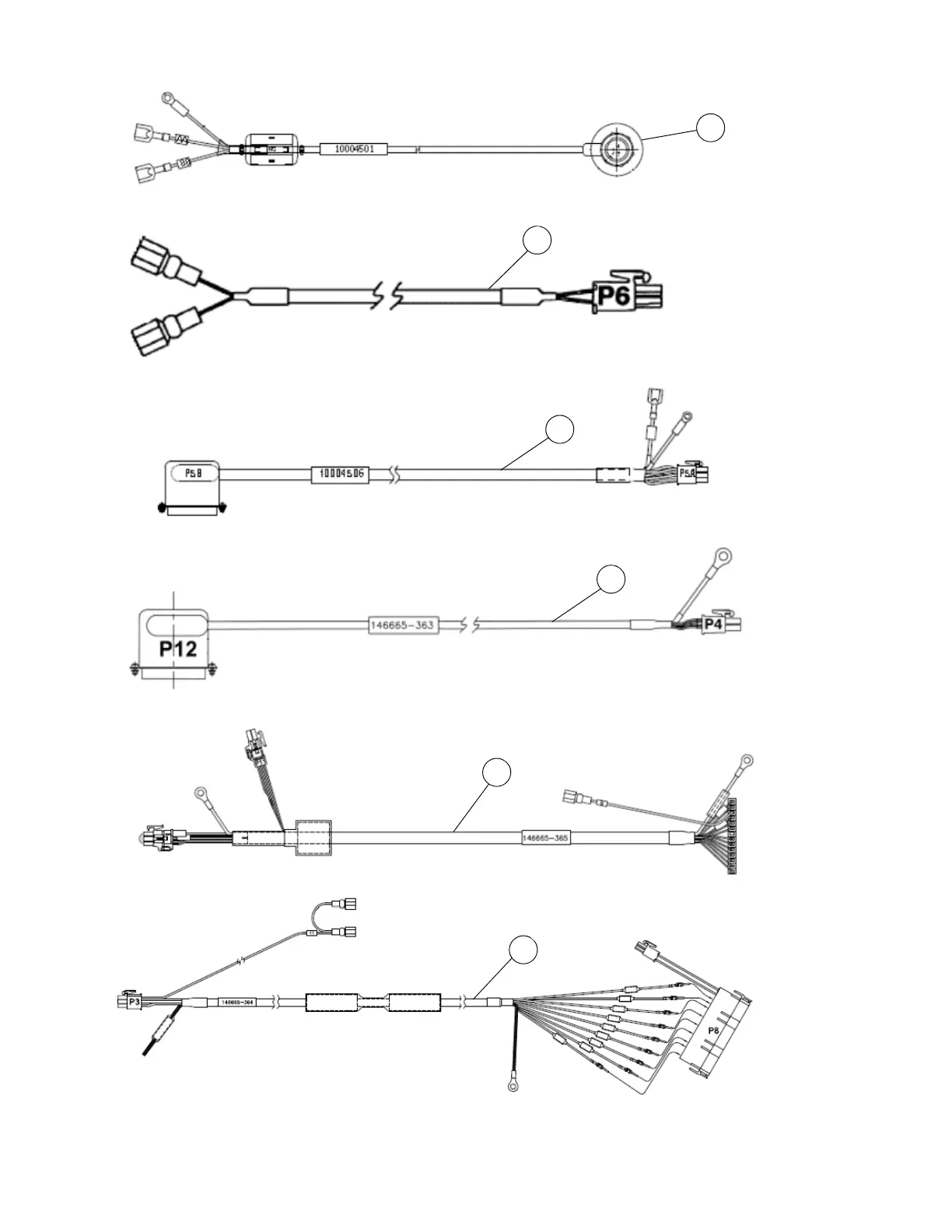

Figure 18. Harness/Cable Assemblies (1 of 2)

P10

PT1

P5B

P11

P5A

Main Page
