Steris SYSTEM 1E - General Information; Technical Specifications; Overall Size SYSTEM 1 E Liquid Chemical Sterilant Processing System; Weight

1-5
764333-675
1.3 GENERAL INFORMATION
This Maintenance Manual is applicable for SYSTEM 1E
Liquid Chemical Sterilant Processing System.
1.4 TECHNICAL SPECIFICATIONS
1.4.1 Overall Size SYSTEM 1E Liquid
Chemical Sterilant Processing System
Processor
Width: 40" (102 cm)
Depth: 24" (61 cm)
Height:
• Lid Closed: 13" (33 cm)
• Lid Open: 32" (82 cm) plus 6" (15 cm)
service clearance
UV Chamber
Width: 32" (81.3 cm)
Depth: 6" (15.2 cm)
Height: 8" (20.32 cm)
UV Ballast
Width: 6.5" (16.5 cm)
Depth: 4" (10.2 cm)
Height: 13.5" (34.3 cm)
1.4.2 Weight
Processor
Dry: 140 lb (64 kg)
Operating: 165 lb (75 kg)
Shipping: 178 lb (81 kg)
UV Chamber
Operational Weight: 22 lb (10 kg)
UV Ballast
Operational Weight: 3 lb (1.4 kg)
1.4.3 Utility Requirements Electrical
Voltage: 115V ac
(+5%/-10%)
Frequency: 60 Hz
Service Required: SYSTEM 1E Processor:
15 Amp
1
UV System:
1 Amp
1
1.4.4 Water Requirements
• Pressure: Minimum, 40 psi (276 kPa); preferred 50
to 60 psi (345 to 414 kPa).
• Flow Rate: Minimum, 2.5 gpm (9.5 lpm).
• Temperature: 43 to 60°C (109 to 140°F).
• For optimum cycle time, water temperature should
be between 46 to 48°C (115 to 118°F).
• Connection: 3/4" (1.9 cm) male hose connector.
• Quality: Potable/tap water. <
140 ppm hardness as
CaCO
3,
transmittance: > 88% at 254 nm
• Drain: 1-1/4" (3.18 cm) I.D. (minimum)
non-backpressuring drain.
• Supply Line: 1/2" (1.27 cm) I.D. (minimum) 3/4"
(1.9 cm) I.D., optimum. Backflow prevention by
others.
• Water Usage: Approximately 8.7 gal (33 L) per cycle.
• Peak Consumption: Minimum, 2.5 gpm (9.5 lpm)
1.4.5 Pre-Filter Specifications:
• Pre-Filter A: Filter Rating - 2.5 micron Flow Rate –
14.5 gpm/psid
• Pre-Filter B: Filter Rating - 0.1 micron nominal Flow
Rate - >1.0 gpm/psid
• Water Pressure Regulator: Pressure Setting - pre-set
to 50 psig (minimum flow at 2.5 gpm or 9.5 lpm)
1.4.6 Environmental Conditions
• Temperature: 16 to 32°C (60 to 90°F).
• Humidity: 10 to 90%, non-condensing.
• Classification: Protection against electric shock:
Class 1
1.4.7 General Installation Location
Recommendation
The processor shall be installed and operated outside
of patient environment exemplified in Figure 1-1.
1. Use hospital-grade GFCI receptacle.

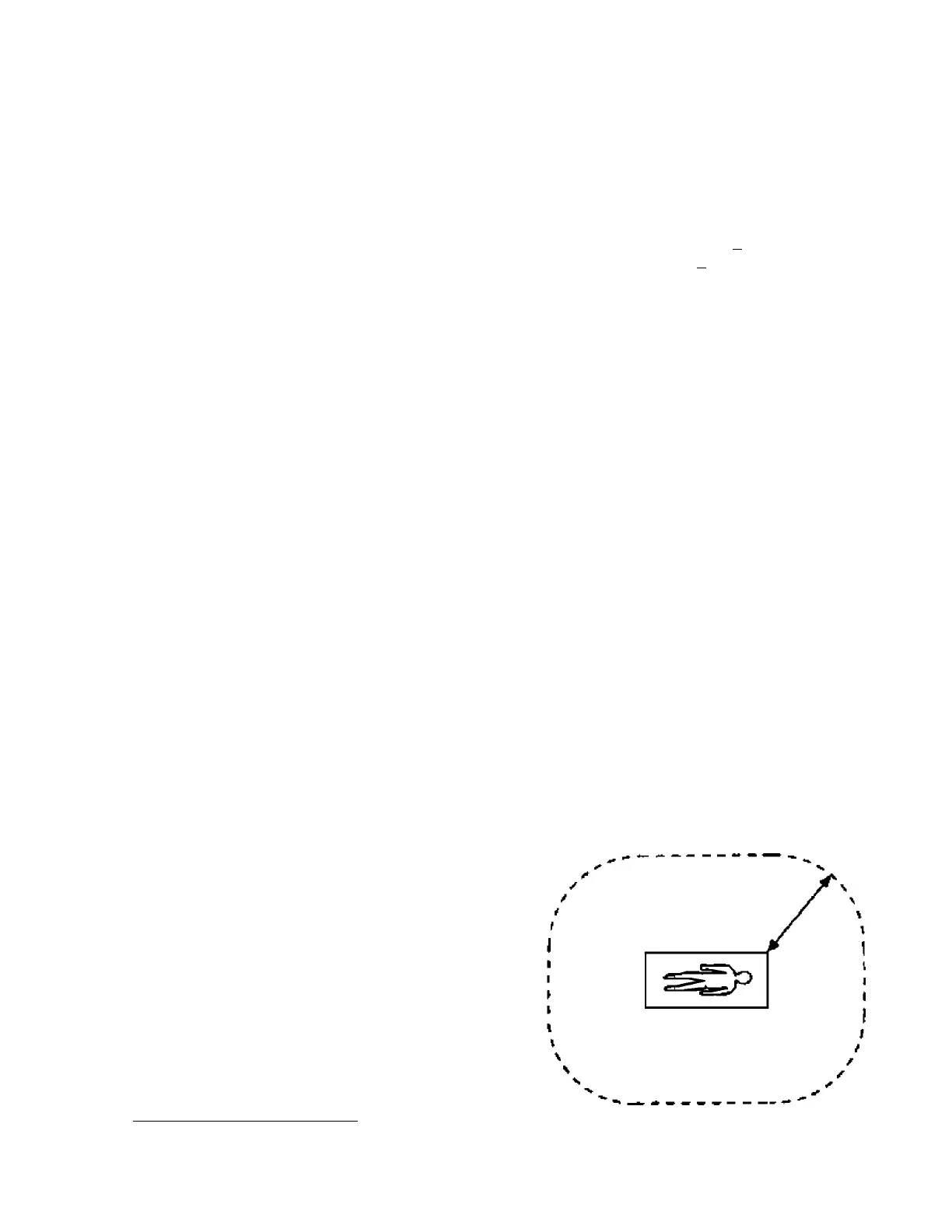

Figure 1-1. Processor Placement
