Stiga MP 84/98 - Safety Device Checks

WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
CHAPTER REVISION FROM ... PAGE
7.2 1 2018 1 of 1
CUTTING IN OF THE SAFETY DEVICES
General informations

Related topics
[
7.3] Safety microswitches operation check

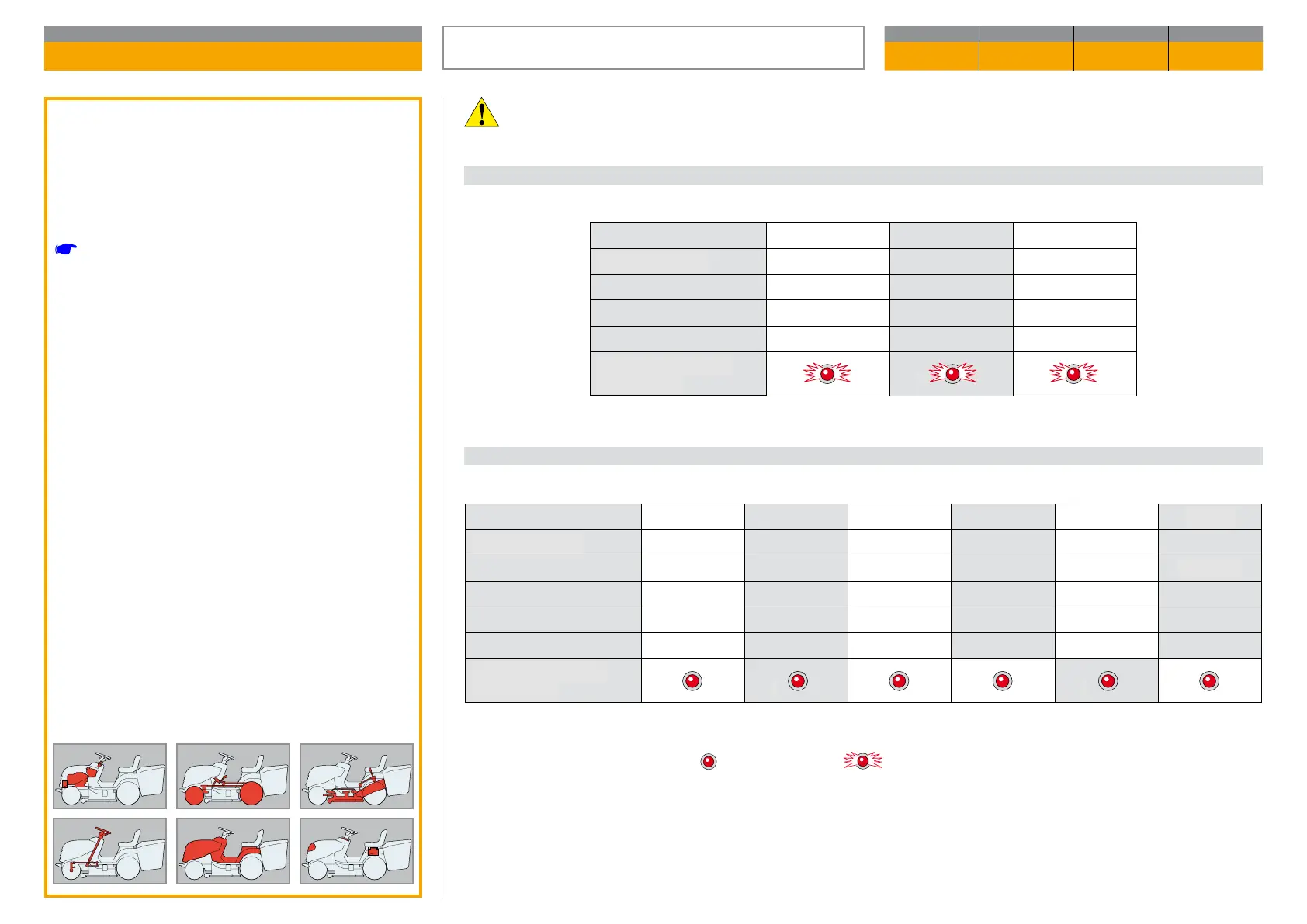

This table shows the various situations in which the sa fety devices intervene.
A) STARTING («START» position)
The engine DOES NOT start, when:
Operator –/– –/– Absent
Grass-Catcher –/– –/– –/–
Blades –/– Engaged –/–
Drive Engaged –/– –/–
Parking –/– –/– –/–
Indication on the
Dashboard
B) WHILE CUTTING
The engine STOPS start, when:
Operator Absent Absent Absent –/– –/– Seated
Grass-Catcher –/– –/– –/– Missing –/– Fitted
Blades –/– Engaged –/– Engaged Engaged
Engaged
Drive Engaged –/– –/– –/– –/– Reverse
Consent Button –/– –/– –/– –/– –/– Released
Parking –/– –/– –/– –/– Engaged –/–
Indication on the
Dashboard
–/– Irrelevant condition for the triggering of safety devices
= Pilot lamp on = Pilot lamp ashing
