Stiga MP 84/98 - Electrical Diagrams

WORKSHOP MANUAL
Map of functional units
MP 84/98 - MP 84/98 Hy
General informations
---
Related topics
---
ELECTRICAL DIAGRAMS
CHAPTER REVISION FROM ... PAGE
7.11 2 2018 1 of 2

2

4




BK
BK
BK
BK
BK
BK
BL
BR
BR
RE BR
BR
RE
RE
RE
WH
WH BL
BK
BK
RERE
VI
VI
WH
NC - 3
NO - 2
C




AVV
+Bt Mot. Avv
GND
GND
OR
BK

WH
1
RE
BK
BL
WH
3 1
4 2
4
3
2
1
BL
RE BR
BR
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
YE
PK
GR




RE
RE
RE
RE
RE
RE
RE
RE
BR
VI
OR
BK
OR
BL
OR

PK


NO - 2
NC - 3
C
GR
RE
RE
NC - 3
NO - 2
C
YE
GY
RE
BR
GY
OR
VI
OR
BL
WH
NC - 3
NO - 2
C
NC - 3
NO - 2
C
NC - 3
NO - 2
C

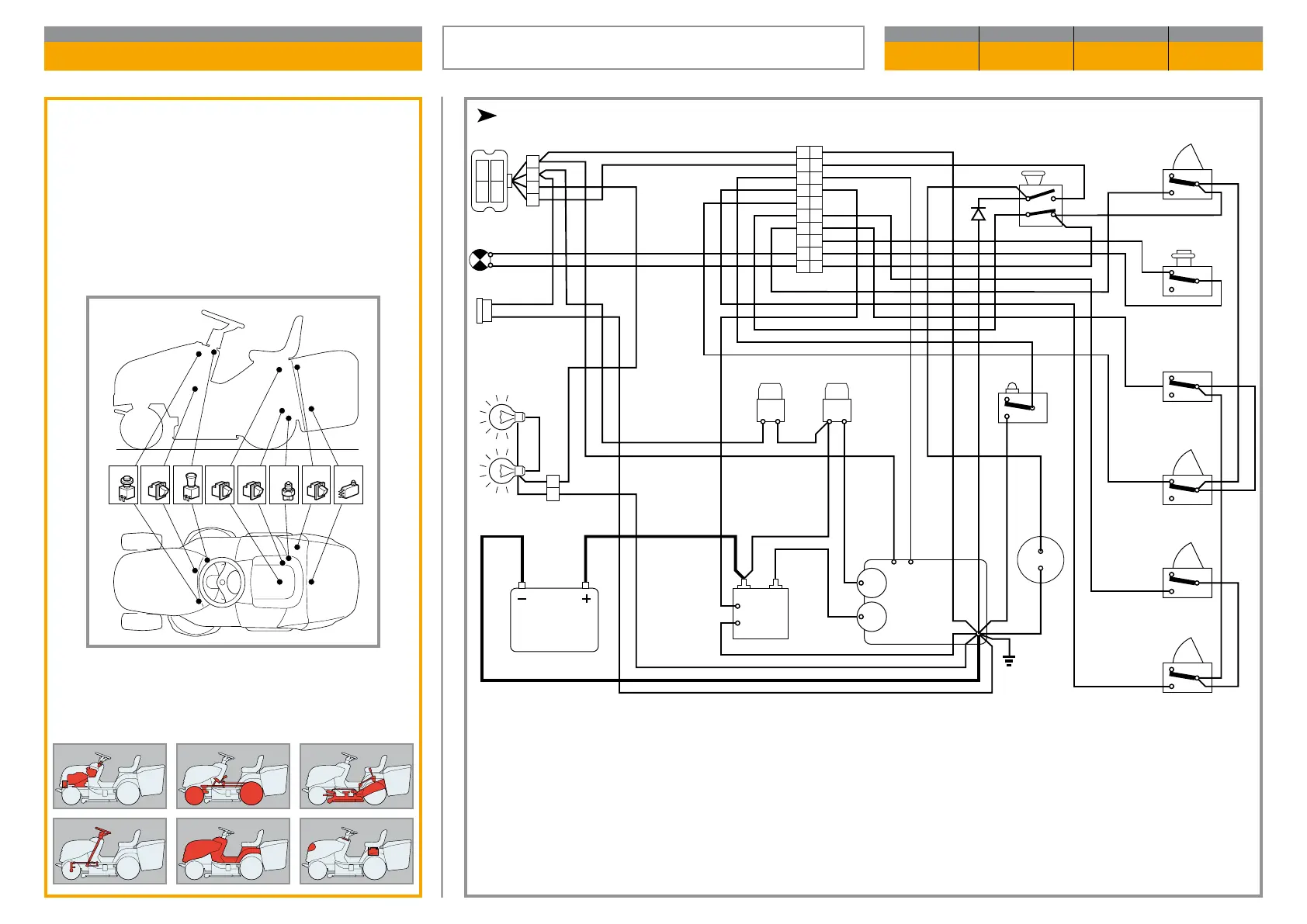

Engines B&S - Stiga
1 Electronic card
2 Engine
2a Generator
2b Starter motor
2c Engine stop
2d Carburattor
3 Battery
4 Starter relay
5 Key ignition switch
6 Blades switch
7 Brake microswitch
8 Grasscatcher microswitch
9 Seat microswitch
10 Neutral microswitch
11 Grasscatcher full microswitch
12 Clutch
13 Recharge connector
15 Headlight
16a 10 A fuse
16b 25 A fuse
19 Reverse consent button
20 Reverse gear microswitch
CABLE COLOURS
BK Black
BL Blue
GR Green
BR Brown
GY Grey
OR Orange
PK Pink
RE Red
VI Violet
WH White
YE Yellow

 
 
