Stihl FSA 90 - Attachment Mounting Hardware; Blocking the Shaft for Mounting; Fitting Mowing Head

FSA 90, FSA 90 R
English
50

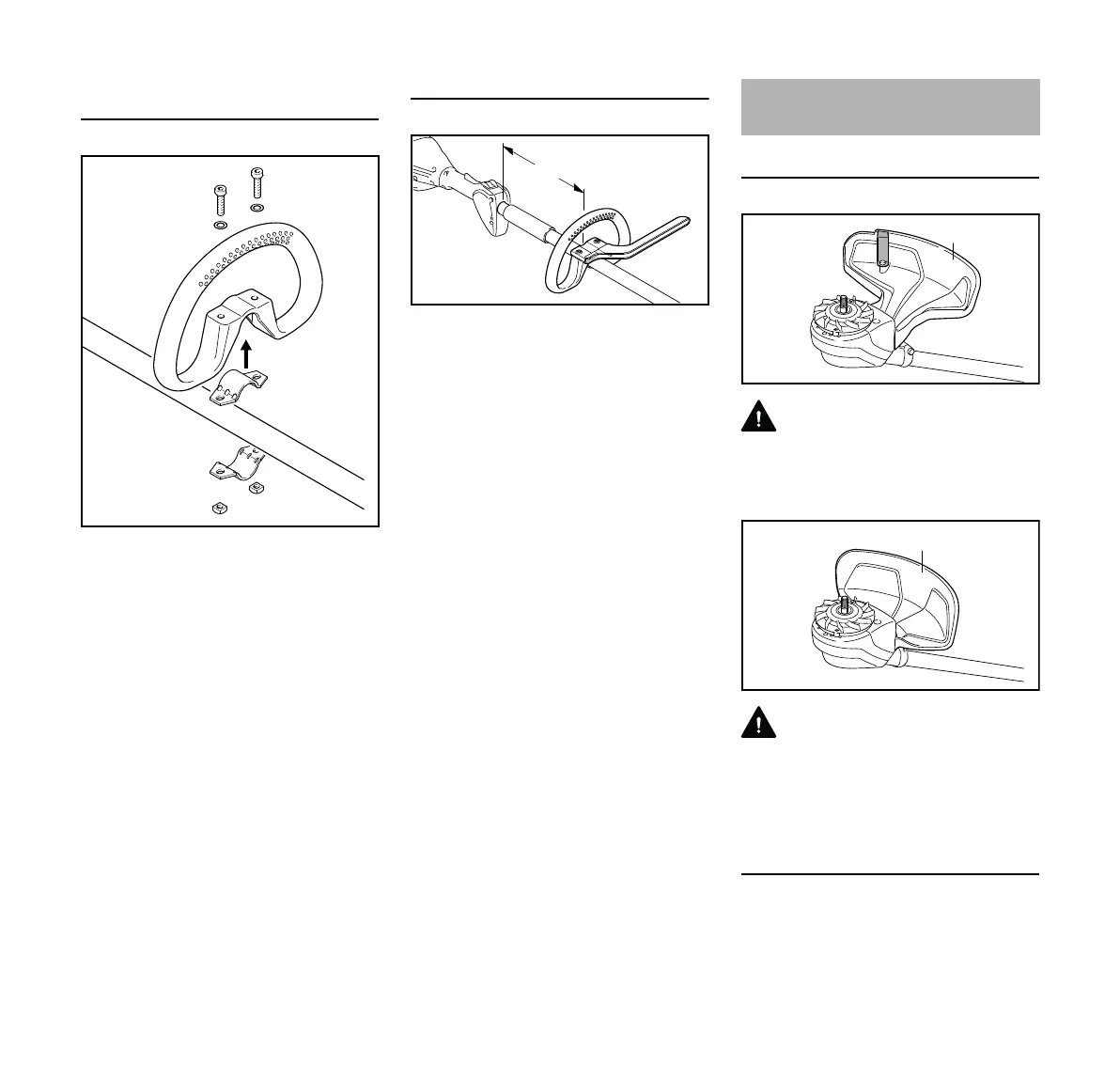

Mounting the Loop Handle without
Barrier Bar
N Place the clamp (3) in the loop
handle (4) and position them both
against the shaft (5).
N Position the clamp (6) against the
shaft.
N Line up the holes.
N Fit washers (8) on the screws (7)
and insert the screws in the holes.
Fit the square nuts (1) and screw
them down as far as stop.
N Go to "Adjusting and Securing the
Loop Handle".
Adjusting and Securing the Loop Handle
The loop handle can be adjusted to suit
the height and reach of the operator and
the application by changing
distance (A).
Distance A when using mowing heads:
Max. 30 cm (12 in)
Distance A when using metal cutting
attachments: Max. 25 cm (10 in)
N Slide the handle to the required
position.
N Line up the loop handle (4).
N Tighten down the screws until the
loop handle can no longer be
rotated on the shaft. If no barrier bar
is fitted – lock the nuts if necessary.
Use the Right Deflector
WARNING
Deflector (1) is approved for mowing
heads only and must therefore be
mounted before fitting a mowing head
WARNING
Deflector (2) is approved for grass
cutting blades only and must therefore
be mounted before fitting a grass cutting
blade.
Mounting the Deflector
Deflectors (1 and 2) are both mounted to
the motor housing in the same way.
7
8
5
4
1
6
1
3
8
7
3988BA001 KN
4
A
3988BA029 KN
Mounting the Deflector
1
3988BA008 KN
2
3988BA009 KN
