Stihl FSA 90 - Cutting Attachment Installation; Power Tool Placement and Fanwheel Mounting

FSA 90, FSA 90 R
English
49

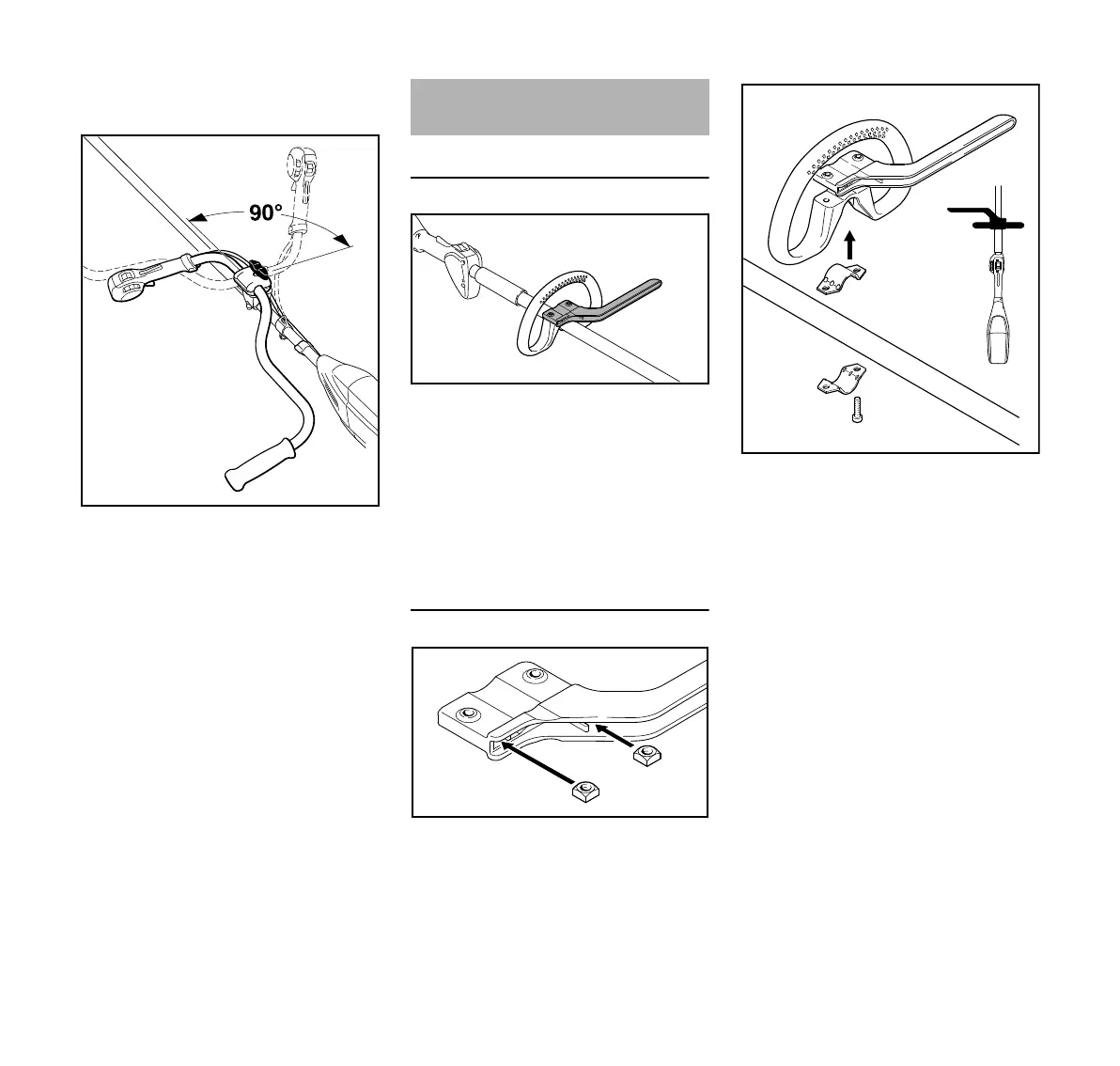

Swinging handlebar into transport
position
N Loosen the wing screw (3) and
unscrew it until the handlebar (7)
can be rotated.
N Rotate the handlebar 90°
counterclockwise and then swing
the handles down.
N Tighten down the wing screw (3)
firmly.
Swinging handlebar into working
position
N Reverse the sequence described
above to swing the handles up and
turn the handlebar clockwise.
Using the Barrier Bar
A barrier bar may have to be mounted to
suit the cutting attachment you intend to
use – see "Approved Combinations of
Cutting Attachment, Deflector, Handle
and Harness".
The barrier bar comes standard with the
machine or is available as a special
accessory.
Mounting Loop Handle with Barrier Bar
N Fit the square nuts (1) in the barrier
bar (2); the holes must line up.
N Place the clamp (3) in the loop
handle (4) and position them both
against the shaft (5).
N Position the clamp (6) against the
shaft.
N Place the barrier bar (2) in position
as shown.
N Line up the holes.
N Insert the screws (7) in the holes
and screw them into the barrier
bar (2) as far as stop.
N Go to "Adjusting and Securing the
Loop Handle".
7
3
3988BA006 KN
Mounting the Loop Handle
3988BA034 KN
2
1
1
3988BA030 KN
2
5
4
3
6
7
3988BA007 KN
