STMicroelectronics STM32L476G-EVAL User Manual

Hardware layout and configuration UM1855
50/100 DocID027351 Rev 3
2.27.1 Limitations
The following limitations apply for the smartcard operation:
• Smartcard operation is mutually exclusive with LCD glass module, Quad-SPI Flash
memory device and motor control operation.
• SWP operation is mutually exclusive with LCD glass module, touch-sensing button,
motor control and USB OTG FS port operation, if the last operates as USB host. SWP
can operate concurrently with USB OTG FS port acting as USB device.
2.27.2 Operating voltage
Smartcard operating ranging from V
DD
= 2.7 V to V
DD
= 3.6 V. However, the SWP only
operates with the supply voltage of 3.3 V.
2.28 Near-field communication (NFC)
The STM32L476G-EVAL board can host an NFC transceiver board plugged in CN13
extension connector.
Figure 12 illustrates the way of attaching an NFC board.

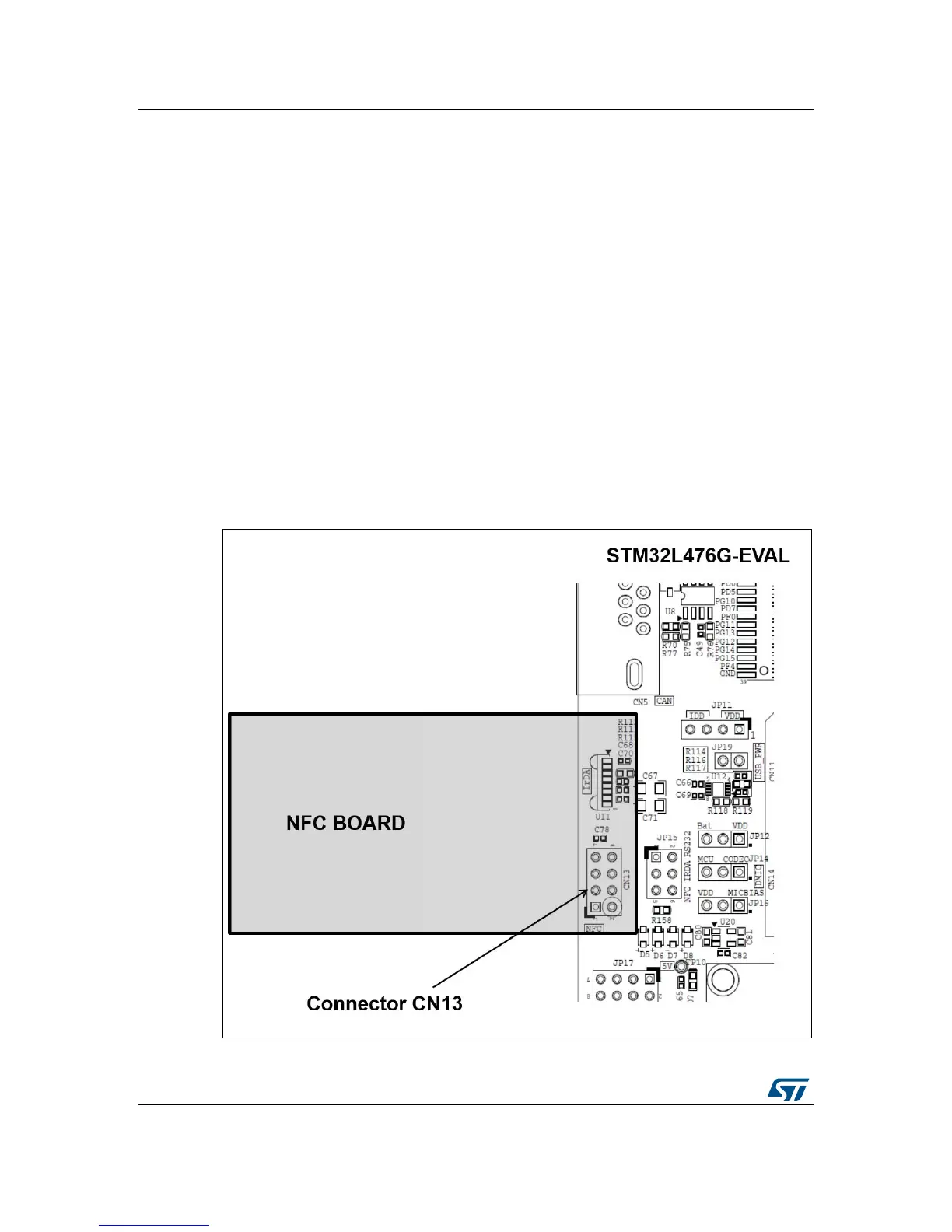

Figure 12. NFC board plugged into STM32L476G-EVAL board

STMicroelectronics STM32L476G-EVAL Specifications

General

Core	ARM Cortex-M4
Flash Memory	1 MB
SRAM	128 KB
Operating Voltage	1.71 V to 3.6 V
Clock Speed	80 MHz
On-Board Debugger	ST-LINK/V2-1
EEPROM	No
Debug Interface	SWD
USB	USB 2.0
Development Environment	STM32CubeIDE
Connectors	USB, Audio jack
ADC	12-bit ADC
DAC	12-bit DAC
Communication Interfaces	I2C, SPI, USART, USB, CAN
Operating Temperature	-40°C to +85°C
Power Consumption	Low power consumption
