Connectors UM1855

68/100 DocID027351 Rev 3

3.9 microSD card connector CN18

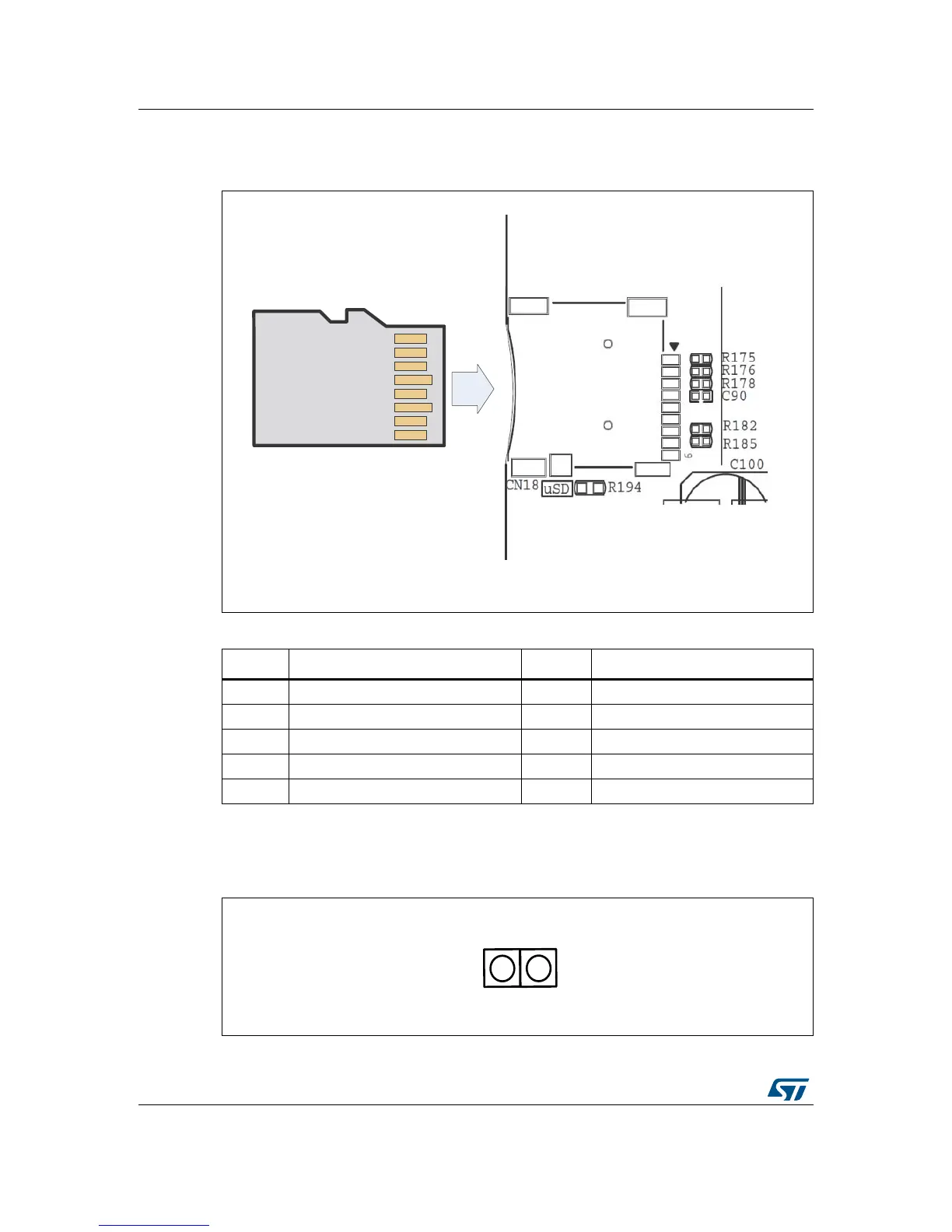

Figure 25. microSD card connector CN18

3.10 ADC/DAC connector CN8

Figure 26. Analog input-output connector CN8 (top view)

Table 39. microSD card connector CN18

Terminal Terminal name (MCU port) Terminal Terminal name (MCU port)

1 SDIO_D2 (PC10) 6 Vss/GND

2 SDIO_D3 (PC11) 7 SDIO_D0 (PC8)

3 SDIO_CMD (PD2) 8 SDIO_D1 (PC9)

4 VDD 9 GND

5 SDIO_CLK (PC12) 10 MicroSDcard_detect (PA8)

06Y9

PLFUR6'

FDUG

&1

(YDOXDWLRQERDUG

06Y9
