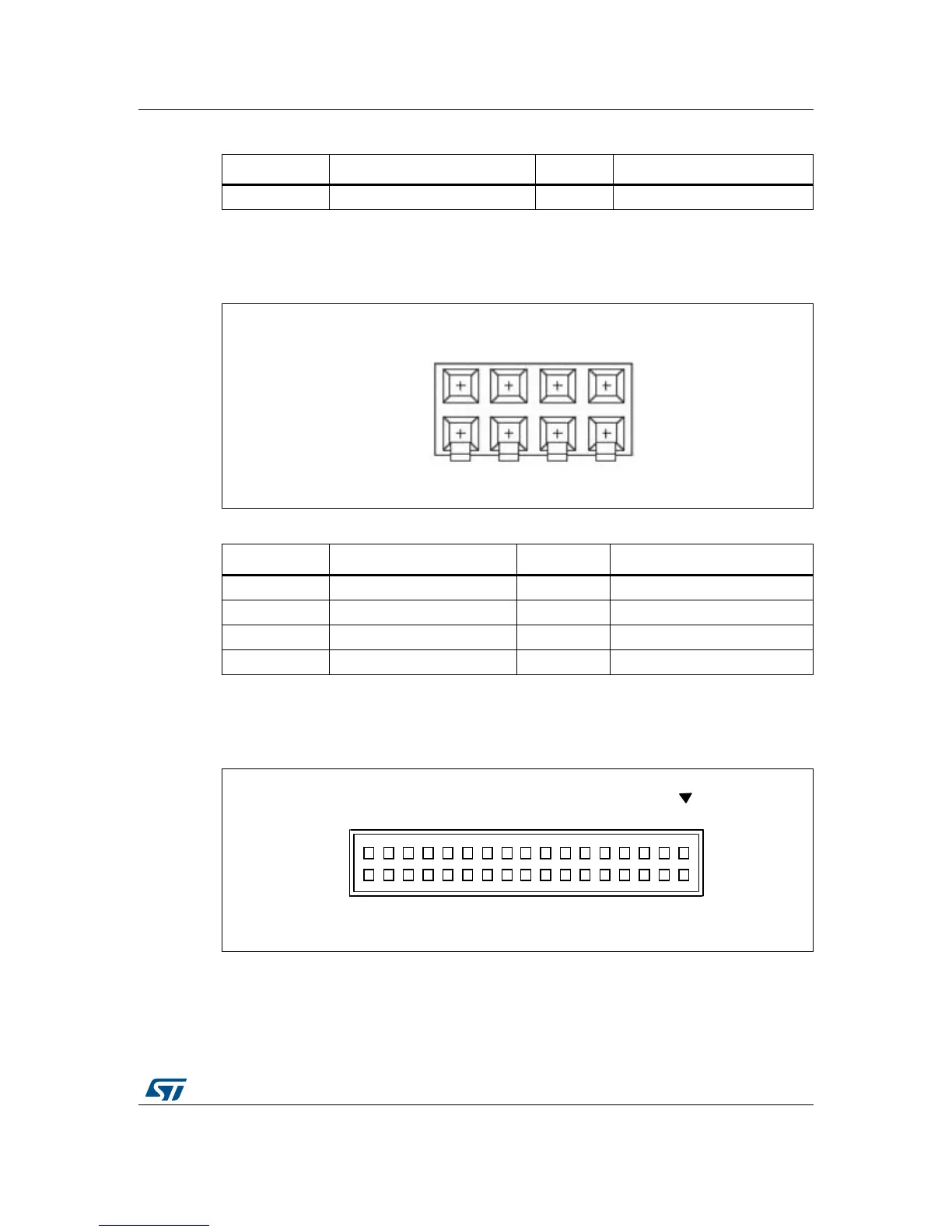

DocID027351 Rev 3 69/100

UM1855 Connectors

3.11 RF-EEPROM daughterboard connector CN3

Figure 27. RF EEPROM daughterboard connector CN3 (front view)

3.12 Motor control connector CN2

Figure 28. Motor control connector CN2 (top view)

Table 40. Analog input-output connector CN8

Terminal Function / MCU port Terminal Function / MCU port

1 GND 2 analog input-output PA4

Table 41. RF-EEPROM daughterboard connector CN3

Terminal Terminal name (MCU port) Terminal Terminal name (MCU port)

1 I2C_SDA (PG13) 5 +3V3

2NC6NC

3 I2C_SCL (PG14) 7 GND

4 EXT_RESET(PC6) 8 +5 V

069





-36



 




