STMicroelectronics STM32L476G-EVAL - CAN D-Sub Male Connector CN5; Figure 30. CAN D-Sub (DE-9 M) 9-Pole Male Connector CN5 (Front View); Figure 31. NFC Female Connector CN13 (Top View); NFC Connector CN13

DocID027351 Rev 3 71/100
UM1855 Connectors
99

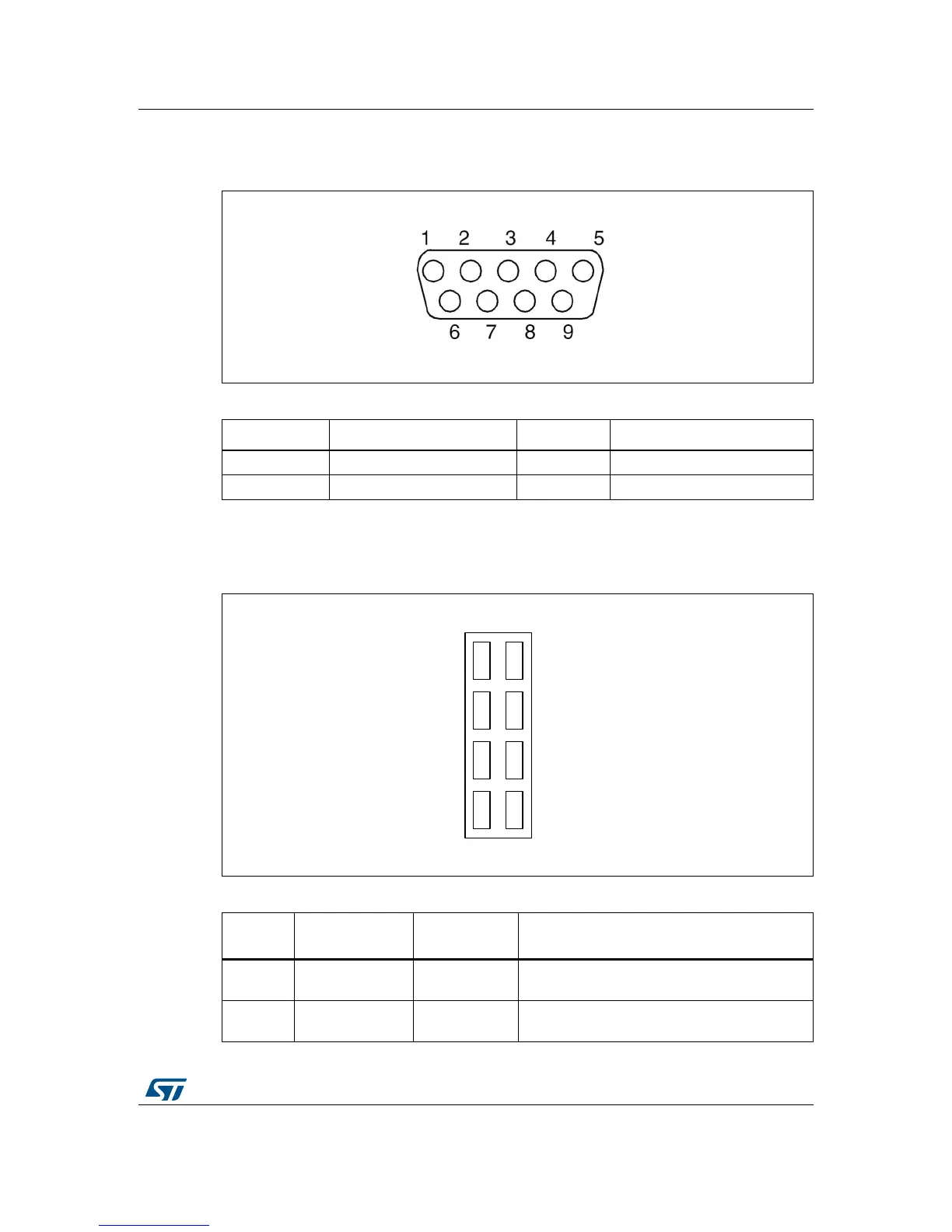

3.14 CAN D-sub male connector CN5
Figure 30. CAN D-sub (DE-9M) 9-pole male connector CN5 (front view)
3.15 NFC connector CN13
Figure 31. NFC female connector CN13 (top view)
Table 44. CAN D-sub (DE-9M) 9-pins male connector CN5
Terminal Terminal name Terminal Terminal name
1,4,8,9 NC 7 CANH
2 CANL 3,5,6 GND
-36
Table 45. NFC CN13 terminal assignment
CN13
terminal
NFC signal MCU port Description
1
NFC_IRQOUTN or
UART_TX
PB7
Interrupt output for NFC
Connected to STM32L476ZGT6 UART RX
2
NFC_IRQINN or
UART_RX
PB6
Interrupt input for CR95HF
Connected to STM32L476ZGT6 UART TX
