UM1855 Schematic diagrams
DocID027351 Rev 3 85/100

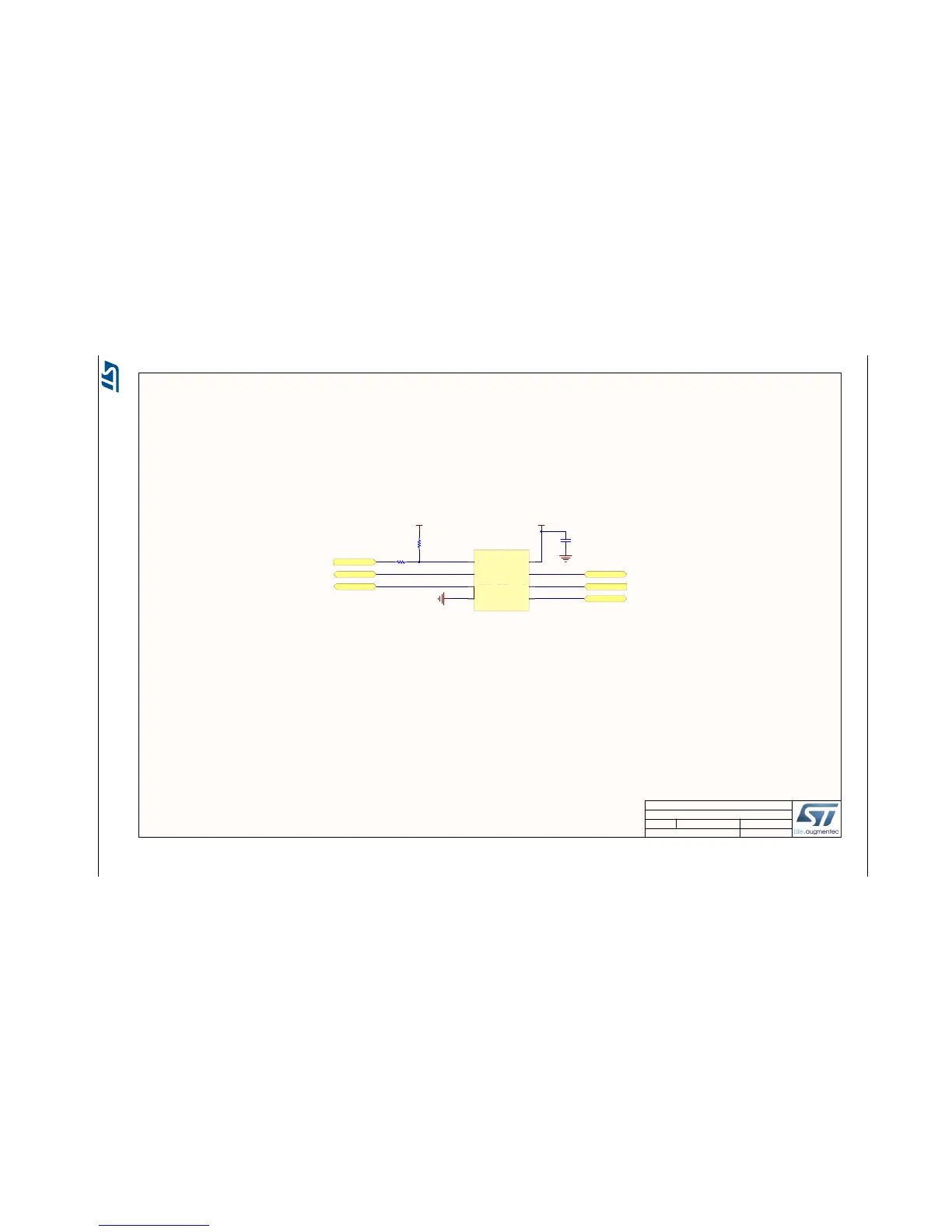

Figure 44. Quad-SPI Flash memory device schematic diagram
13 25
QSPI
MB1144 B-02
6/24/2015
Title:
Size: Reference:
Date: Sheet: of
A4
Revision:
STM32L476G-EVAL
Project:
VDD
Quad SPI Memory
QSPI_D0
QSPI_D3
QSPI_D2
QSPI_D1
GND
PB1
PB0
PA7
PA6
QSPI_CLK
PB10
QSPI_CS
R71
0
VDD
R74
10K
PB11
C44
100nF
GND
MICRON
Operating range: 2.7<VDD<3.6V
HOLD#/DQ3
7
VCC
8
S#
1
DQ1
2
C
6
DQ0
5
Vss
4
W#/Vpp/DQ2
3
H
OLD#/D
Q
3
VCC
S
#
DQ
1
C
D
Q0
V
s
s
W#/V
pp
/DQ2
U9
N25Q256A13EF840E
