STMicroelectronics STM32L476G-EVAL - Figure 47. CAN Transceiver Schematic Diagram

Schematic diagrams UM1855 88/100 DocID027351 Rev 3

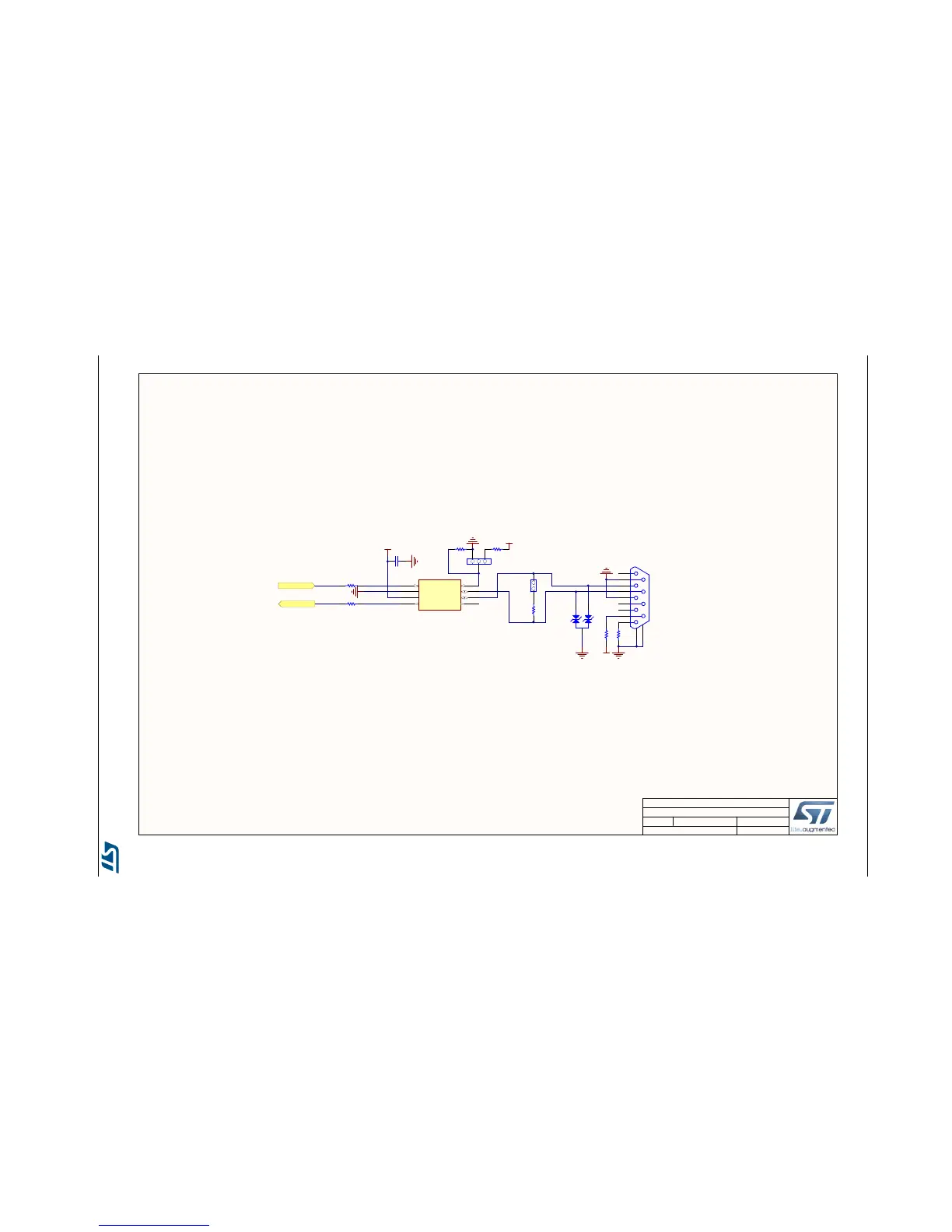

Figure 47. CAN transceiver schematic diagram
16 25
CAN
MB1144 B-02
6/24/2015
Title:
Size: Reference:
Date: Sheet: of
A4
Revision:
STM32L476G-EVAL
Project:
D
1
GND
2
VCC
3
R
4
Vref
5
CANL
6
CANH
7
RS
8
U8
SN65HVD230
+3V3
VDD
R55
120
JP6
Header 2X1
3
2
1
JP4
R45
10K
VDD
C49
100nF
R46
0
R77
0
R70
[N/A]
Default setting: 1<->2
Default setting: Open
1
6
2
7
3
8
4
9
5
CN5
DB9-male
PB9
PB8
CAN_TX
R76 0
CAN_RX
R75 0
3
1 2
D2
ESDCAN24-2BLY
Optional
Operating voltage range: 3.0<VDD<3.6V
