Hardware layout and configuration UM1855
34/100 DocID027351 Rev 3

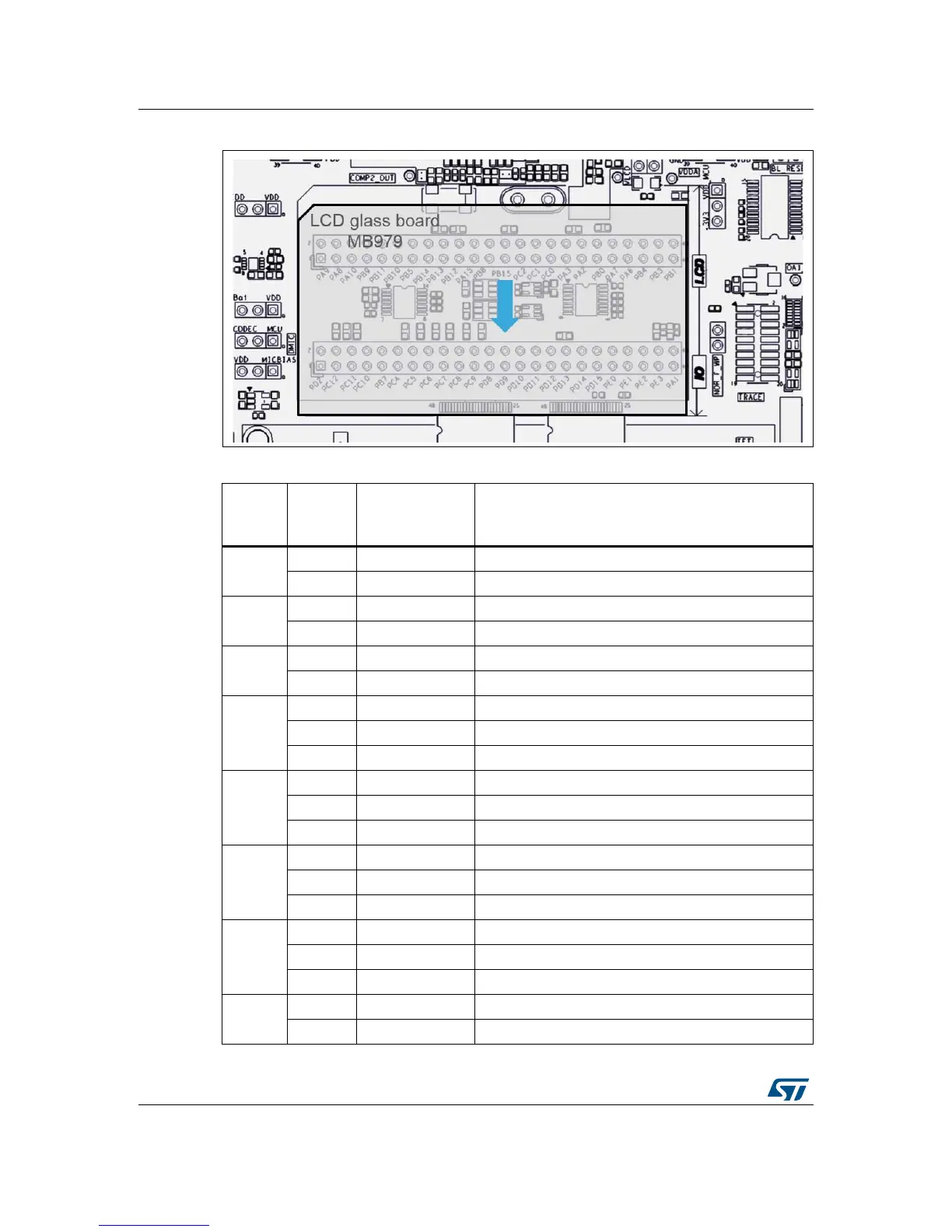

Figure 10. LCD glass module daughterboard in I/O-bridge position
Table 14. LCD-daughterboard-related configuration elements
LCD
segment
Element
Setting to enable
LCD glass
module
Description
SEG0
R82 In PA1 routed to LCDSEG0
SB32 Open PA1 not routed to motor control
SEG1
R81 In PA2 routed to LCDSEG1
SB31 Open PA2 not routed to motor control
SEG2
R78 In PA3 routed to LCDSEG2
SB22 Open PA3 not routed to motor control
SEG3
R68 In PA6 routed to LCDSEG3
SB21 Open PA6 not routed to Quad-SPI Flash memory device
SB20 Open PA6 not routed to motor control
SEG4
R66 In PA7 routed to LCDSEG4
SB18 Open PA7 not routed to Quad-SPI Flash memory device
SB19 Open PA7 not routed to motor control
SEG5
R62 In PB0 routed to LCDSEG5
SB14 Open PB0 not routed to Quad-SPI Flash memory device
SB15 Open PB0 not routed to motor control
SEG6
R56 In PB1 routed to LCDSEG6
SB12 Open PB1 not routed to Quad-SPI Flash memory device
SB13 Open PB1 not routed to motor control
SEG10
R50 In PB10 routed to LCDSEG10
SB9 Open PB10 not routed to Quad-SPI Flash memory device
