Stober SD6 - PN6: Sockets X200, X201

ID 442710.00 11WE KEEP THINGS MOVING
Electrical installation
4
Operation manual PROFINET

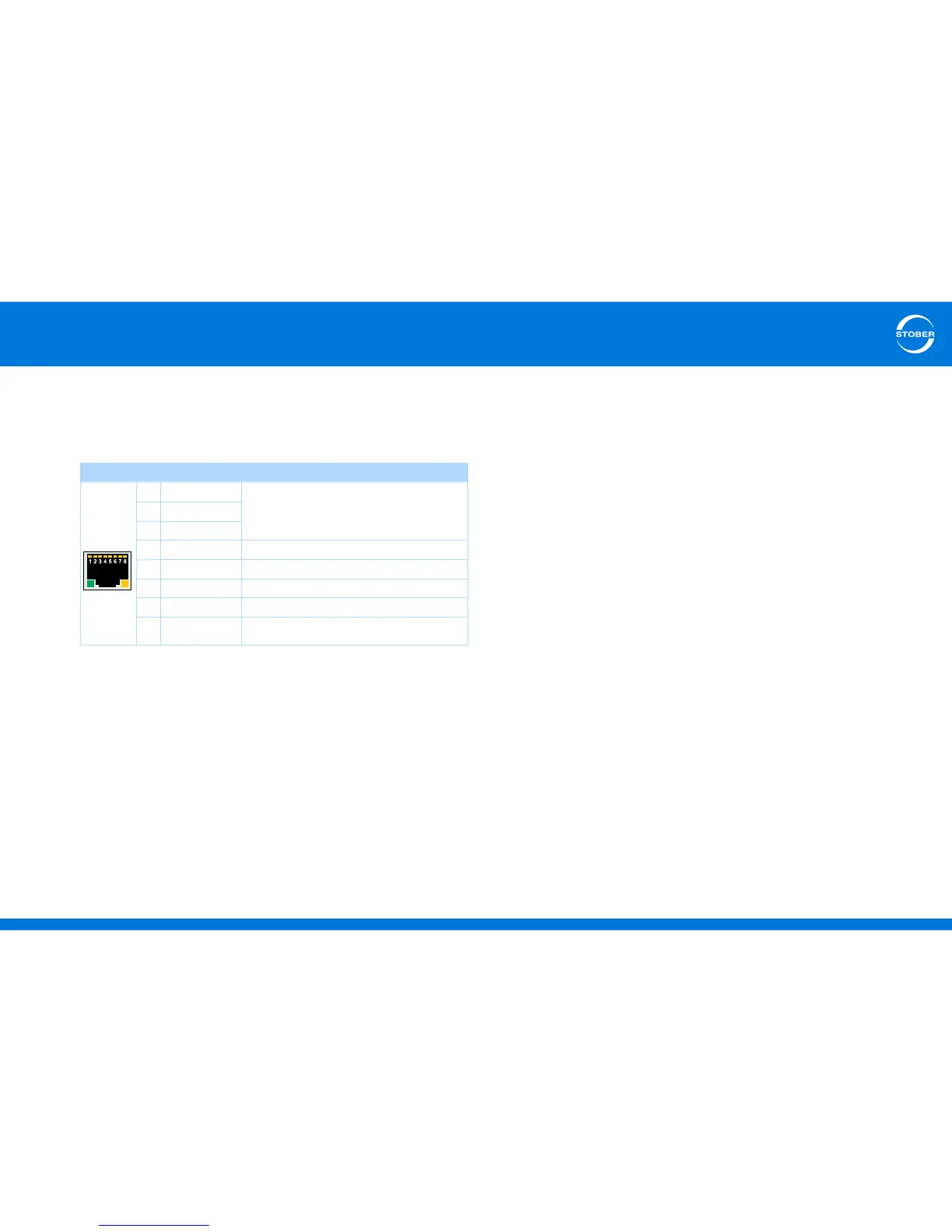

4.2.2 PN6: Sockets X200, X201
Each drive controller has both the X200 and X201 RJ-45 sockets.
The associated pin assignment and color coding complies with the EIA/TIA-
T568B standard.
Pin Designation Function
1Tx+
Communication2Tx-
3Rx+
4— —
5— —
6 Rx- Communication
7— —
8— —
