Stoll FZ - Service Instructions for Front Loader Locking Mechanism

B58FZS 0000000078 EN 002 102
SERVICING
8.2.3 Service instructions for front loader locking mechanism
Checking the FS and FZ 8 to 50 front loader locking mechanism
Checking the front loader locking mechanism:
(1) Completely open the front loader locking
mechanism.
(2) Close the front loader locking mechanism.
 Use the required manual force as soon as
the tensioning begins in the pivot point.
 Move the lever all the way down.
 When the front loader locking mechanism
is closed, the lever does not rattle.
(3) If necessary, readjust the front loader locking
mechanism (see 5.4.1 Adjusting the FS and
FZ 8 to 50 front loader locking mechanism).
 The front loader locking mechanism has
been checked.
Checking the "Double locking mechanism" FZ 50 to 100 front loader locking mechanism
Checking the front loader locking mechanism:
(1) Close the front loader locking mechanism.
 Push the lever down.

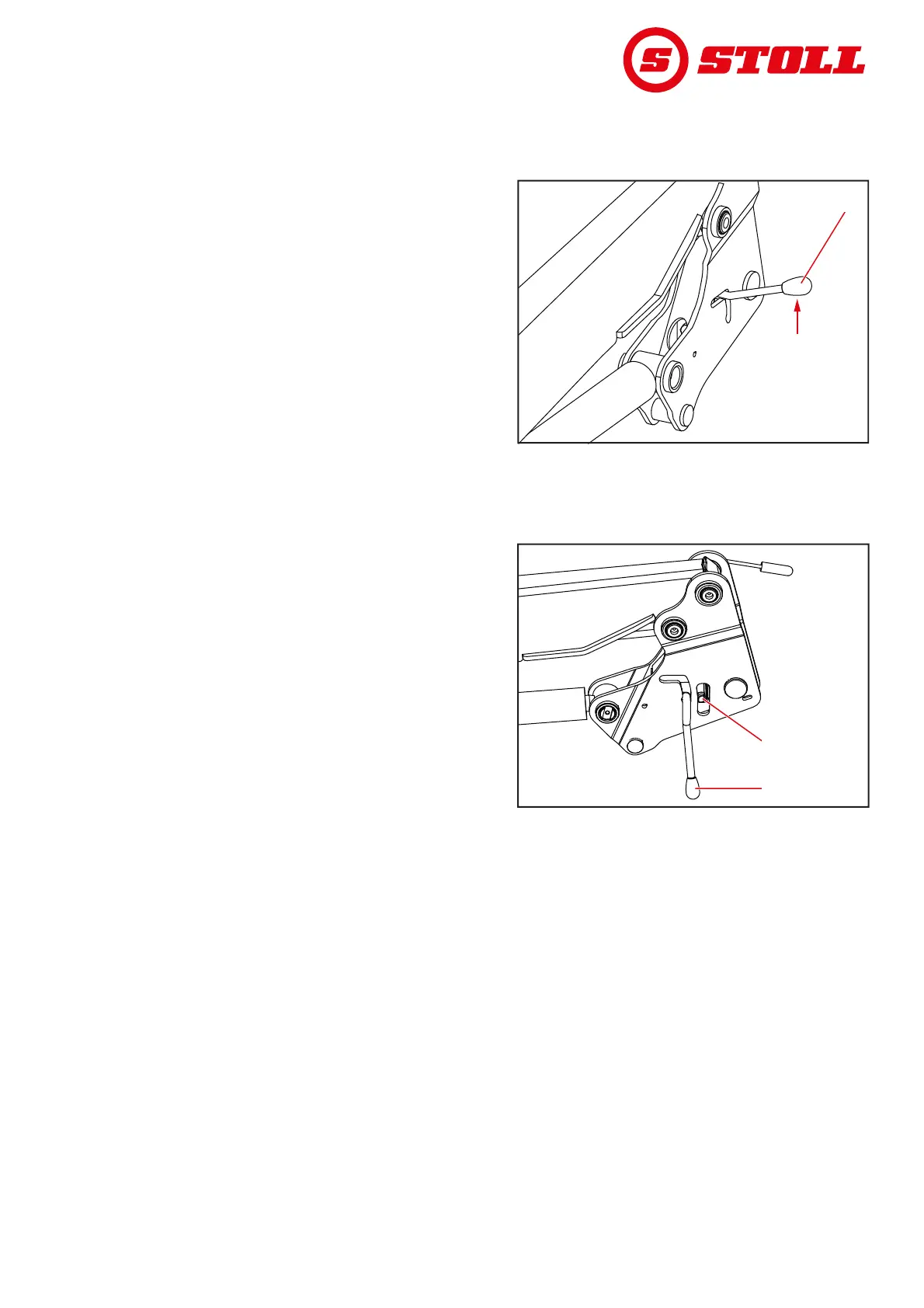

Fig. 94 Checking the front loader locking mechanism
1 Lever
11
B06B
Fig. 95 Checking the front loader locking mechanism
Legend
1 Turning lock
2 Lever
11
22
B07W
