Stoll FZ - Lifting Arm Float Position; Implement Float Position

B58FZS 0000000078 EN 002 44
FUNCTIONS
4.3.1 Lifting arm float position
For the float position of the lifting arms, the
hydraulic cylinders are depressurized, i.e., they
are open towards the tank. The front loader lies
on the ground through the pressure of its own
weight.
Activating the lifting arm float position:
(1) Fully lower the front loader.
(2) Move the operating lever all the way to the
front until it engages (see 6.1 Operating
elements).
 The float position is activated.
4.3.2 Implement float position
For the implement float position, the front loader must be equipped with Hydac valves as well as parallel
motion and must have a STOLL Pro Control operating element.
The float position for the implement must be explicitly activated in STOLL Pro Control during the
installation.
Activating the implement float position:
(1) Lower the front loader close to the ground.
(2) Move the operating lever to the right and press button T2 (green) (see 6.1.4 STOLL Pro Control).
 The float position is activated.

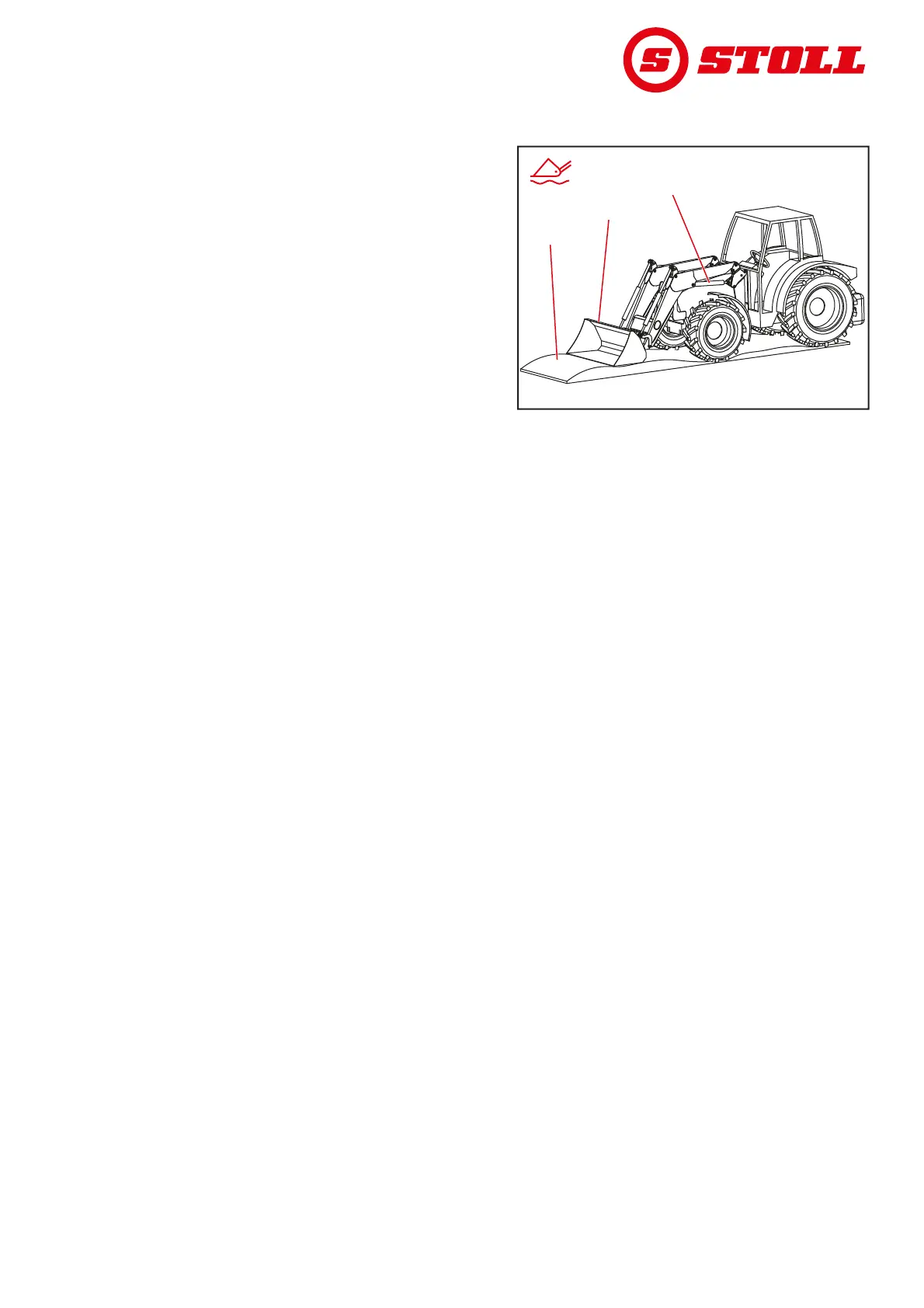

Fig. 27 Front loader in float position
Legend
1 Hydraulic cylinder
2 Implement
3Ground
