OPERATION
6.4.2 Operating the mechanical implement locking mechanism on skid-steer change frames
⚠ WARNING
Risk of injury due to implements falling down!
The implement may fall down if the implement locking mechanism is open or not locked correctly.
This can cause serious injury to persons standing in the surrounding area.
Only actuate the implement locking mechanism when the implement is set down on the ground or
on a secure rack.
Always check that the implement is correctly locked.
⚠ CAUTION
Risk of crushing due to spring tension!
There is spring tension on the handle of the implement locking mechanism, which closes the locking
mechanism when the handle is lifted. Improper use can lead to injury to hands and fingers.
Always operate the handle with one hand and grab it in the middle.
Opening the implement locking mechanism:
(1) Swivel the handle on both sides downwards.
The implement locking mechanism is open.
Closing the implement locking mechanism:
(1) Swivel the handle on both sides upwards.
The implement locking mechanism is closed.
Check the implement locking mechanism:
(1) Check that both hooks engage correctly on
the implement.
The implement locking mechanism is
checked.

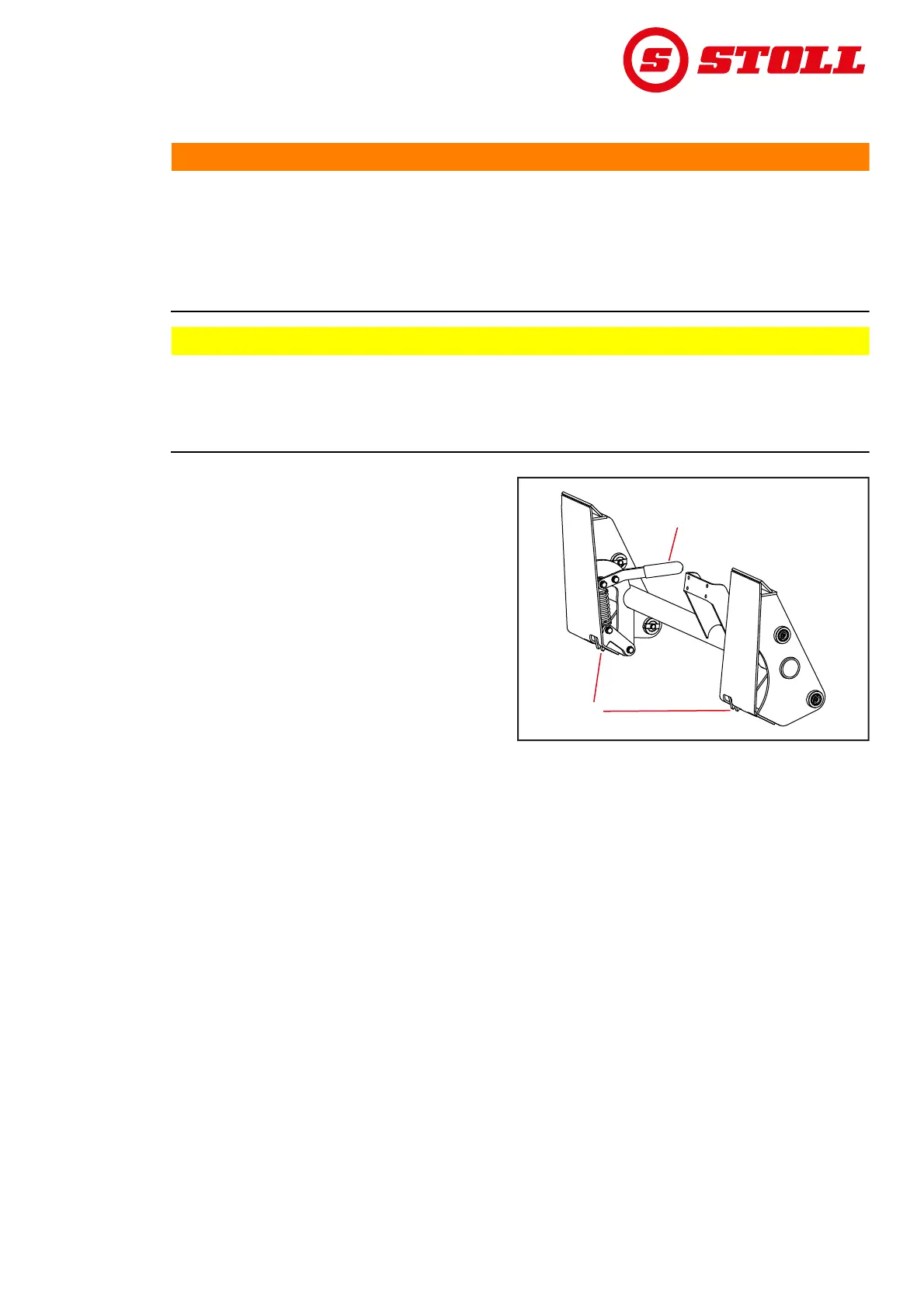

Fig. 70 Implement locking mechanism on skid-steer
change frames
Legend
1 Handle
2 Hook
