SAFETY
2.10 Adhesive safety label
Safety stickers warn of hazards at danger points and are an important part of the safety equipment of
the front loader.
 Clean safety stickers if they are soiled.
 Replace damaged or illegible safety stickers (see 10.1 Spare parts).
 If necessary, equip new spare parts with the corresponding safety stickers.

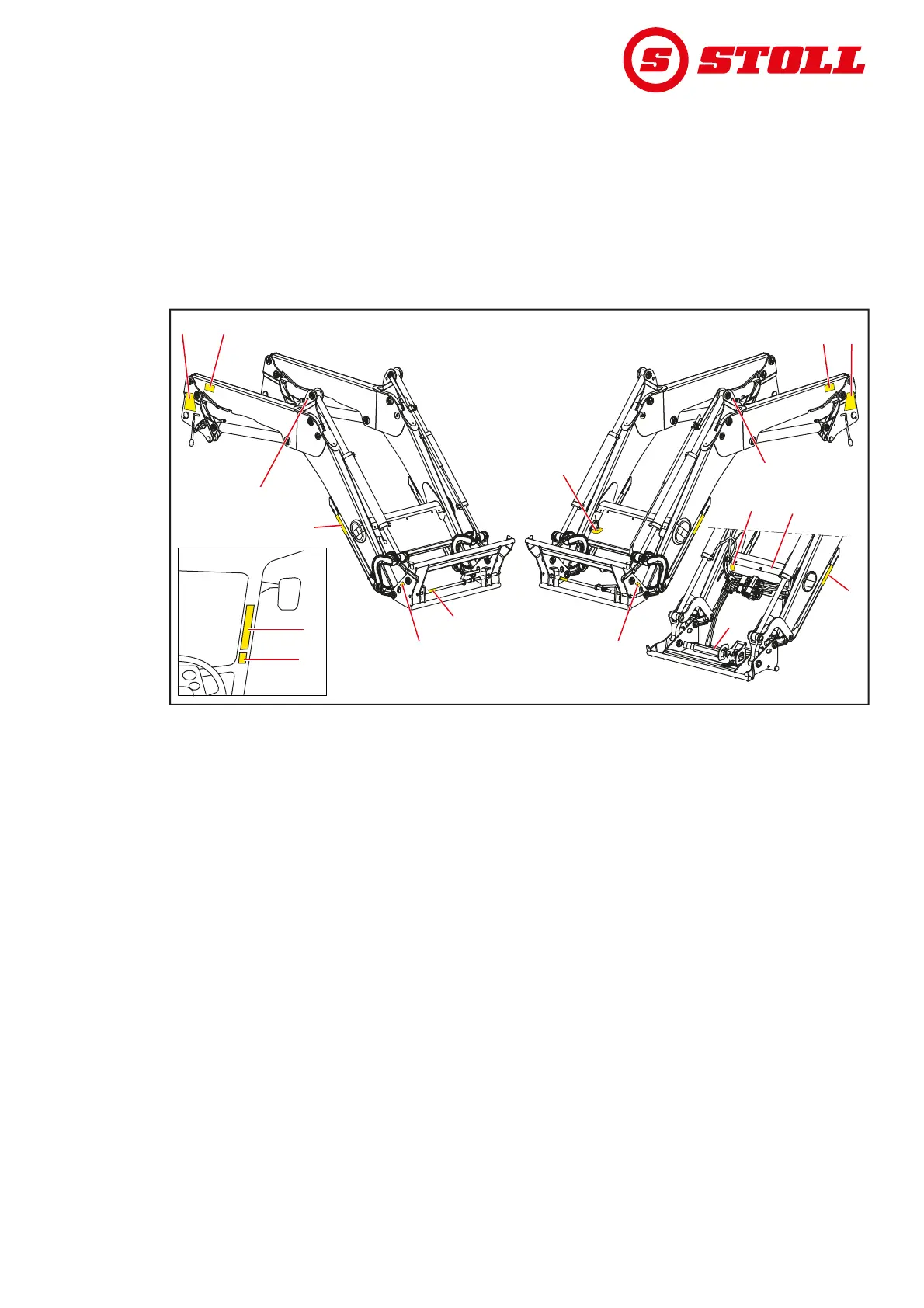

Position of the safety sticker on the front loader
Fig. 4 Front loader FZ (exemplary figure)
Legend
1 Safety instructions on the left pillar
2 Safety instructions in the tractor driver's cab
3 Safety instructions on the left and right lifting arm
4 Safety instructions on the right parking support
5 Safety instructions on the left parking support
6 Mounting and dismounting instructions for the front loader on the right pillar
7 Information on the operation of Comfort-Drive on the cross tube
8 Information for crane transport above, below or next to the hole for the hook
(on the deviation triangle on FZ front loaders, on the frame on FS front loaders)
9 Sticker for safe manual implement locking, on the locking plug
10 Safety instructions for hydraulic implement locking, in the driver's cab (optional)
11 Safety instructions for hydraulic implement locking, on the cover plate (optional)
12 Safety instructions for pressure oil under the casing on the cross tube (optional)
13 Safety instruction for pressure accumulator on the accumulator on the cross tube (optional)
14 Safety instructions for working zone of the front loader lifting arm on the left and right of the change frame
1010
22
1
133
3
3
4
4
5
5
6
6
7
7
8
8
8
8
12
12
9
9
11
11
B06S
1313
1414 1414
