OPERATION
6.2 Operating the parking supports
⚠ CAUTION
Risk of crushing by swivelling components!
When folding the parking supports, limbs can be crushed.
 When folding the parking supports, do not reach between them and the lifting arm bar.
The parking supports serve to safely put down the front loader. Locking struts allow adaptations to be
made for putting down the front loader with different implements as well as on different surfaces.
Unfolding the parking support:
(1) Press on the latch to unhook.
(2) Fold the parking support down to the ground.
(3) Check if the locking strut engaged in the
latching section.
 The parking support is unfolded.
Folding in the parking support:
(1) Raise and hold the locking strut against the
spring tension.
(2) Carefully raise the parking support until the
tip of the locking strut is no longer in the
latching section.
(3) Release the locking strut.
(4) Fold the parking support with some
momentum all way up, so that the latch
hooks on.
 The parking support is folded up.

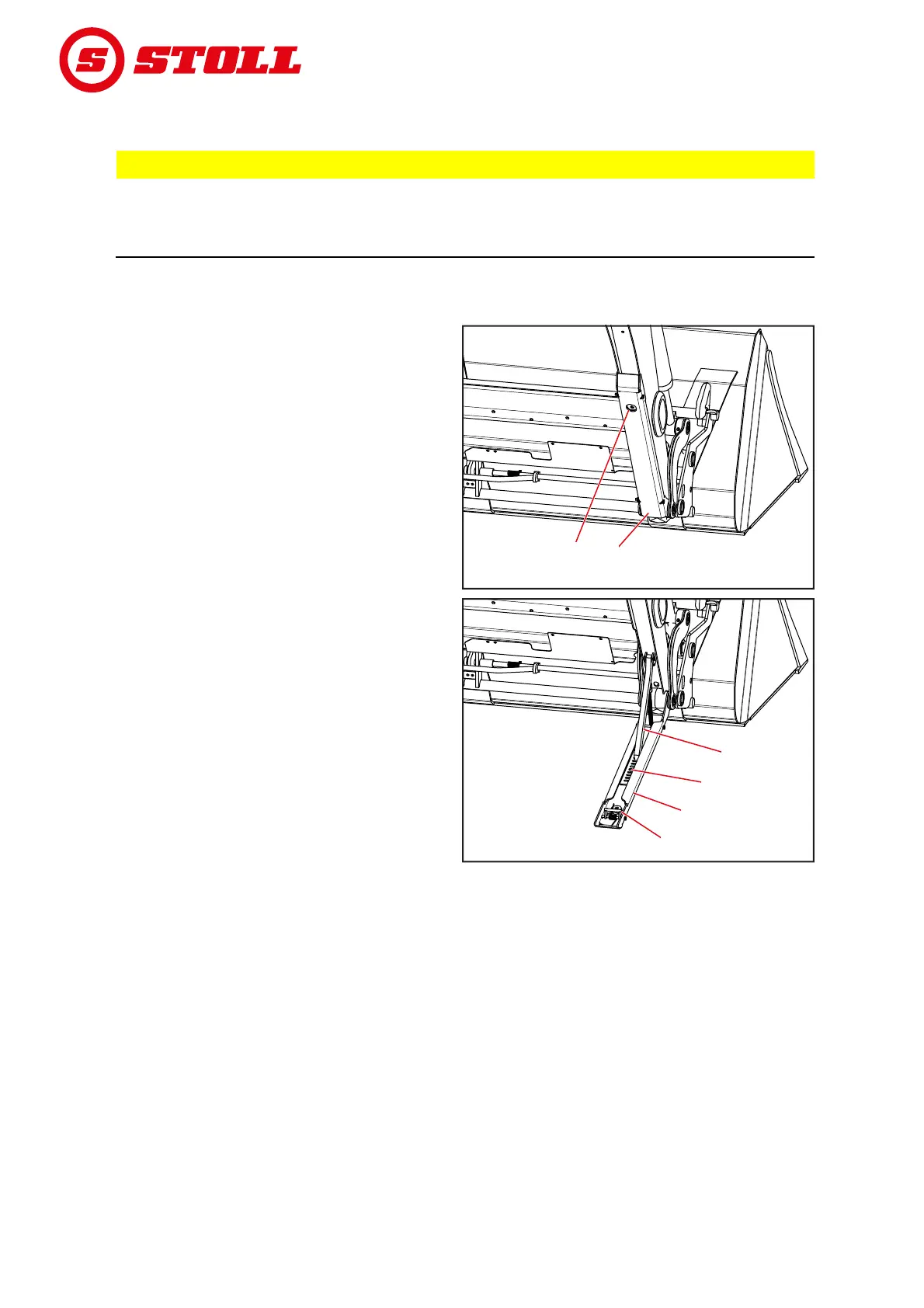

Fig. 64 Parking support
Legend
1Latch
2 Parking support
3 Latching section
4 Locking strut
