STRUCTURE
3.6 Hydraulic lines
⚠ CAUTION
There is a risk of injury due to escaping hydraulic fluids!
If the hydraulic lines are not depressurized before the coupling procedures, oil can spray out and injure
the skin or other body parts (e.g. eyes).
Always depressurize the hydraulic system before any coupling procedures.
Clean the couplings on a regular basis.
The tractor and front loader are connected with
4 hydraulic lines, which can be found in the right
pillar of the front loader.
3.7 Hydraulic couplings
3.7.1 Plug-in couplings
The plugs of the plug-in couplings are located on
the hydraulic lines of the front loader.
The couplings can be found on the right-side
mounting part for the tractor. They are connected
to the hydraulic valve either directly or with hose
lines.
Plugs and couplings are equipped with coloured
caps to facilitate assignment.
Promptly replace damaged or missing
labels (e.g. caps).

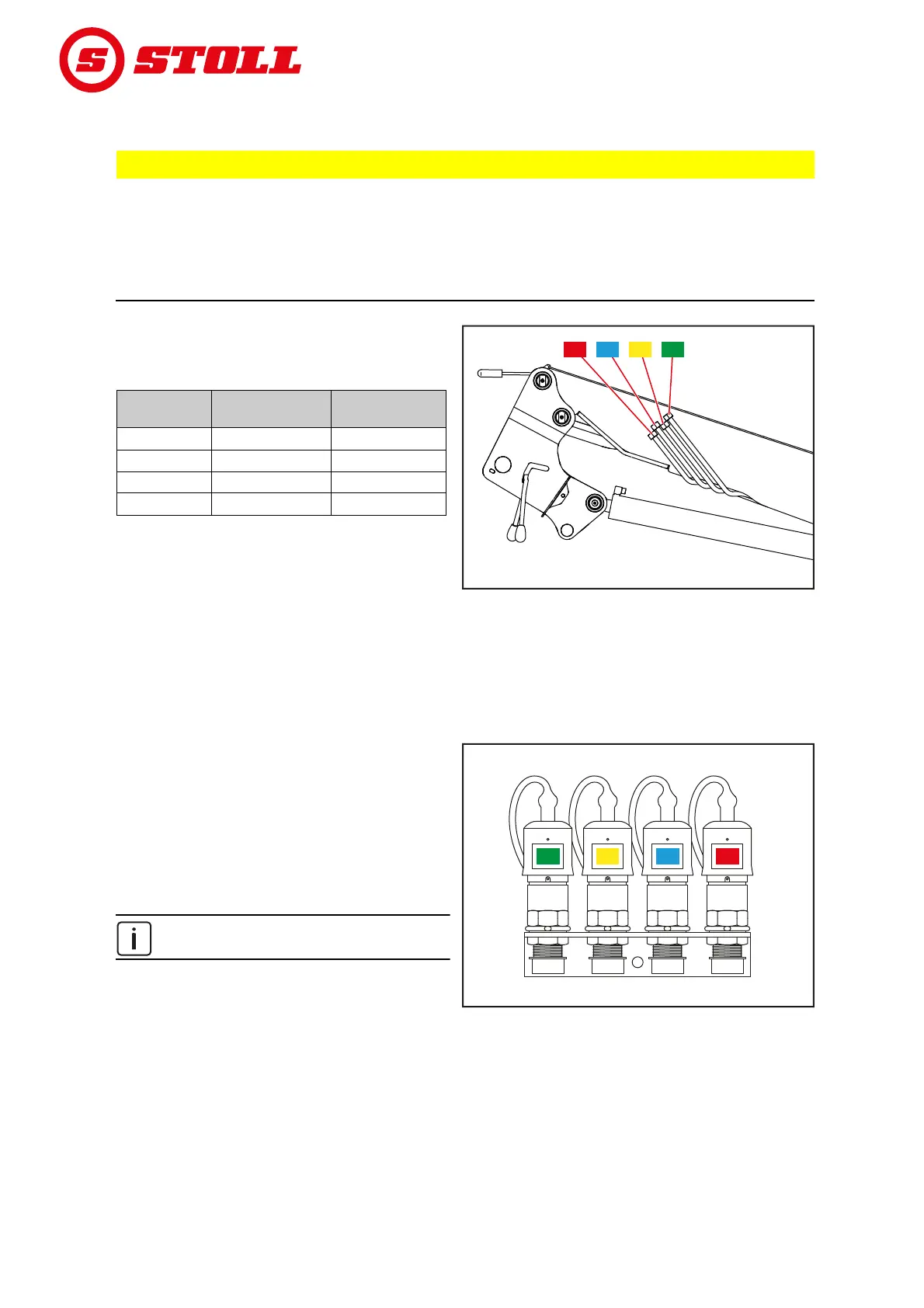

Fig. 17 Hydraulic lines
B2B2 A2A2 A1A1 B1B1
B061
A2A2 A1
A1 B1B1B2B2
Hydraulic line Colour of the
protective cap
Description
A1 yellow Lifting function
A2 blue Scooping function
B1 green Lowering function
B2 red Dumping function
Fig. 18 Plug-in couplings connected
B062
A2A2A1A1B1B1 B2B2
