SAFETY
2.8 Danger zones
On and around the front loader, there are the following areas with increased risk to safety of the operator
or safety of other persons:

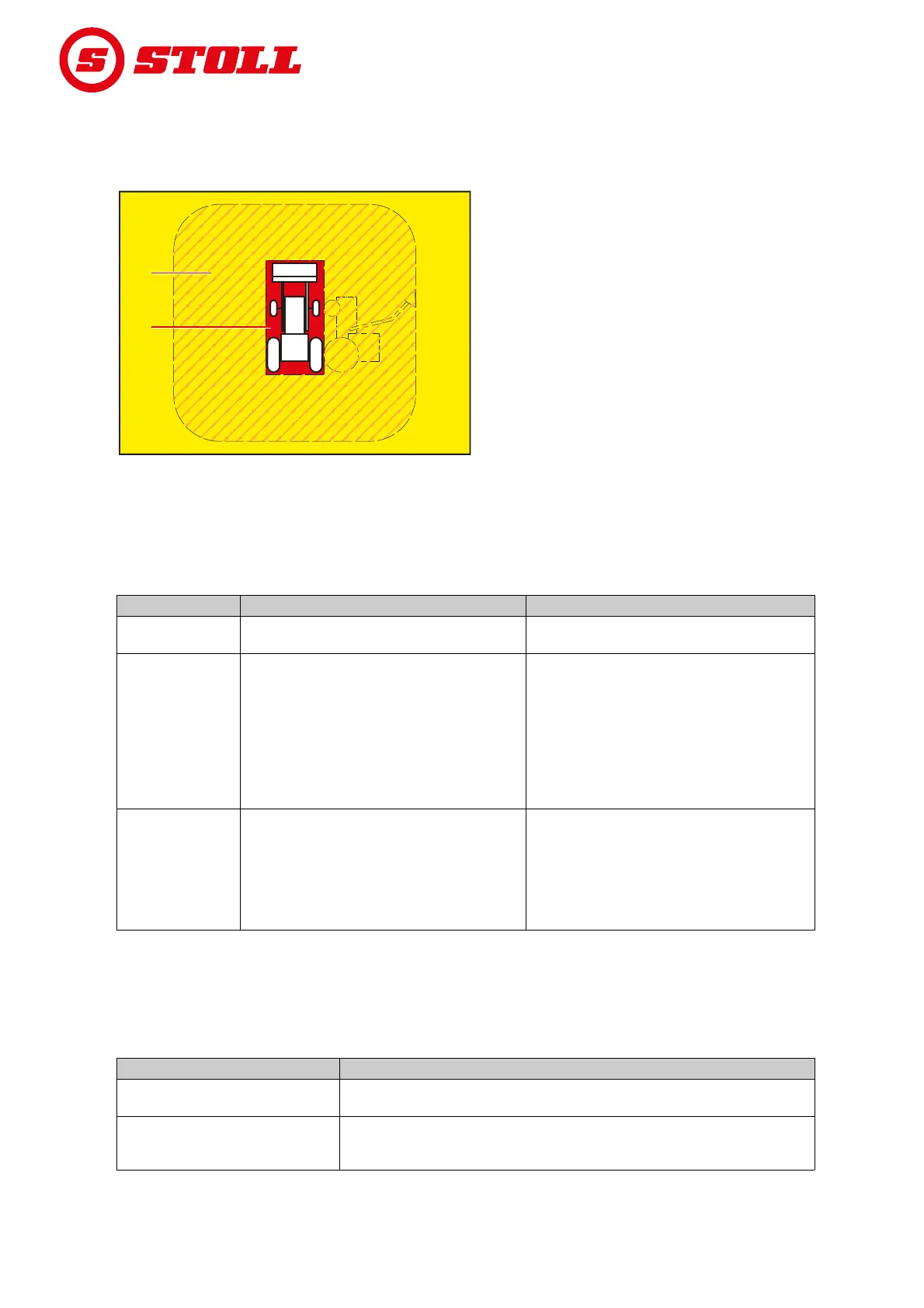

Fig. 3 Top view (from above)
Legend
1 Work area (yellow)
2 Outer danger zones (hatched in orange)
3 Inner danger zones (red)
Observe the danger zones and instruct unauthorised persons out of these areas.
2.9 Safety equipment
Depending on the equipment, the front loader has the following protective and safety equipment:
Danger zone Description Danger
Work area Overall possible movement area of the tractor incl.
the front loader during loading work.
Standing in the working area represents a risk.
Outer danger zone Overall field of action of the tractor and front loader
as well as the area in which the tractor or front
loader could tip over in case of accident:
On the sides (left and right): height of the
tractor with the front loader raised as far as it
goes (incl. implement)
Front and rear: half the height of the tractor
with the front loader raised as far as it goes
(incl. implement)
When the tractor tips over or when loads fall
down, people can be seriously injured.
Inner danger zone Area on and around the tractor and front loader,
especially between the wheels of the tractor,
directly in front of and behind the tractor as well as
on and under the front loader.
Persons can be pinched in between the
wheels of the tractor.
Persons can be overseen by the tractor driver
and run over.
Moving machine parts can move
uncontrollably and thereby crush and injure
people.
Protective/safety equipment Function
Safety stickers Safety stickers warns against hazards at danger points (see 2.10 Adhesive safety
label).
Anti-lowering guard The anti-lowering guard protects against accidental lowering of the front loader during
work that requires another person in the working or danger zone of the front loader
(see 4.8 Anti-lowering guard).
