Stoll FZ - Euro-Alö3 Combi Change Frame; Euro-FR Combi Change Frame

33 B58FZS 0000000078 EN 002
STRUCTURE
3.5.4 Euro-Alö3 Combi change frame
These change frames are installed on FS and
FZ 8 to 80.1 front loaders.
They are intended for mounting implements
complying with the Euro standard as well as the
Alö3 standard.
Euro implements are hinged onto the outer pins.
Alö3 implements are hinged onto the inner pin.
The function is the same as for Euro change
frames.
3.5.5 Euro-FR Combi change frame
These change frames are installed on FS and
FZ 8 to 80.1 front loaders.
They are intended for mounting implements
complying with the Euro standard as well as the
FR standard.
For the use of FR implements, both supports
must be mounted on the outside of the change
frame and locked with linch pins. The mountings
are attached to the support when using Euro
implements.
The function is the same as for Euro change
frames.

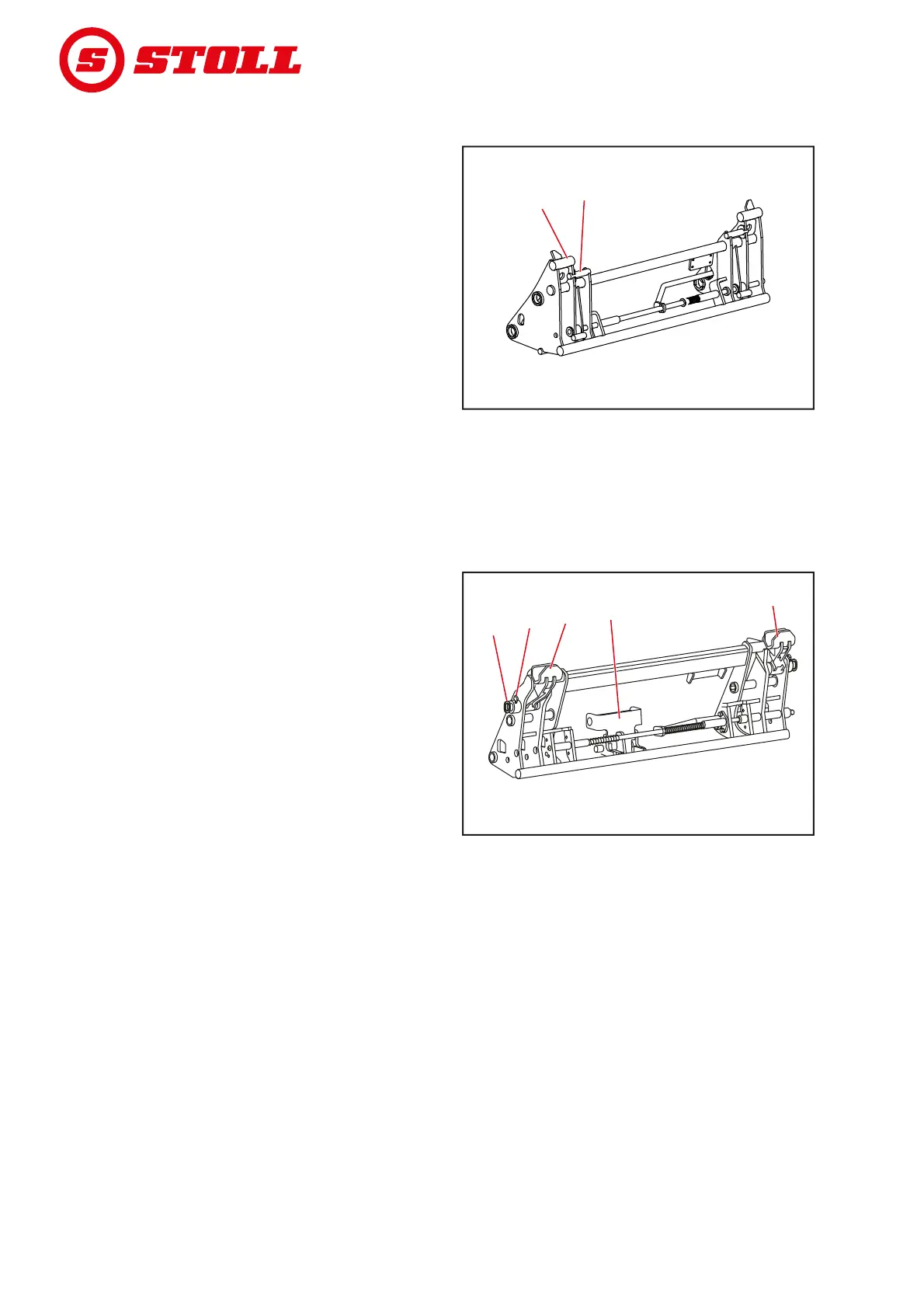

Fig. 13 Euro-Alö3 Combi change frame
Legend
1 Outer pin
2 Inner pin
B06L
11
2
2
Fig. 14 Euro-FR Combi change frame
Legend
1Pin
2Linch pin
3 Mounting
4 Support for mounting
11
22
33
44
33
B08H
