OPERATION
Operating lever with 3 buttons
Lock the operating lever in the zero position when driving on roads to prevent accidental
actuation of the front loader!
6.1.3 STOLL Base Control
The STOLL "Base Control" operating lever is a
single-lever control unit with up to 3 push-button
switches for additional functions of the front
loader and as an option, 2 micro-buttons on the
sides for tractor functions.
Moreover, the Base Control also has a locking
function, e.g. for driving on roads.
When the locking function is activated, it is
not possible to move the operating lever.
The control of the operating lever is the same as
the basic controls in 6.1.1 Basic controls with
levers.
The assignment of the buttons for the individual front loader types is shown in the following tables:
Operating lever with one button
Operating lever with 2 buttons
Button Front loader Function Additional function with
changeover switch
A FS, FZ 3rd control circuit
FS-rapid
emptying
Rapid emptying 3rd control circuit 4.6 Rapid traverse
emptying (FS) and quick
emptying (FZ-L)
FZ-L Quick emptying 3rd control circuit
B FS, FZ 4th control circuit
FZ-L Return-to-Level
C All 4th control circuit

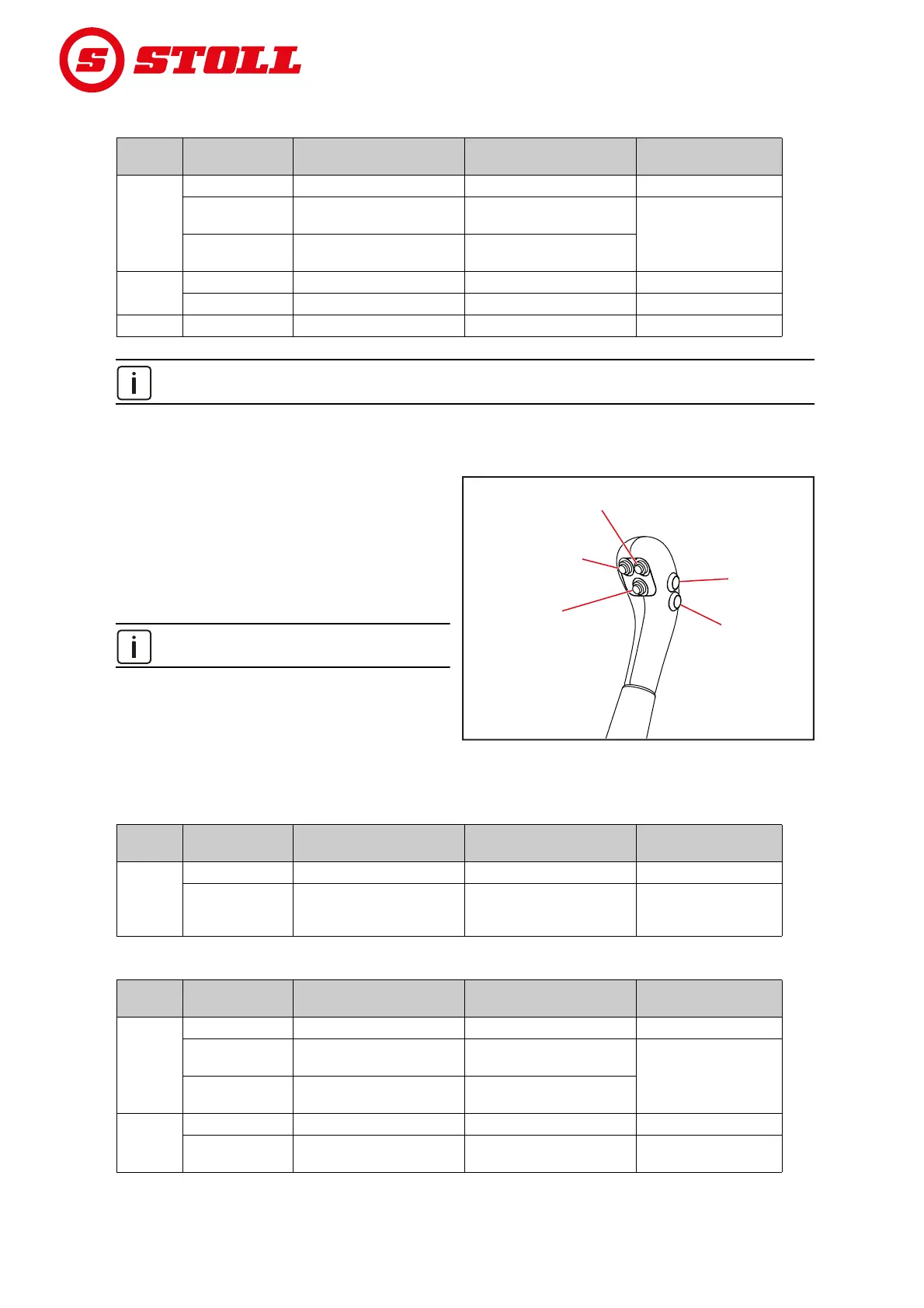

Fig. 57 Base Control with 5 buttons
DD
E
E
C
C
B
B
A
A
B00N
Button Front loader Function Additional function with
changeover switch
A FS, FZ 3rd control circuit -
FS-rapid
emptying
Rapid emptying 3rd control circuit 4.6 Rapid traverse
emptying (FS) and quick
emptying (FZ-L)
Button Front loader Function Additional function with
changeover switch
A FS, FZ 3rd control circuit -
FS-rapid
emptying
Rapid emptying 3rd control circuit 4.6 Rapid traverse
emptying (FS) and quick
emptying (FZ-L)
FZ-L Quick emptying 3rd control circuit
B FS, FZ 4th control circuit -
FZ-L Return-to-Level 4.9.1 Additional control
