OPERATION
6.5.2 Picking up implements with mechanical implement locking mechanism on skid-steer change
frames
⚠ WARNING
Risk of injury due to implements falling down!
The implement may fall down if the implement locking mechanism is open or not locked correctly. This
can cause serious injury to persons standing in the surrounding area.
 Only actuate the implement locking mechanism when the implement is set down on the ground or
on a secure rack.
 Always check that the implement is correctly locked.
⚠ CAUTION
Risk of crushing due to spring tension!
There is spring tension on the handle of the implement locking mechanism, which closes the locking
mechanism when the handle is lifted. Improper use can lead to injury to hands and fingers.
 Always operate the handle with one hand and grab it in the middle.
Mounting the implement:
(1) Open the implement locking mechanism
(see 6.4.2 Operating the mechanical
implement locking mechanism on skid-steer
change frames).
(2) Drive up close to the implement.
(3) Use the dumping function until the upper
cross bar of the change frame is positioned
under the hook of the implement.
(4) Carefully drive the tractor forwards until the
cross bar of the change frame touches the
implement.

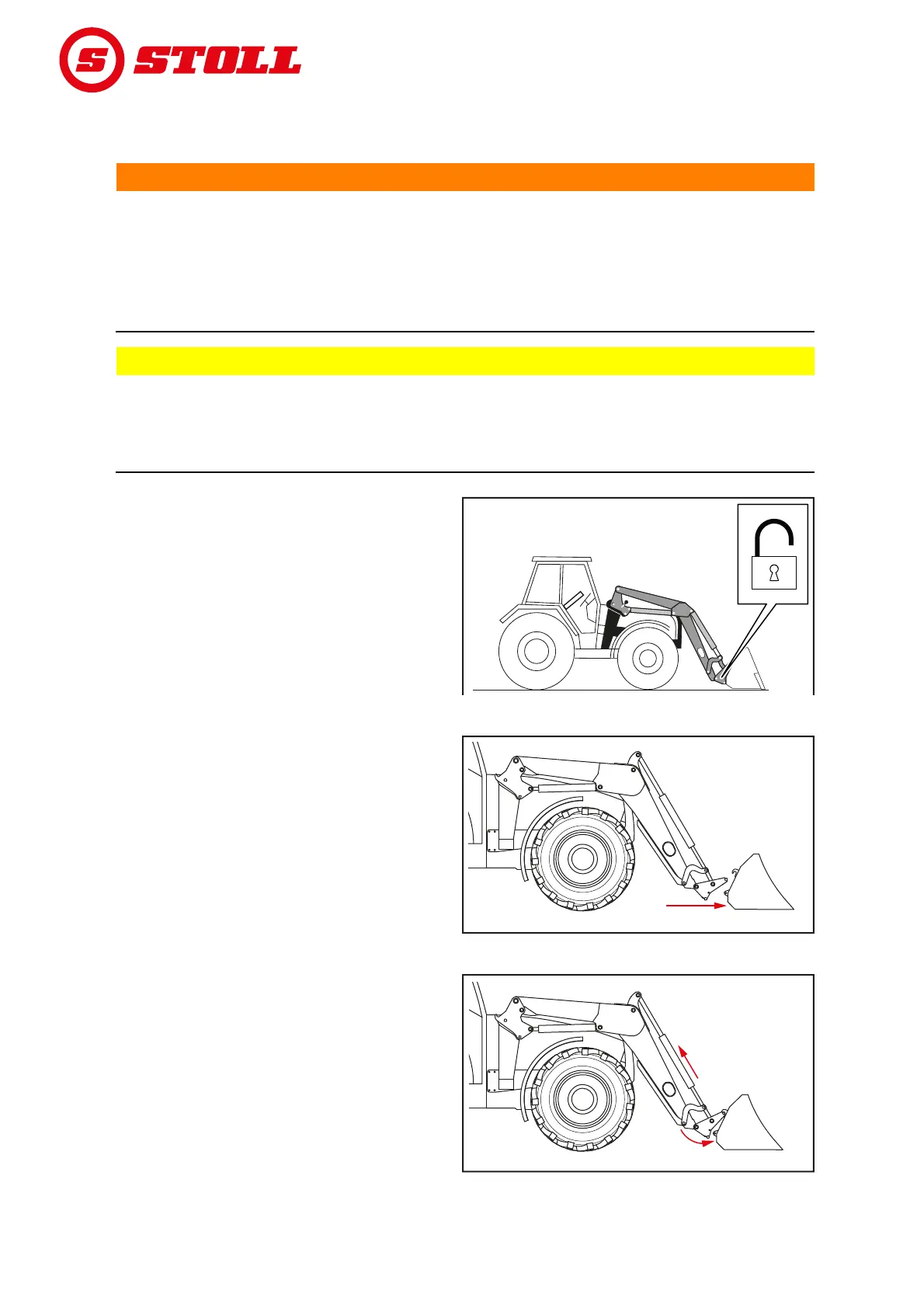

Fig. 79 Opening the implement locking mechanism
B088
Fig. 80 Driving up
B07O
Fig. 81 Hooking in
B07P
