OPERATION
(4) Carefully drive the tractor forwards until the
cross bar of the change frame touches the
implement.
(5) Use the scooping function and drive forward
a bit until the cross bar is hooked in.
 The implement locking mechanism closes
automatically.
(6) Checking the implement locking mechanism
(see 6.4.1 Operating the mechanical
implement locking mechanism on Euro,
SMS and Combi change frames).
(7) If applicable, connect the hydraulic lines of
the implement with the front loader
couplings.
 Lower the front loader until the implement
is level on the ground.
 Switch off the tractor.
 Apply the parking brake.
 Depressurize the hydraulic system.
or
With the implement function actuated,
move the operating lever in the lateral
end positions in order to depressurize the
implement hydraulic system
(see 6.1 Operating elements).
 Connect the hydraulic lines of the
implement to the couplings on the
change frame.
 The implement is mounted and ready for
operation.

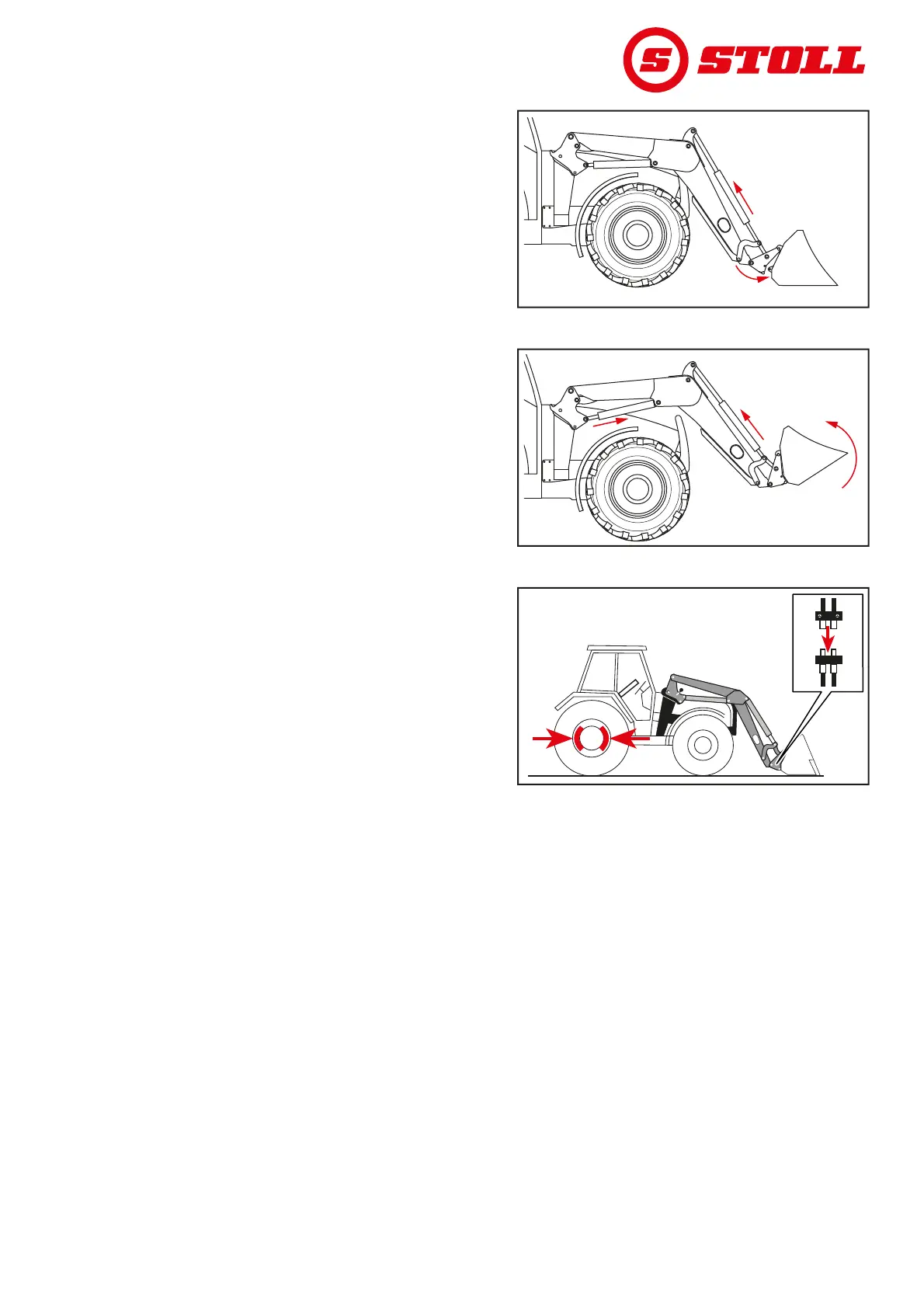

Fig. 76 Hooking in
B07P
Fig. 77 Triggering the implement locking mechanism
B07Q
Fig. 78 Connecting the hydraulic lines of the implement
to the front loader couplings
B087
