OPERATION
Check the implement locking mechanism:
Check that the tip of the arrow on the sticker
is aligned directly at the socket.
Check that the locking pins engage correctly
in the eyelets of the implement.
For implements without hydraulic functions:
Actuate the Lower front loader close to
the ground and dump function.
or
Press the implement with the tip on the
ground.
When locked correctly, the implement
remains on the change frame.
The implement locking mechanism is
checked.

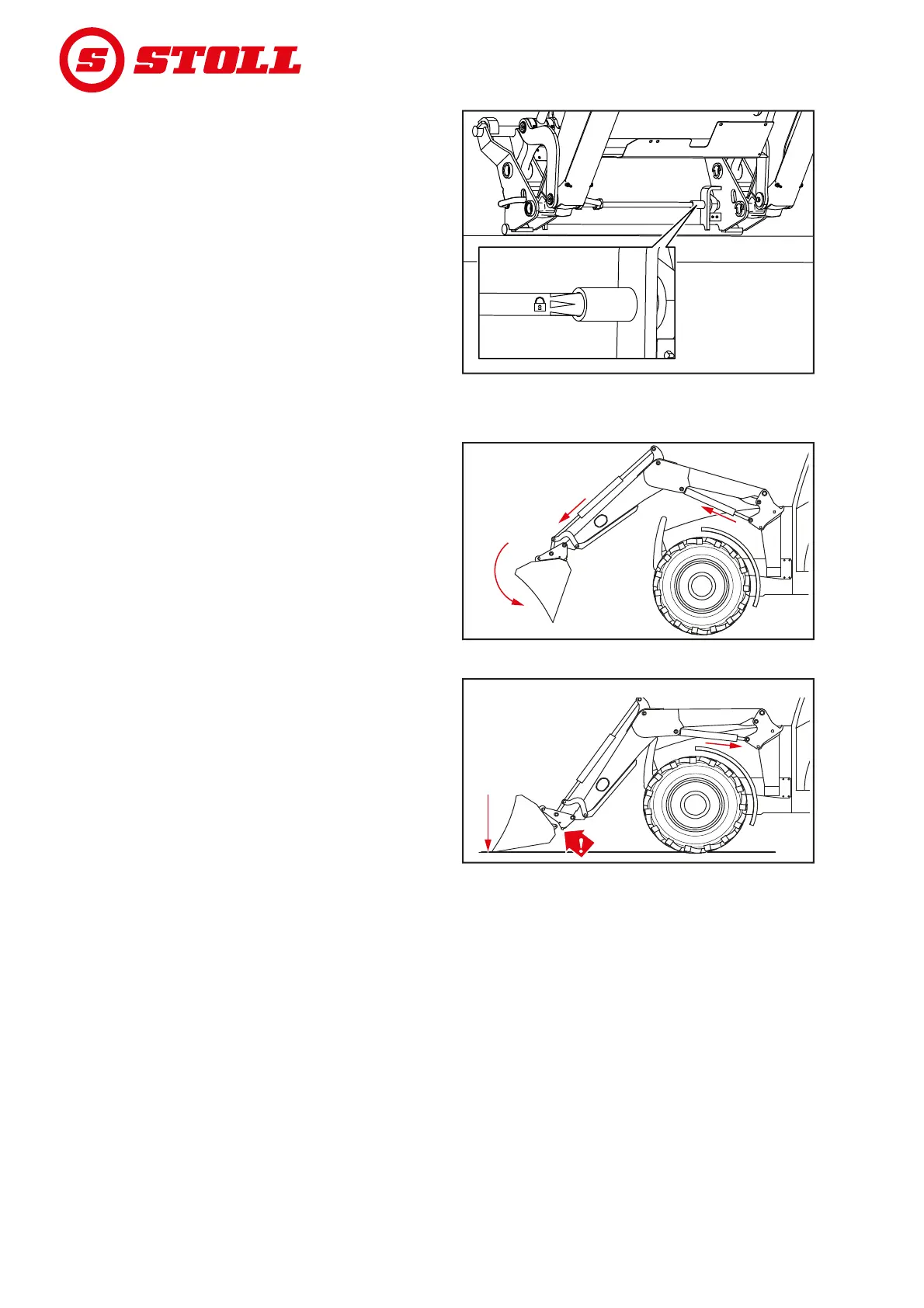

Fig. 67 Using the sticker to check the implement
locking mechanism
Fig. 68 Lowering and dumping
Fig. 69 Pressing the implement onto the ground
