System Design
1-2 Stratus ftServer 2600, 4500, and 6300 Systems: Operation and Maintenance Guide (R639)
ftServer 2600, 4500, and 6300 systems come in the following processor configurations:
• ftServer 2600 systems: single-processor
• ftServer 4500 systems: single-processor or dual-processor
• ftServer 6300 systems: dual-processor

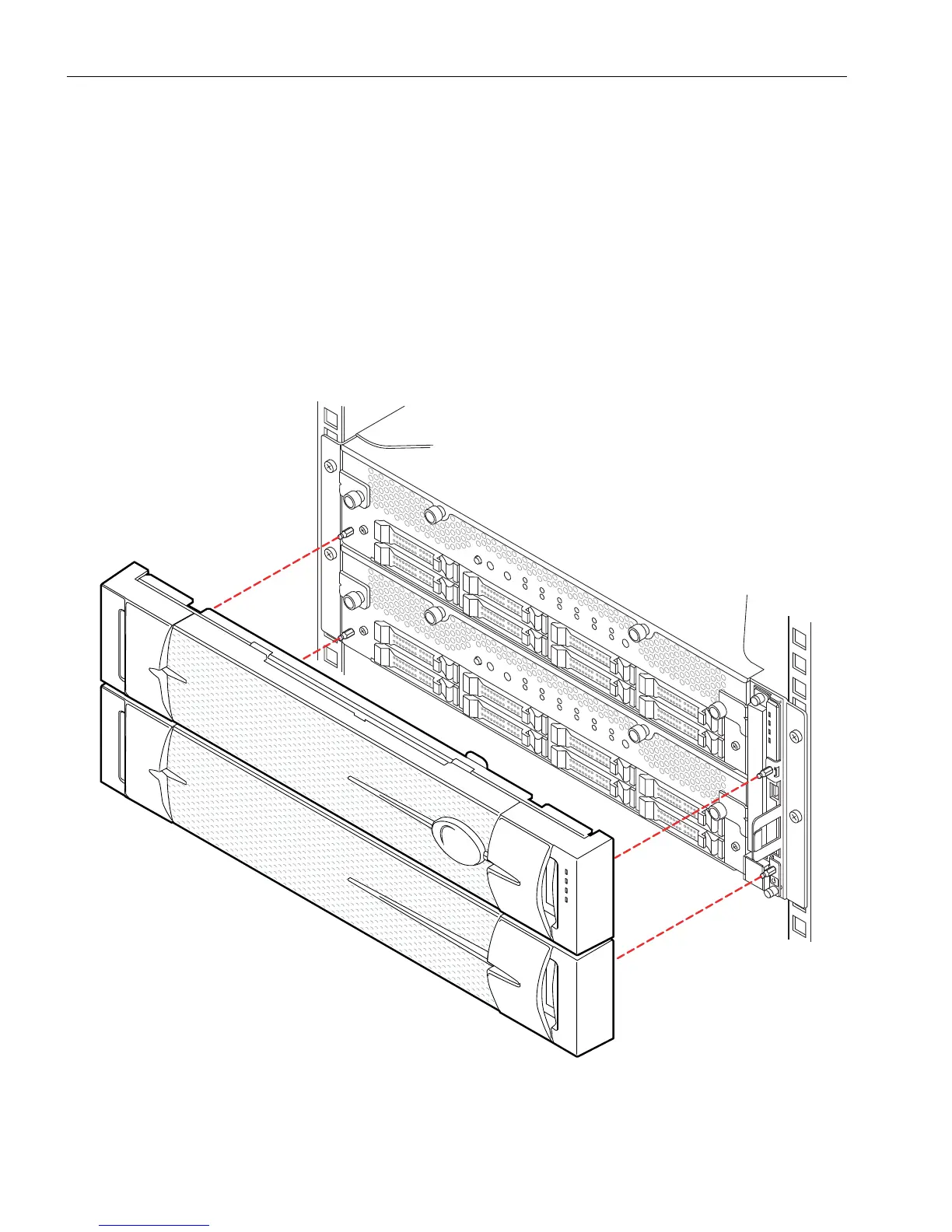

Figure 1-1 shows a front view of an ftServer 2600, 4500, or 6300 system with a bezel.
Four light pipes on the upper right side of the bezel provide a view of the system status
LEDs when the bezel is installed.
Figure 1-1. ftServer 2600, 4500, and 6300 Systems
dco003a
