Replacing a PCI Riser Assembly and Its Adapters
Installing and Replacing System Components
5-41

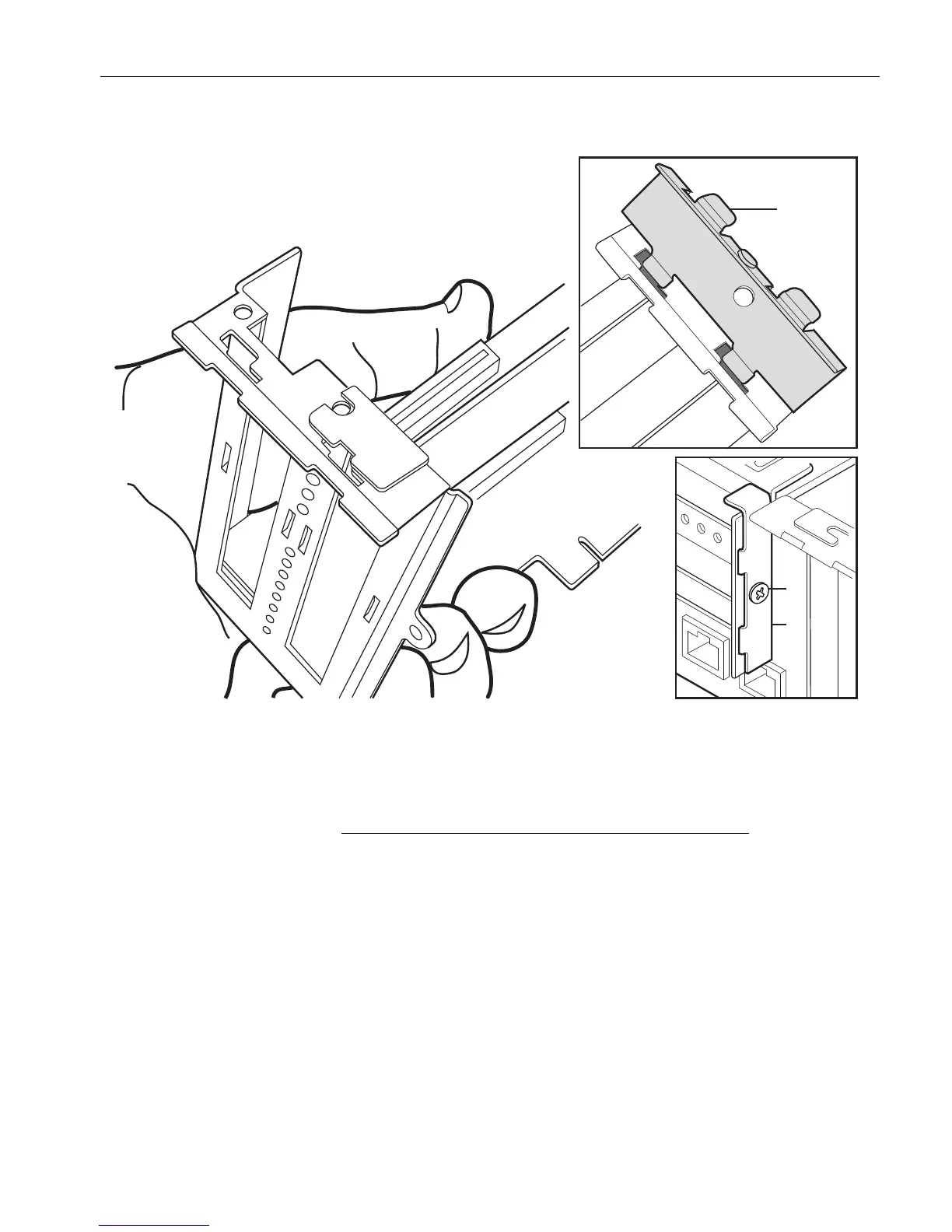

Figure 5-22. Removing the Bracket from the PCI Riser Assembly
Keep track of the removed screw and bracket and keep
them in a safe place while performing this procedure.
2. Remove the bracket by lifting it into a semi-upright position and removing its two
lower tabs from the slots.
3. Remove the adapter from its connector (number 1 in Figure 5-23). If the adapter
does not disconnect easily, use a firm side-to-side tugging motion while
maintaining steady pressure on the adapter.
1 Bracket
2Screw
