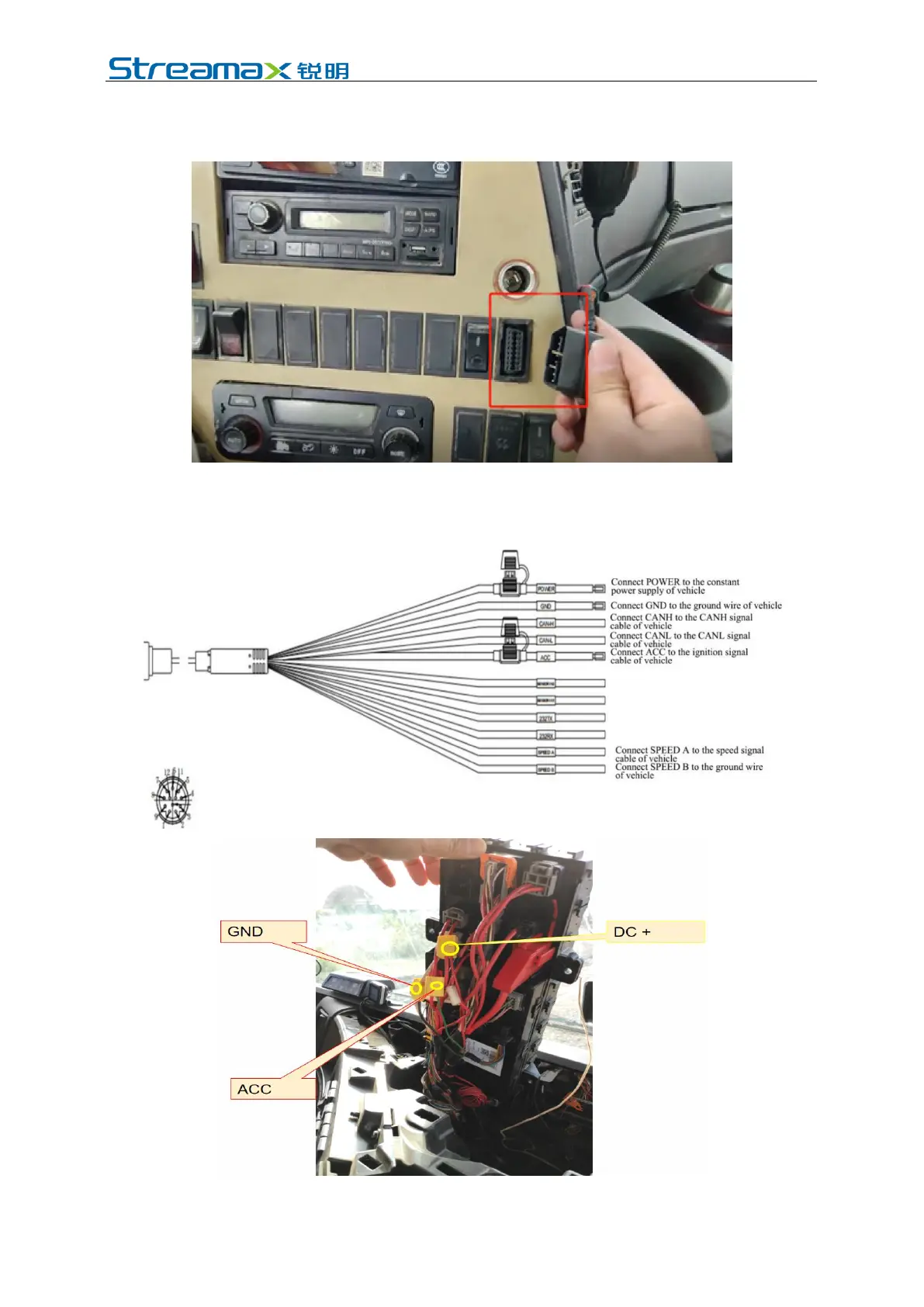

(1) If the mode of quick power supply connection through OBD interface is
adopted, locate the OBD interface of the vehicle and directly connect with the
interface.
(2) If the mode of power supply connection through discrete wire is adopted,
according to the definition of power discrete wire, connect
POWER/ACC/GND with the power cable of the vehicle, respectively.
