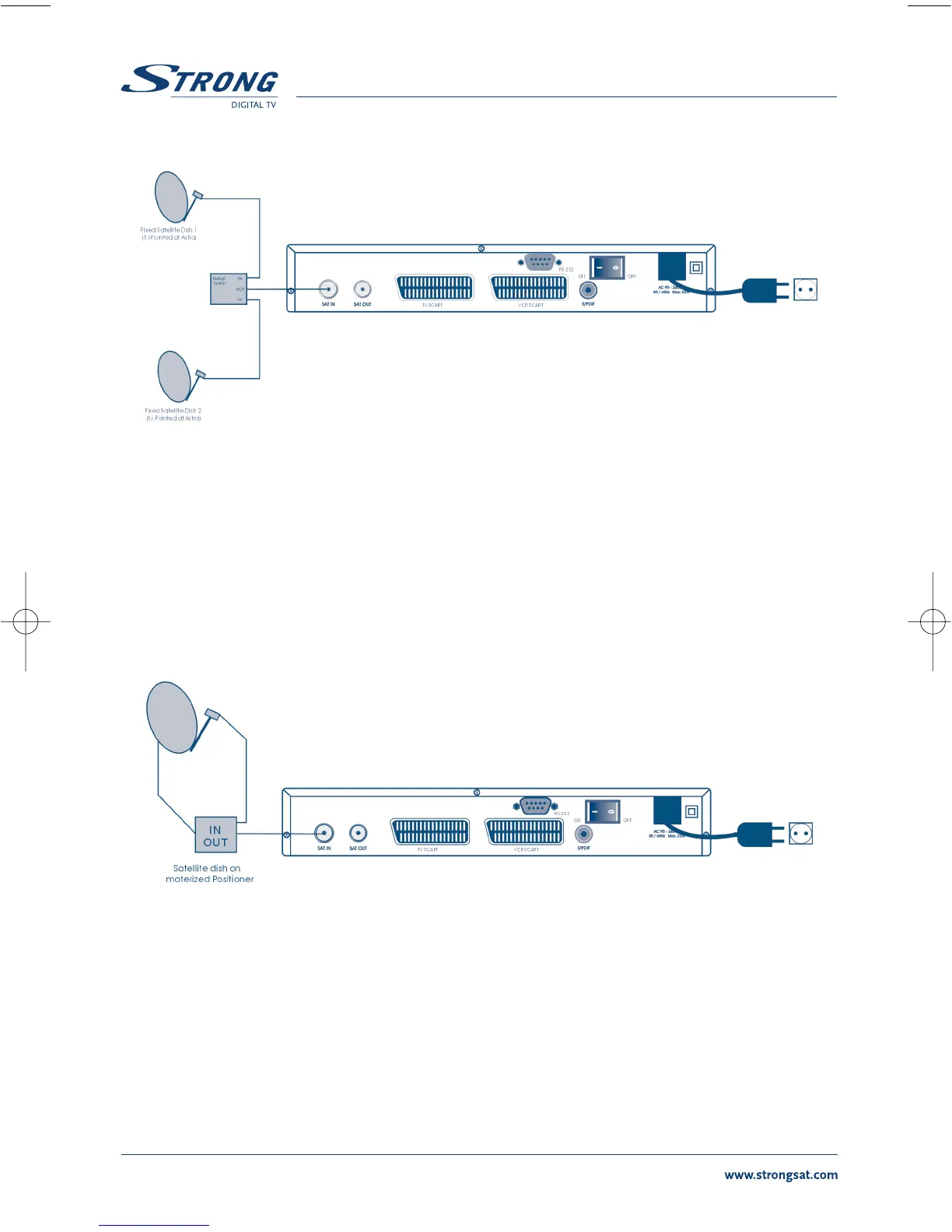

FIGURE 8. Connecting multiple fixed dishes to your receiver using a DiSEqC 1.0 switch
<Connecting a dish on a motorized positioner to your receiver>
Another possibility for watching programs from multiple satellites is by mounting
a dish to a motorized DiSEqC 1.2 positioner.
Have your dealer mount the dish to the positioner, set the correct angle of the elevation and let him set
the center point for your positioner.
Connect the LNB with a coax cable to the LNB IN connector of the positioner, and connect the OUT
connector of the positioner to the LNB IN connector at the back of your receiver.
FIGURE 9. Connecting a dish on a motorized positioner to your receiver
