Stryker MX-PRO R3 - Operating the Two-Stage I.V. Pole (Optional Equipment)

36 6082-209-001 REV A www.stryker.com
Return To Table of Contents
Cot Features
1. Lift and pivot the pole from the storage position and push down until it is locked into receptacle (A).
2. To raise the height of the pole, turn the lock actuator (B) counterclockwise and pull up on the telescoping portion
(C) of the pole to raise it to the desired height.
3. Turn the lock actuator (B) clockwise to lock the telescoping portion in place.
4. Hang I.V. bags on the I.V. hook (D).
CAUTION
The weight of the I.V. bags or equipment must not exceed 40 pounds.
OPERATING THE TWO-STAGE I.V. POLE (OPTIONAL EQUIPMENT)

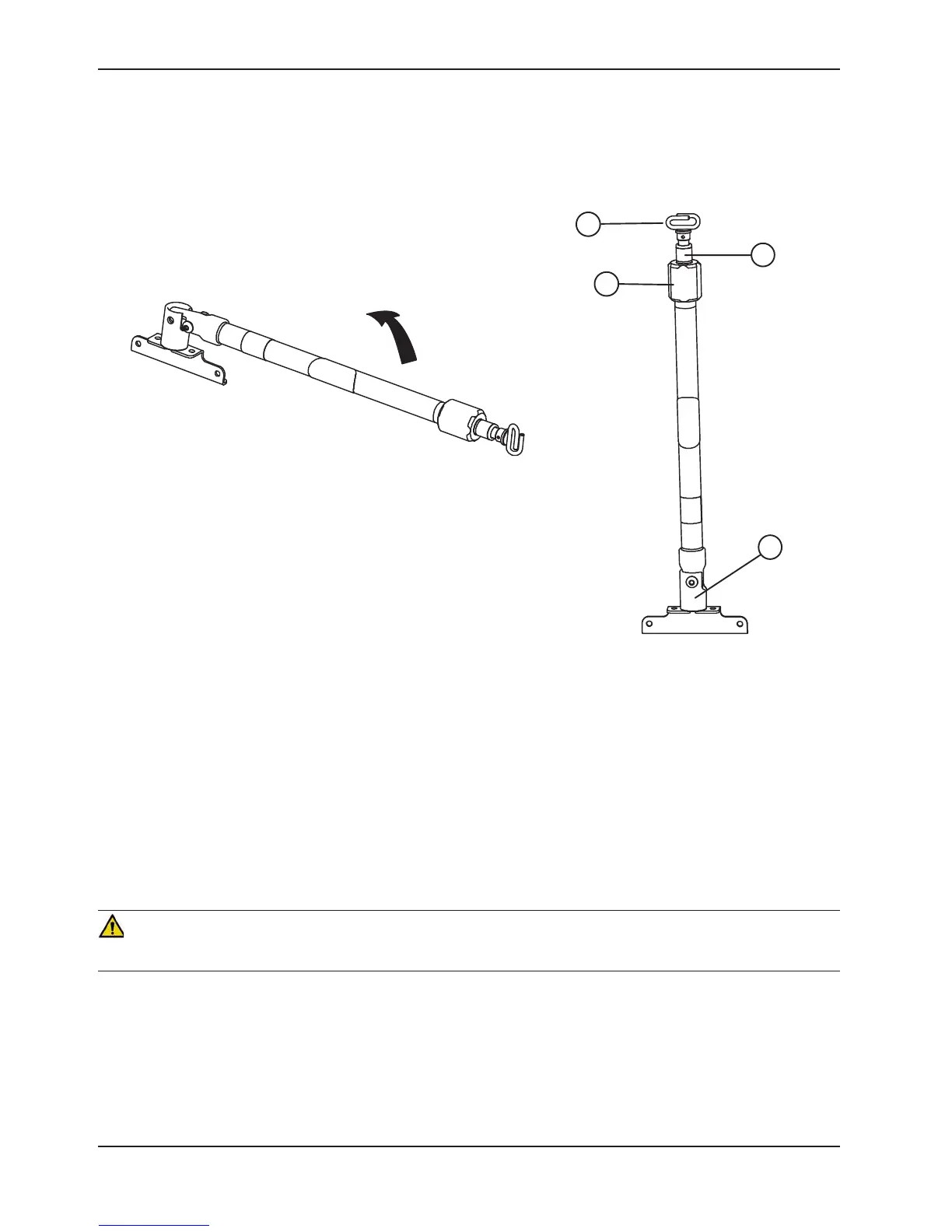

Figure 33 - Two-Stage I.V. Pole Storage Position
Figure 34 - Two-Stage I.V. Pole
A
B
C
D
