Cot Features
OPERATING THE THREE-STAGE I.V. POLE (OPTIONAL EQUIPMENT)
1. Lift and pivot the pole from the storage position and push down until it is
locked into receptacle (A).
2. To raise the height of the pole, turn the lock actuator (B) counterclockwise
and pull up on the bottom telescoping portion (C) of the pole to raise it to
the desired height.
3. Turn the lock actuator (B) clockwise to lock the bottom telescoping portion
in place.
4. For a higher I.V. pole, pull up on section (D) until the spring clip (E) engages.
5. Hang I.V. bags on the I.V. hook (F).
6. To lower the I.V. pole, push in on the spring clip (E) and slide section (D)
down into section (C). Turn the lock actuator (B) counterclockwise and
slide section (C) into the bottom tube.
7. Lift up and pivot the pole down into the storage position.
CAUTION
The weight of the I.V. bags or equipment must not exceed 40 pounds.

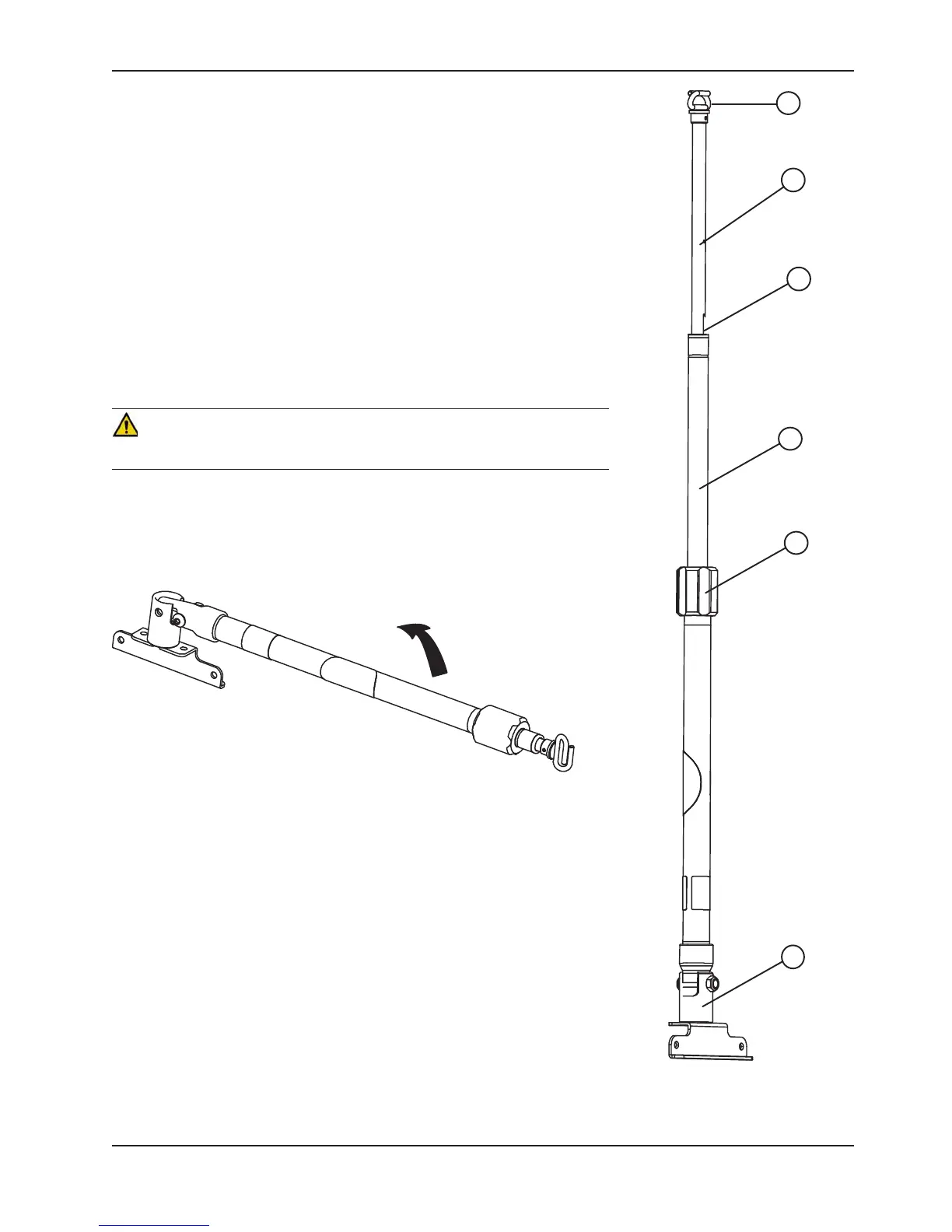

Figure 35 - Three-Stage I.V. Pole Storage Position
Figure 36 - Three-Stage I.V. Pole
Figure 36 − 3−Stage I.V. Pole
A
B
C
D
E
F
