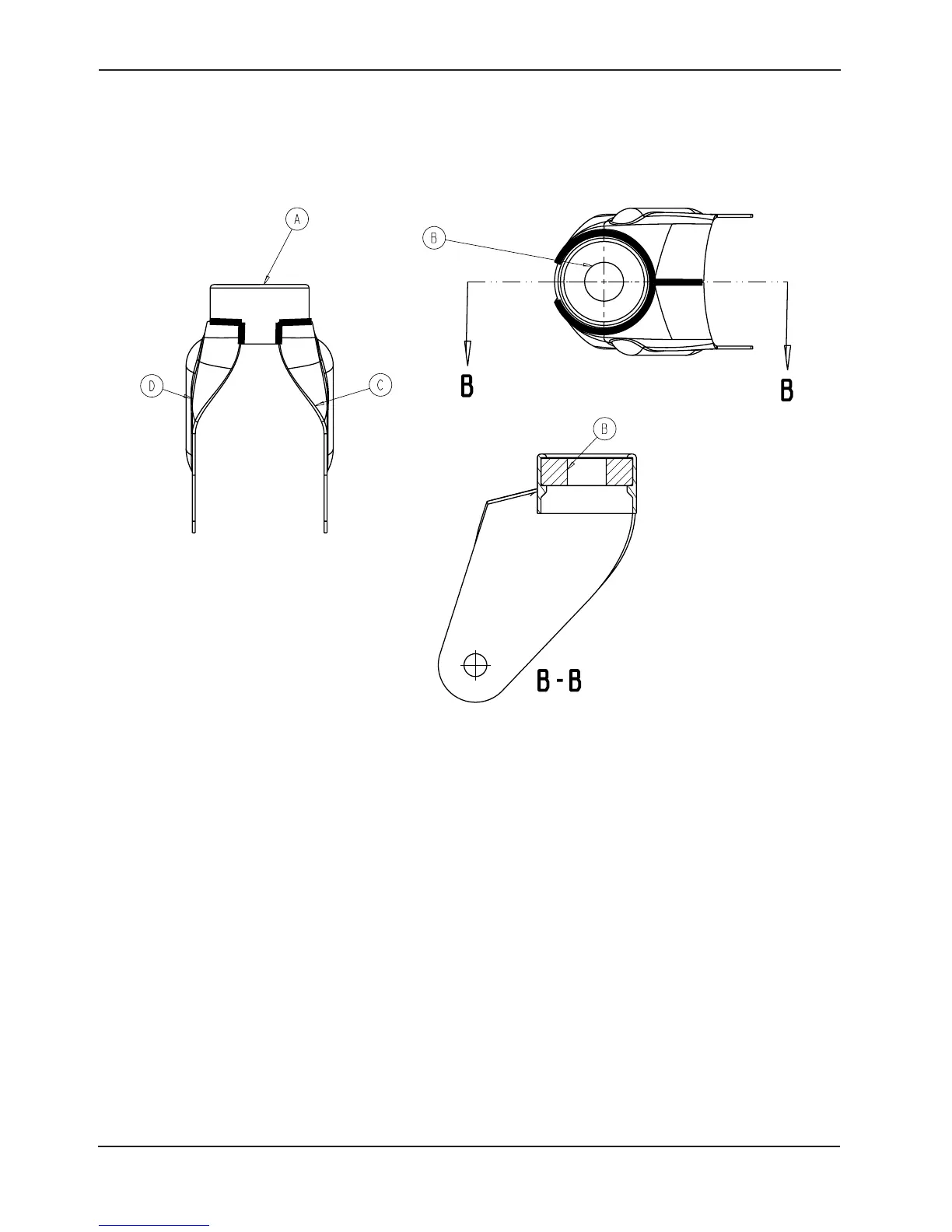

Caster Horn Assembly

Item Part No. Part Name Qty.

A 6082-002-039 Bearing Retainer 1

B 0081-227-000 Bearing 1

C 6082-002-042 Caster Horn Plate, Left 1

D 6082-002-043 Caster Horn Plate, Right 1

6082-002-012 Rev C (Reference Only)

Table of Contents3
Introduction6
- Specifications6
- Warning / Caution / Note Definition7
Product Illustration8
Symbols and Definitions9
Position 110
- Stryker EMS Return Policy11
- Return Authorization11
- Damaged Merchandise11
- International Warranty Clause11
- Patent Information11
Warranty10
Summary of Safety Precautions12
Setup Procedures14
Vehicle Safety Hook Selection15
Vehicle Safety Hook Installation16
- Vehicle Configuration16
- Required Hardware for Installation of the Safety Hook (Not Supplied)16
- Front to Back Positioning of the Safety Hook17
- Side to Side Positioning of the Safety Hook18
- Installing the Safety Hook18
Cot Positions19
Cot Operations20
- Using Patient Restraint Straps20
- Pedi-Mate® Infant Restraint System Attachment Instructions (Optional Equipment)22
- Operating Guidelines24
- Transferring the Patient to the Cot24
- Rolling the Cot24
- Raising/Lowering the Cot24
- Loading the Cot into a Vehicle with Two Operators25
- Loading an Empty Cot into a Vehicle with One Operator26
- Unloading the Cot from a Vehicle with Two Operators27
- Unloading an Empty Cot from a Vehicle with One Operator27
- Using Additional Assistance28
- Operating the Optional Wheel Lock(S)29
- Adjusting the Wheel Locking Force30
- Changing the Cot Height with Two Operators31
- Changing the Height of an Empty Cot with One Operator32
- Adjusting the Leg Rest33
- Operating the Backrest34
- Operating the Siderails34
- Operating the Breakaway Head Section35
- Operating the Two-Stage I.V. Pole (Optional Equipment)36
- Operating the Three-Stage I.V. Pole (Optional Equipment)37
Cleaning38
- Washing Limitations38
- Removal of Iodine Compounds39
Preventative Maintenance40
- Checklist40
- Base Lubrication41
- Pneumatic Backrest Adjustment42
Maintenance Record43
Training Record44
Cot Assembly45
Base Assembly51
Wheel Assembly - 6060-002-01055
Base Pivot Outer Lift Tube Assembly - 6082-201-06756
Base Pivot Inner Lift Tube Assembly - 6082-001-06957
Lock Bar Assembly - 6082-005-05658
Adjustable Caster Lock Assembly - 6082-200-01059
Optional Single Wheel Lock Assembly - 6082-501-01060
Optional Dual Wheel Lock Assembly - 6082-502-01060
No Wheel Lock Option61
Dual Diagonal Wheel Lock Option61
Four Wheel Lock Option61
Caster Horn Assembly62
Litter/Base Adapter Assembly, Right - 6082-205-05063
Litter/Base Adapter Assembly, Left - 6082-205-05364
Litter Assembly65
Siderail Assembly - 6082-026-01072
Optional Lift Tube Assembly, Left Side Release - 6082-140-05973
Optional Lift Tube Assembly, Right Side Release - 6082-140-06075
Release Handle Assembly, Left - 6082-040-06177
Release Handle Assembly, Right - 6082-040-06278
Breakaway Head Assembly79
Optional Two-Stage I.V. Pole Assembly, Right - 6080-210-01084
Optional Three-Stage I.V. Pole Assembly, Right - 6080-215-01084
Optional Two-Stage I.V. Pole Assembly, Right - 6080-210-02085
Optional Three-Stage I.V. Pole Assembly, Right - 6080-215-02086
Optional Two-Stage I.V. Pole Assembly, Left - 6080-211-01087
Optional Three-Stage I.V. Pole Assembly, Left - 6080-216-01087
Optional Two-Stage I.V. Pole Assembly, Left - 6080-211-02088
Optional Three-Stage I.V. Pole Assembly, Left - 6080-216-02089
Optional Two-Stage I.V. Pole Assembly - 6070-210-07090
Optional Three-Stage I.V. Pole Assembly - 6070-215-07091
Optional Three-Stage I.V. Pole Assembly - 6070-115-03092
Patient Right Assembly, no I.V. Pole Option - 6080-212-01093
Patient Left Assembly, no I.V. Pole Option - 6080-213-01094
Optional Oxygen Bottle Holder, Removable - 6080-140-00095
Optional Oxygen Bottle Holder, Foot End - 6070-140-00096
Optional Oxygen Bottle Holder Tray Assembly, Foot End - 6060-140-02097
Optional Oxygen Bottle Holder, Head End - 6082-140-00098
Optional Oxygen Bottle Holder Tray Assembly, Head End - 6082-140-04099
Optional Pull Handle Assembly - 6080-155-000100
Optional Base Lift Bar Assembly - 6080-157-010101
Optional Base Storage Tray Assembly - 6082-150-015102
Optional X-Frame Guard Assembly (Pair) - 6080-145-000103
Optional Pedi-Mate Restraint Assembly - 6080-300-010104
Optional Retaining Post, Right - 6082-200-000105
Optional Retaining Post, Dual - 6082-190-000106
Optional Storage Tray, Head End - 6082-128-000107
Optional Tray Assembly, Head End - 6082-128-020108
Optional Head Extension Kit Assembly - 6100-044-000109
Optional Head Extension Assembly - 6100-044-012110
Base Storage Net - 6080-150-010111
Optional Backrest Pouch Assembly - 6500-130-000112
Optional Defibrillator Platform Assembly - 6082-170-000113
Optional Equipment Hook - 6500-147-000114
Transfer Flat - 6005-001-001115
Standard Restraint Strap Package - 6082-260-010116
Chest Restraint - 6060-260-046116
Optional Restraint Extender, 3' - 6082-160-050117
Optional Head End Storage Pouch - 6082-128-010/6082-128-012118
Optional Accessory Strap Assembly - 6082-160-052118
Bolster Mattress - 6090-041-010119
Flat Mattress - 6090-042-010120
Safety Hook, Short - 6060-036-017/Safety Hook, Long - 6060-036-018/Safety Hook, J - 6092-036-018121
Quick Reference Replacement Part List122
Www.stryker.com 6082-209-001 REV a123
