Stryker Neptune 2 Service Manual

8 www.stryker.com
EN 0702-002-700 Rev-J
LABEL OR ICON NAME DEFINITION
DOWN/DECREASE
Scroll down to highlight an option or
decrease a value.
UP/INCREASE
Scroll up to highlight an option or
increase a value.
ERROR INDICATOR
Access ERRORS screen to view
error(s). See Error Messages.
ESC
Close or ESCape a screen without
accepting changes or selections
and return to previous screen.
OK
Accept changes and return to the
previous screen. Select an error
message and access message
screen.
RESET
Change or RESET the timer value
when either the fluid suction filter
or the smoke evacuator filter is
replaced.
SYSTEMSETUP
Access the System Setup screen to
change system setting options.
SELECT MARK
Icon indicates screen option is
selected and applied.
CONSULT
INSTRUCTIONS
FOR USE
Icon indicates the need to consult
instructions for use, specifically
error message information.
LABEL OR ICON NAME DEFINITION
FULL
FULL
Icon indicates when a canister is
full.
Error
ERROR
Icon indicates when a serious error
has occurred. The system may not
be used.
-----
INDETERMINATE
VALUE OR ERROR
Icon indicates the value of the
volume is in transition or an error
has occurred. The system may still
be used.
Features (cont’d)
Control Panel Button Label and Screen Icon Definitions
Fluid Level Display Screen Icon Definitions
Control Panel Display (see figure 3)

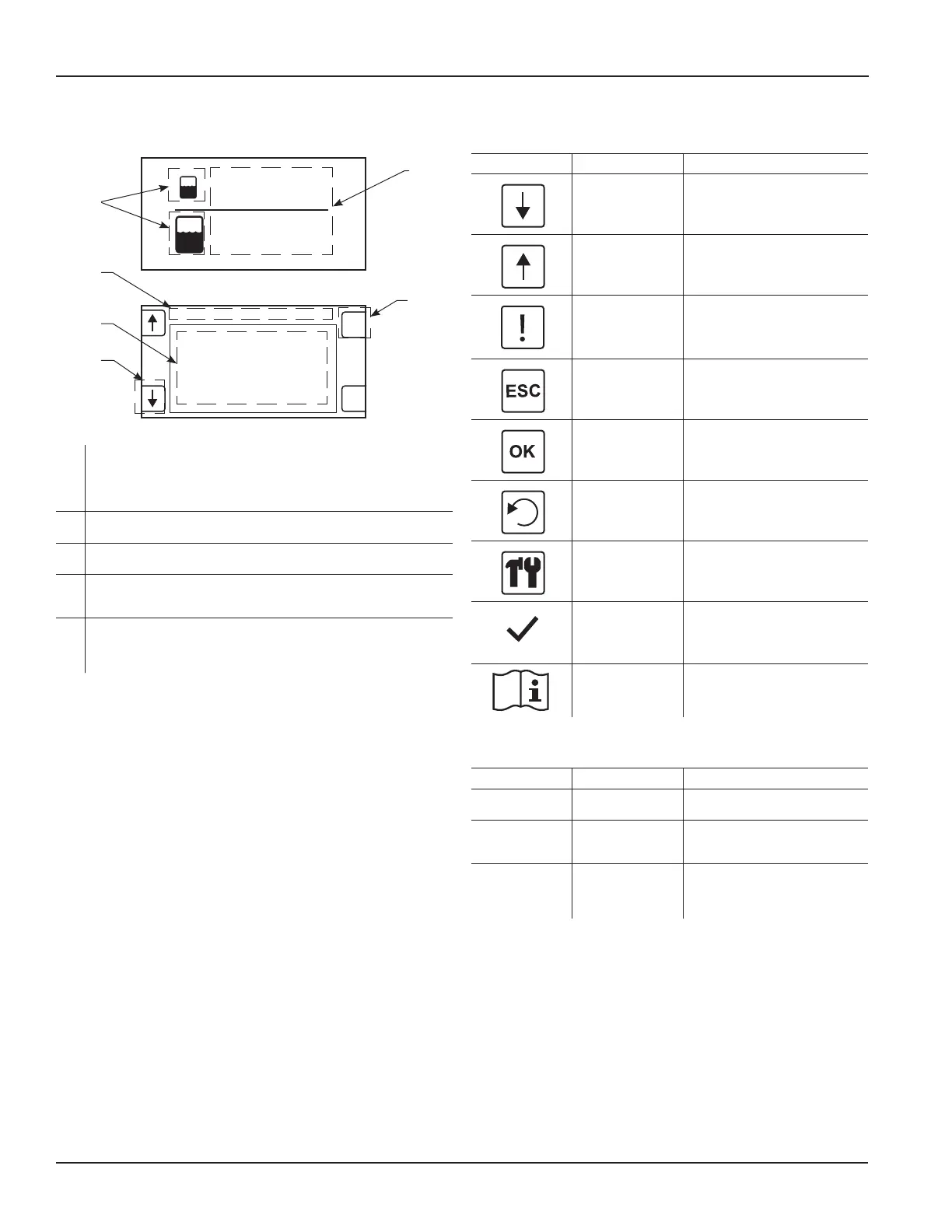

Figure 3 Control Panel Display
A
Canister Identification/Vacuum Level Status Areas - Two areas that
identify the specific canister and its corresponding vacuum level status.
‘S’ indicates the vacuum limit SET value. The system may fluctuate
significantly to a lower value, but will not exceed the limit set value. ‘A’
indicates the ACTUAL or real time vacuum value.
B
Title Area - Area indicates the type of message displayed, including
warnings, wash cycle options, and errors.
C
Message Area - Area displays system warnings, wash cycle options, and
error message information.
D
Push Button Label Areas - Four areas that correspond to the adjacent
control panel display push buttons and indicate the button’s function. See
Button Label and Screen Icon Definitions.
E
Vacuum Level Areas - Two areas that provide vacuum level values for each
canister (units of measurement may be changed). If the vacuum supplied
through the facility vacuum ports exceeds a value of 22.5 in-Hg, the control
paneldisplaywillnolongerindicateavalue,butwillshowdashmarks[---].
ESC
OK
55 mm-Hg
55 mm-Hg
A
S
A
B
C
D
E
D
