cybercool indoor chiller original instructions
Connection of the power supply cable

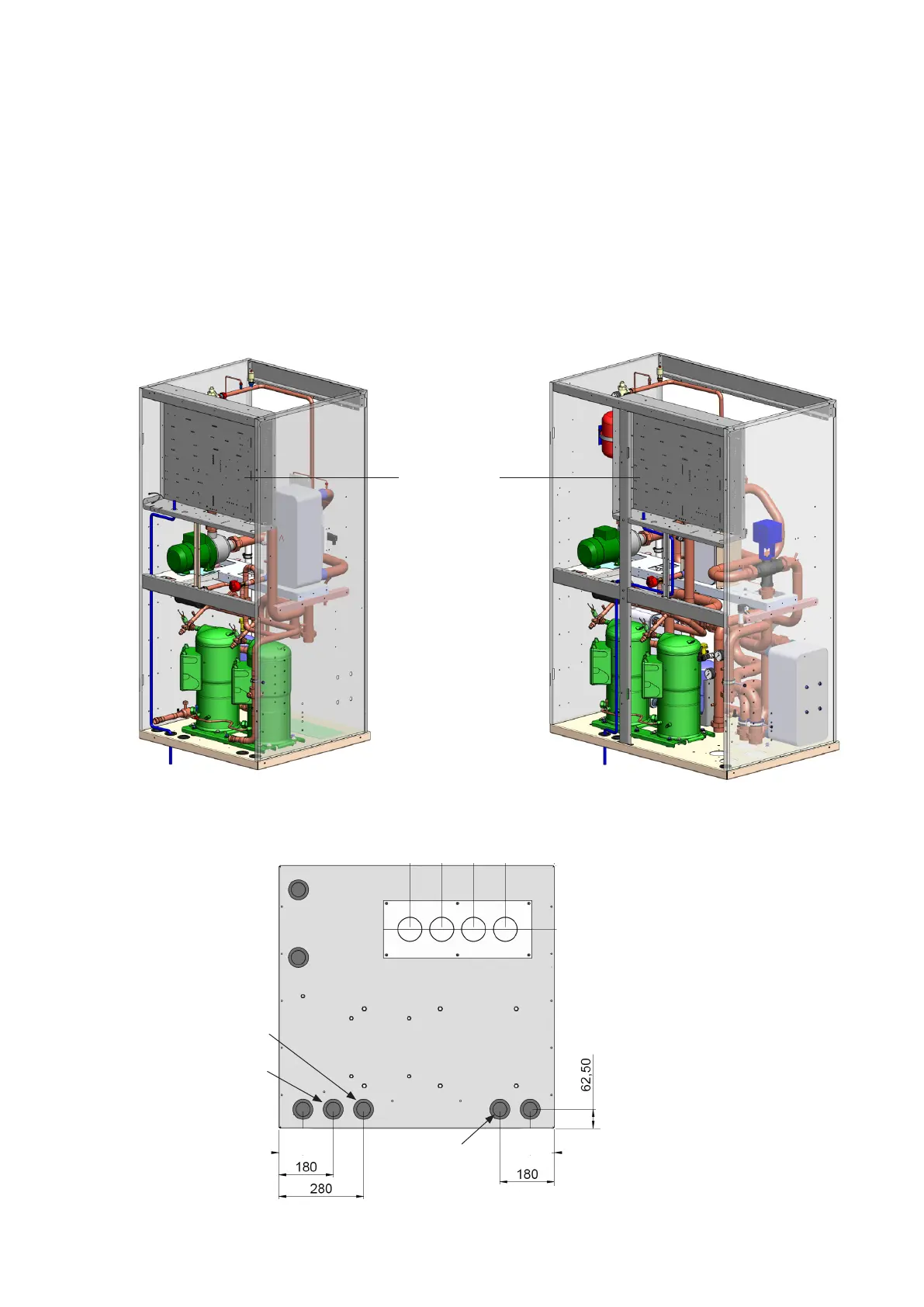

• route the power supply cable in the unit as shown in the following illustrations and x it at the unit frame.
• route the electric cable into the electrical box from below and connect the PE conductor at the PE rail, the
neutral conductor at the neutral terminal and the three phases to the main switch, in accordance with the
wiring diagram (part of the unit documents).
• secure these cables by the pull relief screw.
Version A/G Version GE
insertion for the power supply cable
Electrical box
Customer
control line
2. Power supply
1. Power supply
Unit rear side
