cybercool indoor chiller original instructions
Connection of control lines (optional)
If the chiller unit shall be connected to other Stulz units by the IO bus, to a BMS or contains opional extensions
as louvers, you must route control lines and connect them in the electric box of the chiller.
• route the control lines in the unit as shown in the illustrations and x them at the unit frame.
• route the control lines into the electrical box from below and connect them in accordance with the wiring
diagram (part of the unit documents).
2. Power supply
1. Power supply

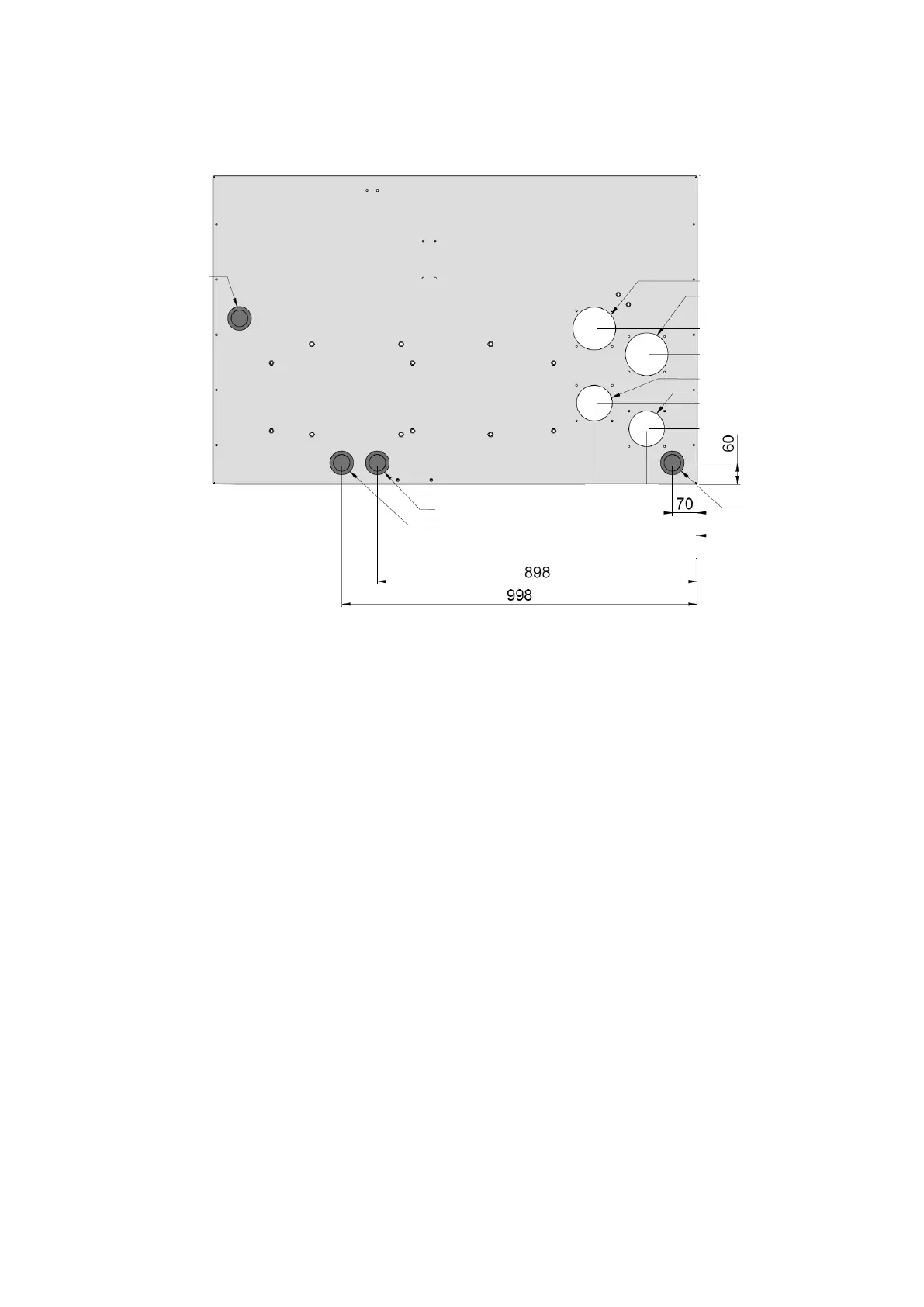

Control lines
Top view
Version GE
Unit rear side
