Installation Information
Integrated
(700-
3
BASE)
Series
2-2
#3758424 - Revision B - December, 2005
UNIT COULD TIP FORWARD UNDER CERTAIN LOAD CONDITIONS. FAILURE TO INSTALL ANTI-TIP COM-
PONENTS AND EXTEND LEVELERS TO THE FLOOR ACCORDING TO INSTALLATION MANUAL COULD
RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
INSTALLATION CONSIDERATIONS
This section covers some of the more common installation issues seen by a service technician. An improper instal-
lation, though not a valid service issue, has the potential to lead to a customer placing a call for service. Installation
related customer complaints could include, but are not limited to: Unit leveling, unit movement, door misalignment,
drawers not sealing, internal frost or condensation, warm compartment temperatures, exterior condensation, etc.. .
NOTE: If additional installation information is needed, refer to the complete Installation Manual and/or installation
video, or contact the Sub-Zero Technical Assistance Department.

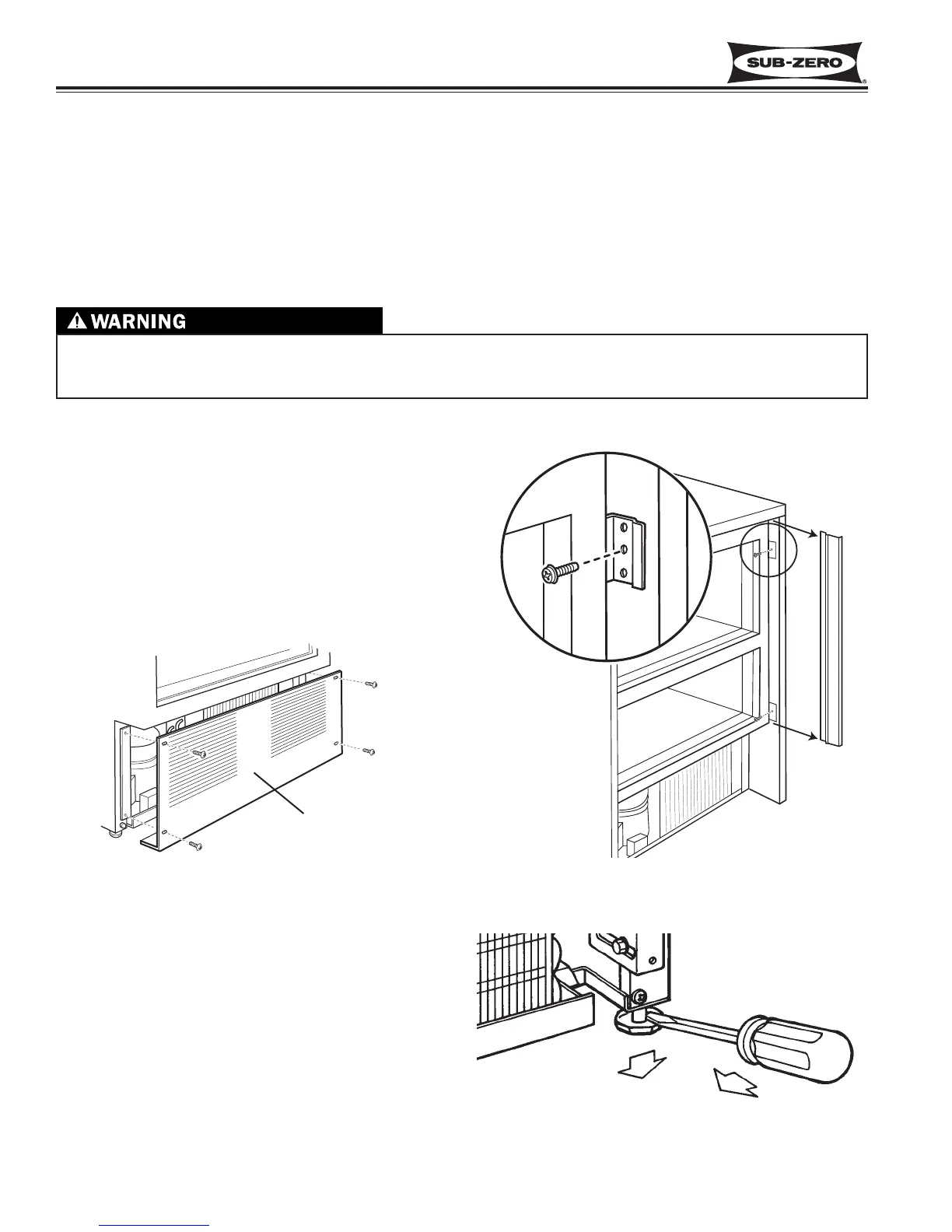

Unit Leveling
NOTE: The kickplate/grille must be removed before
leveling (See Figure 2-1).
If unit has been anchored to cabinets, side molding
strips must be removed and anchor screws extracted
from unit to cabinet brackets before leveling (See
Figure 2-2).
Figure 2-2. Side Molding & Bracket
Figure 2-1. Kickplate/Grille Removal
Figure 2-3. Adjusting Front Levelers
To level unit, turn front leveling legs counterclockwise to
raise front or clockwise to lower it. To assist in turning
front leveling legs, use standard straight-blade screw-
driver, placing it in foot of front leg, then rotate leveler
foot (See Figure 2-3).
Kickplate / Grille
To Next Page
