Component Access/Removal
Integrated
(700-
3
BASE)
Series
7-5
#3758424 - Revision B - December, 2005
INTERIOR COSMETIC AND MECHANICAL
COMPONENTS
Control Panel Assembly Removal
(All Base Units)
The control panel assembly is attached inside top draw-
er assembly with three screws.
To remove control panel assembly (See Figure 7-6):
1. Extract screws
2. Disconnect display wire harness from control panel
assembly and lift assembly up and out.
Display Wire Harness Removal (All Base Units)
One end of the display wire harness is connected at
interior left rear of upper drawer compartment. The
middle of the display wire harness is attached to the
bottom of upper drawer assembly with tube clamps and
snap rivets. The other end is routed up through a chan-
nel in the drawer front, held in place under the control
panel assembly with cable clamp and screw, and
plugged into the control panel assembly.
To remove the display wire harness, the upper drawer
assembly must be extracted and the control panel must
be removed first, then (See Figure 7-7):
1. Extract screw and cable clamp from top of drawer
assembly.
2. Remove cable clamps and snap-rivets from bottom
of the drawer assembly by pushing rivet’s center
push-pin down.
3. Pull wire harness down through channel in drawer
front. (See Figure 7-7)
Light Bulb and Socket Removal (All Base Units)
Base units have two light bulbs: One in ceiling of top
drawer area; One at bottom of divider between drawers.
A rubber flange at the back of the socket holds it in a
bracket.
Light Bulb Removal
(See Figure 7-8):
Turn light bulb counterclockwise to remove it; clockwise
to install it.
Light Socket Removal
(See Figure 7-8):
Pull light socket from hole in bracket, then disconnect
electrical leads.

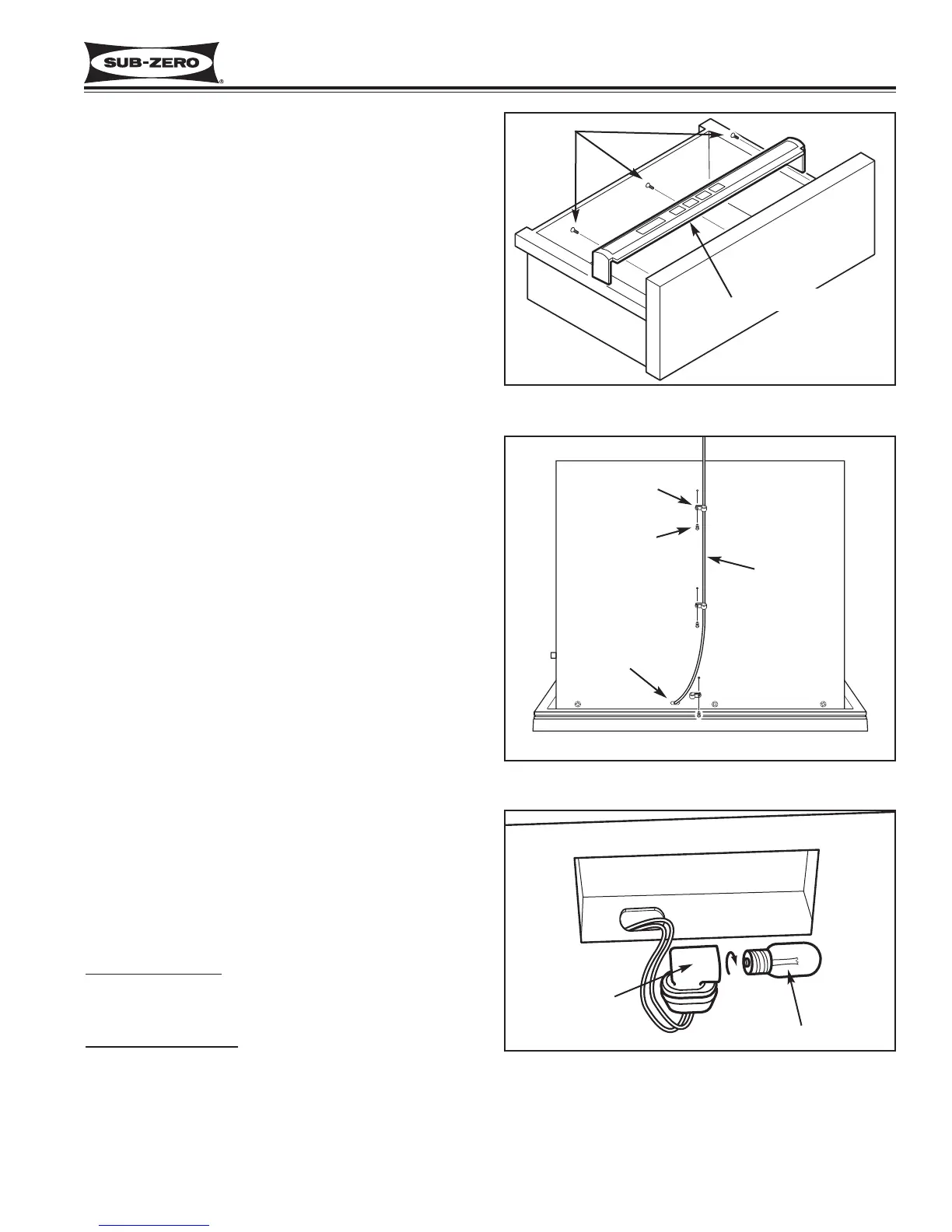

Figure 7-6. Control Panel Assy Removal
Control Panel Assy
Screws
Figure 7-7. Display Wire Harness Removal
Cable Clamp
Channel
Figure 7-8. Light Bulb / Socket Removal
Light Socket
Light Bulb
Bracket
Snap Rivet
Display
Wire
Harness
To Next Page
