Electronic Control System
Integrated
(700-
3
BASE)
Series
3-4
#3758424 - Revision B - December, 2005
J2
J6
J4
J5
J3
P2 P1 P3 P4
PIN 1
PIN 1
PIN 1
PIN 1
PIN 1

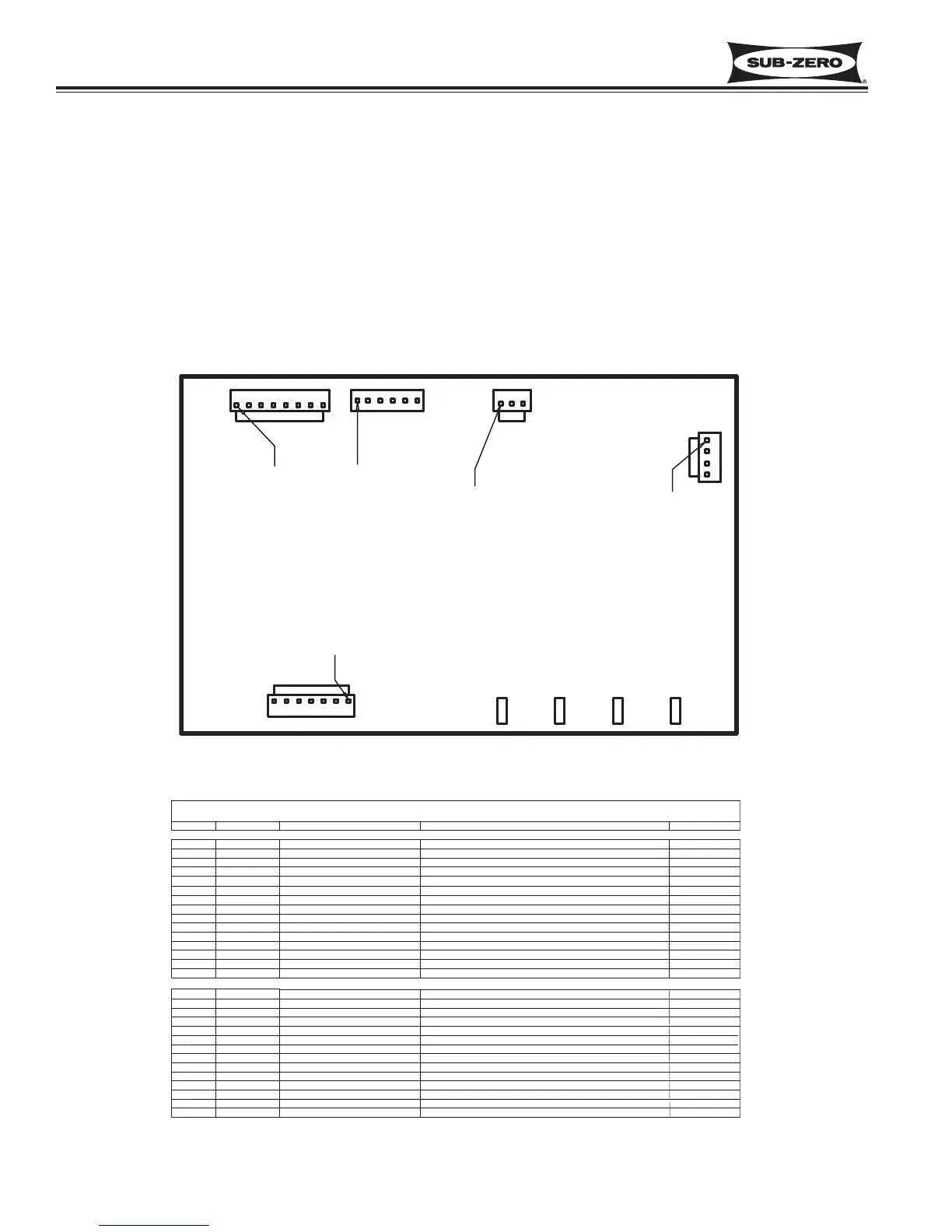

Figure 3-2. Main Control Board Layout
Figure 3-3. Main Control Board Summary Table
MAIN CONTROL BOARD LAYOUT AND SUMMARY TABLE
Electrical connection points on the main control board are labeled alphanumerically. These labels correspond with
the alphanumeric summary table, located on the wiring diagram. By referencing the summary table, it is possible to
identify which components are connected at which points on the main control board. Below is a layout diagram of
the main control board, and a copy of a model 700BCI-3 summary table. (See Figures 3-2 & 3-3)
NOTE: All components on the control board are non-replaceable. If a problem with the control board is identified,
the complete control board must be replaced.
NOTE: There is also a small control board in the control panel assembly (Not Shown). All components in the con-
trol panel assembly are non-replaceable. If a problemwith the control panel is identified, the complete control panel
assembly must be replaced.
ORANGE
BLACK
BLUE/RED
BLUE/BLACK
YELLOW/BLACK
YELLOW/WHITE
PINK
SENSES REFRIGERATOR CABINET TEMPERATURE
POWER IN
120 VOLT CIRCUITS
COMPRESSOR
DESCRIPTION
NOT USED
DEFROST HEATER
EVAPORATOR FAN
NOT USED
REFRIGERATOR FAN
NOT USED
FRZ DRAWER LIGHT SENSE
REF DRAWER LIGHT SENSE
DEFROST SENSOR
NOT USED
BAFFLE NEUTRAL
BAFFLE OPEN
BAFFLE CLOSE
EVAPORATOR
LOW VOLTAGE THERMISTOR CIRCUITS
ICE MAKER
ICE MAKER VALVE SENSOR
NEUTRAL
CIRCUIT
J2-2
J2-3
J2-4
J3-6
J3-7
J2-1
J3-4
J3-2
J3-3
J3-5
FAN 2
ICE
COMPRESSOR
L1
DEFROST
LN
FAN 1
P4
P1
P3
P2
J3-1
J5-8
J6-1
J6-2
J6-3
J5-1,2
J5-3,4
J5-5,6
J5-7
COLORFUNCTION
MAIN CONTROL BOARD SUMMARY
NEUTRAL INTO BOARD
POWER INTO BOARD
POWERS EVAPORATOR FAN
SENSES IF FREEZER DRAWER OPEN
SENSES EVAPORATOR TEMPERATURE
POWERS DEFROST CIRCUIT AND FILL TUBE HEATER
POWERS FFAN IN REFRIGERATOR
SENSES WHEN DEF HEATER SHUTS OFF
SENSES WATER VALVE ACTIVATION
POWERS ICE MAKER
POWERS LIGHTS
PURPLE
WHITE
ORANGE/BLACK
GRAY
TERMINAL
J4-5
J4-3
J4-2
J4-1
J4-4
DISPLAY WIRING
J4-6
ORANGE
BLUE
RED
WHITE
BLACK
YELLOW/RED
ORANGE/RED
LIGHTS
LWR
UPR
DEF
ICE
FREEZER COMPARMENT
REFRIGERATOR COMPARTMENT
DISPLAY WIRING
DISPLAY WIRING
DISPLAY WIRING
DISPLAY WIRING
DISPLAY WIRINGDISPLAY
DISPLAY
DISPLAY
DISPLAY
DISPLAY
DISPLAY
EVAP
EVAP
LOWER
UPPER
POWERS COMPRESSOR AND CONDENSER FAN
SENSES IF REFRIGERATOR DRAWER OPEN
SENSES FREEZER CABINET TEMPERATURE
SENSES EVAPORATOR TEMPERATURE
BAFFLE NEUTRAL
PULSED TO CLOSE BAFFLE
PULSED TO OPEN BAFFLE
12VDC POWER SUPPLY FOR DISPLAY BOARD
SERIAL DATA RECEIVE
SERIAL DATE TRANSMIT
GROUND FOR DISPLAY BOARD POWER SUPPLY
12VDC POWER SUPPLY FOR DISPLAY BOARD
GROUND FOR DISPLAY BOARD POWER SUPPLY
BLUE
RED
YELLOW
GRAY/WHITE
TAN
BLUE/YELLOW
LIGHTS
EVAPORATOR
N
C
O
YELLOW
