Component Access/Removal
Integrated
(700-
3
BASE)
Series
7-4
#3758424 - Revision B - December, 2005
Side Trim Molding Strip Removal (All Base Units)
Side trim molding strips are held in place by two unit-to-
cabinet brackets which are attached to the sides of the
cabinet.
NOTE: Removing the drawers first will make this task
easier.
To remove side trim molding strips (See Figure 7-4):
1. Insert a straight-blade screwdriver in channel at
bottom of molding, then gently pull molding forward
until face-frame edge of molding is accessible.
2. Place another straight-blade screwdriver under
face-frame edge and gently work molding away
from face-frame and out of the two unit-to-cabinet
brackets.
Drawer Gasket Removal (All Base Units)
An extruded dart at the back of the drawer gaskets is
pressed into retaining channels that are molded into
drawer liners.
NOTE: Drawer assemblies must be removed from unit
in order to remove and/or install gaskets.
To remove a drawer gasket, simply pull gasket from the
retaining channel (See Figure 7-5).
2
1

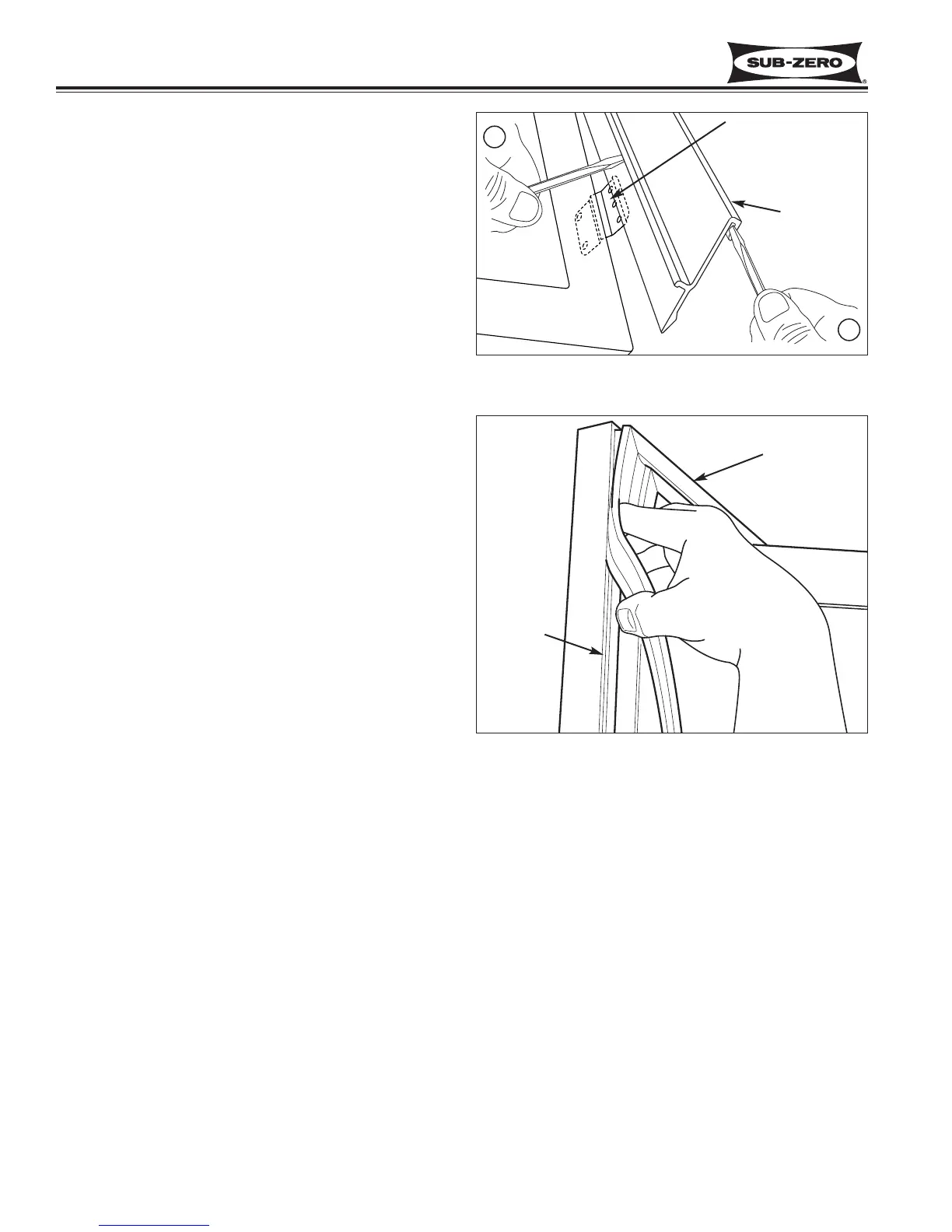

Figure 7-4. Side Molding Removal
Side
Molding
Strip
Gasket Seat
Unit to
Cabinet
Bracket
Figure 7-5. Gasket Removal
Drawer Gasket
Channel
