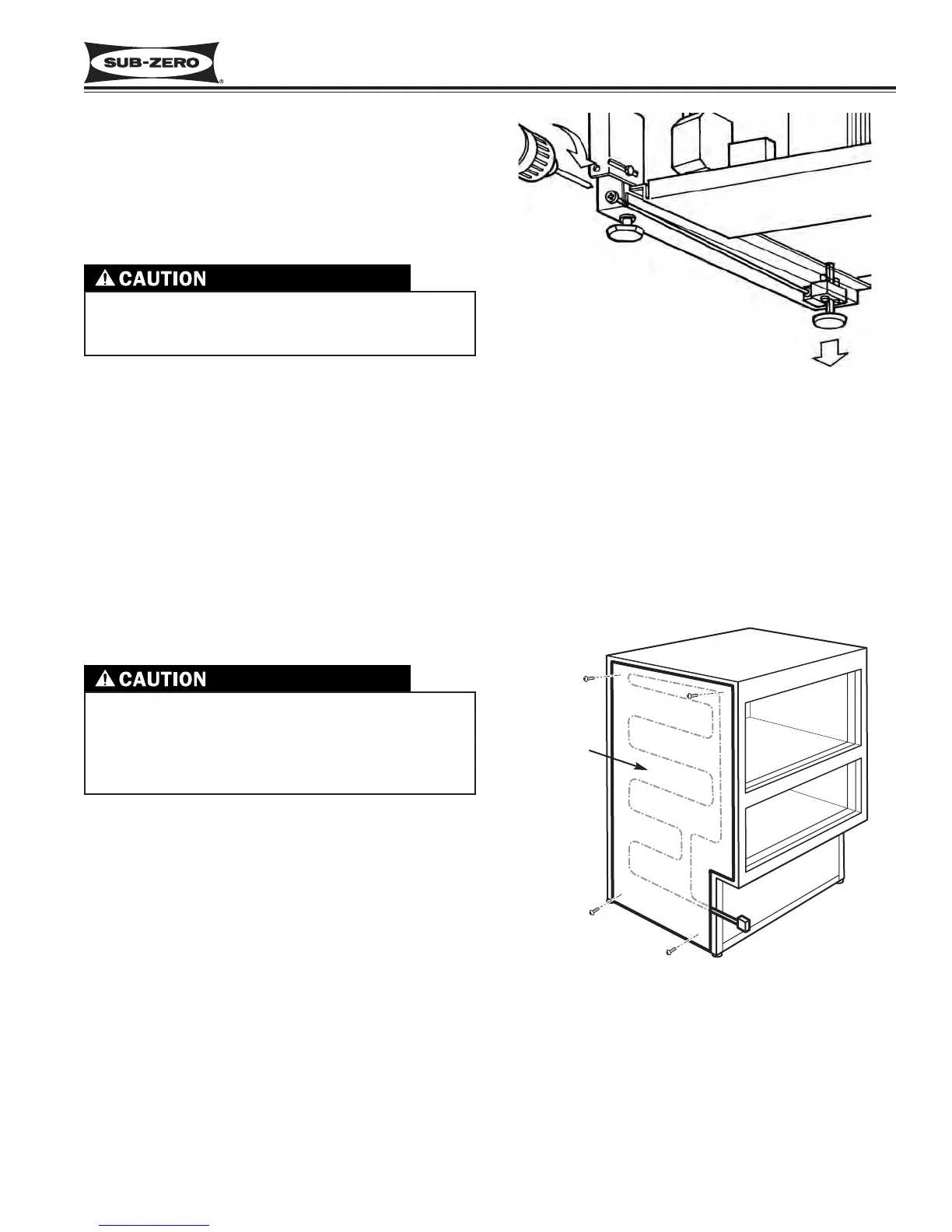

Figure 2-4. Adjusting Rear Levelers
Rear levelers are adjusted at front of base by turning
Phillips head adjusting rod, which engages rear leveler
assembly. Turn rod clockwise to raise rear or counter-
clockwise to lower it (See Figure 2-4).
NOTE: Rear leveling legs will only move 1/16” for
every 18 revolutions of Phillips head adjusting rod.
Do not over torque. Use lowest torque setting on any
power screwdriver. Do not turn rear leveling legs by
hand, doing so will damage the assembly.
Door and Drawer Adjustment
Doors and drawers on 700-3 Series units are non-
adjustable. Instead, door and/or drawer panels must be
adjusted if there are alignment problems. Refer to
Installation Manual and/or installation video for panel
installation and adjustment.
NOTE: Unit must be level before attempting to adjust
door and drawer panels.
Dual Unit Installations
• If two Base units are installed side by side and are
2” or less apart, use part #BBDUAL.
• If a Tall unit is installed next to a Base unit and they
are 2” or less apart, use part #BBDUAL.
NOTE: Complete installation instructions are supplied
with #BBDUAL and #TTDUAL packages.
If two or more units are placed side by side and are
2” or less apart, a dual unit heater package must be
applied to the left side of the right hand unit. Failure
to install the dual unit heater package could result
in exterior condensation between the units.
Figure 2-5. Dual Unit Heater Installation
Apply heater
to left side
of right hand
unit
