Electronic Control System
Integrated
(700-
3
BASE)
Series
3-27
#3758424 - Revision B - December, 2005
Manual Entry Model Configuration Mode
Manual Entry Model Configuration Mode allows a Service Technician to verify a main control board in a 700-3 Base
unit was configured correctly, and/or to reconfigure the main control board if a mistake was made during the configu-
ration process.
To initiate Manual Entry Model Configuration Mode the unit must be ON and the bottom drawer open
. Now, press
either COLDER key and the UNIT ON/OFF key (See Figure 3-59). Then, Press and hold the drawer ajar alarm bell
ON/OFF key and the UNIT ON/OFF key together for 15 seconds. The unit will now be in Model Configuration Mode,
with the model code of the last configuration displayed (See Figure 3-60 and Model Code Table on previous page).
If needed, toggle through the model codes by pressing WARMER or COLDER keys, until appropriate model code is
displayed (See Figure 3-61 and 3-62). With appropriate model code displayed, press UNIT ON/OFF key to store
model configuration (See Figure 3-63).

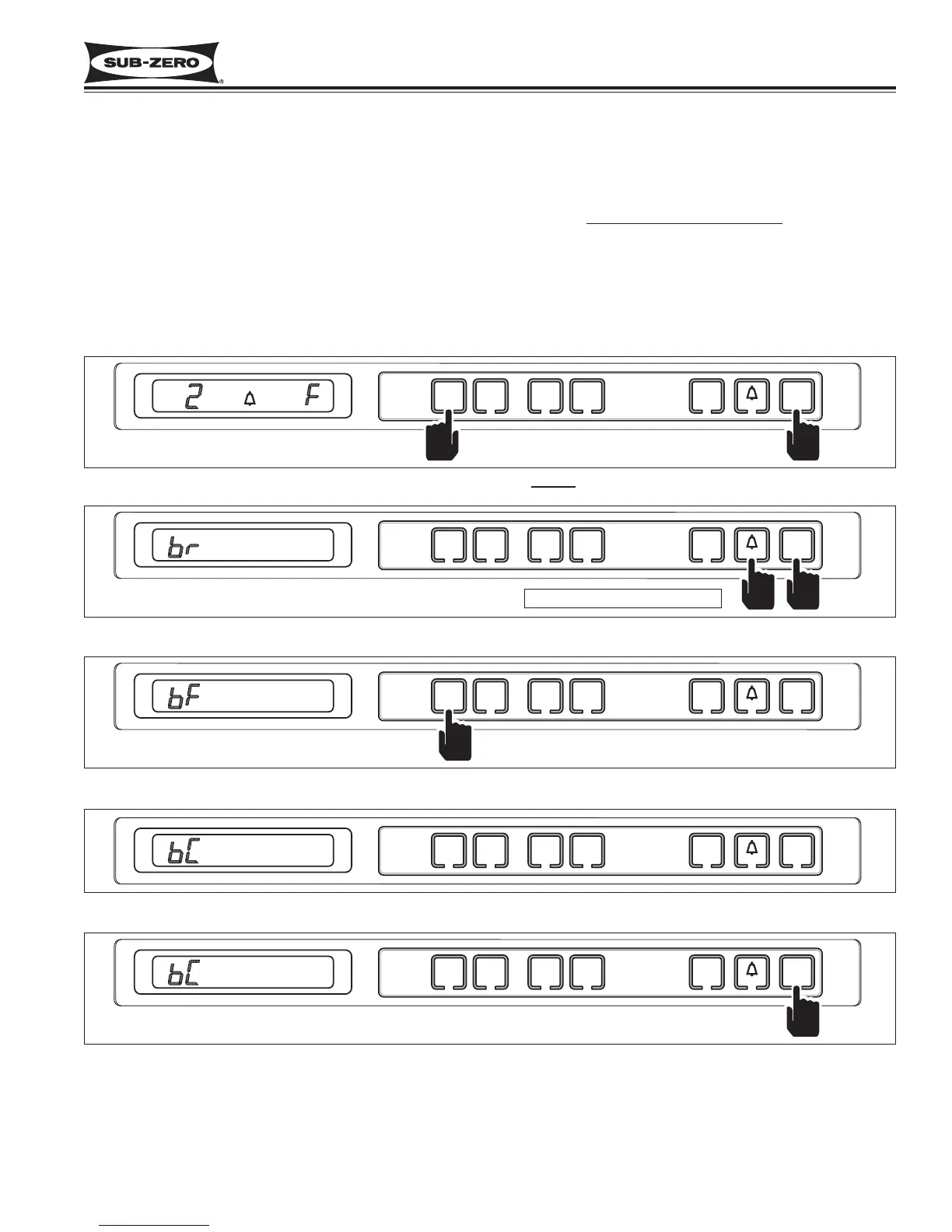

Figure 3-60. Press Alarm and UNIT ON/OFF key to Initiate Manual Entry Model Configuration Mode
Figure 3-59. Start in Diagnostic Mode - Press and Hold Either COLDER Key, Then UNIT ON/OFF Key
Press and hold for 15 seconds
Figure 3-61. Press WARMER or COLDER key to Toggle Through Model Codes
To Next Page
