Electrical Systems Operation & Diagnosis Module (602)
Legacy Audio System (2005-
2009)

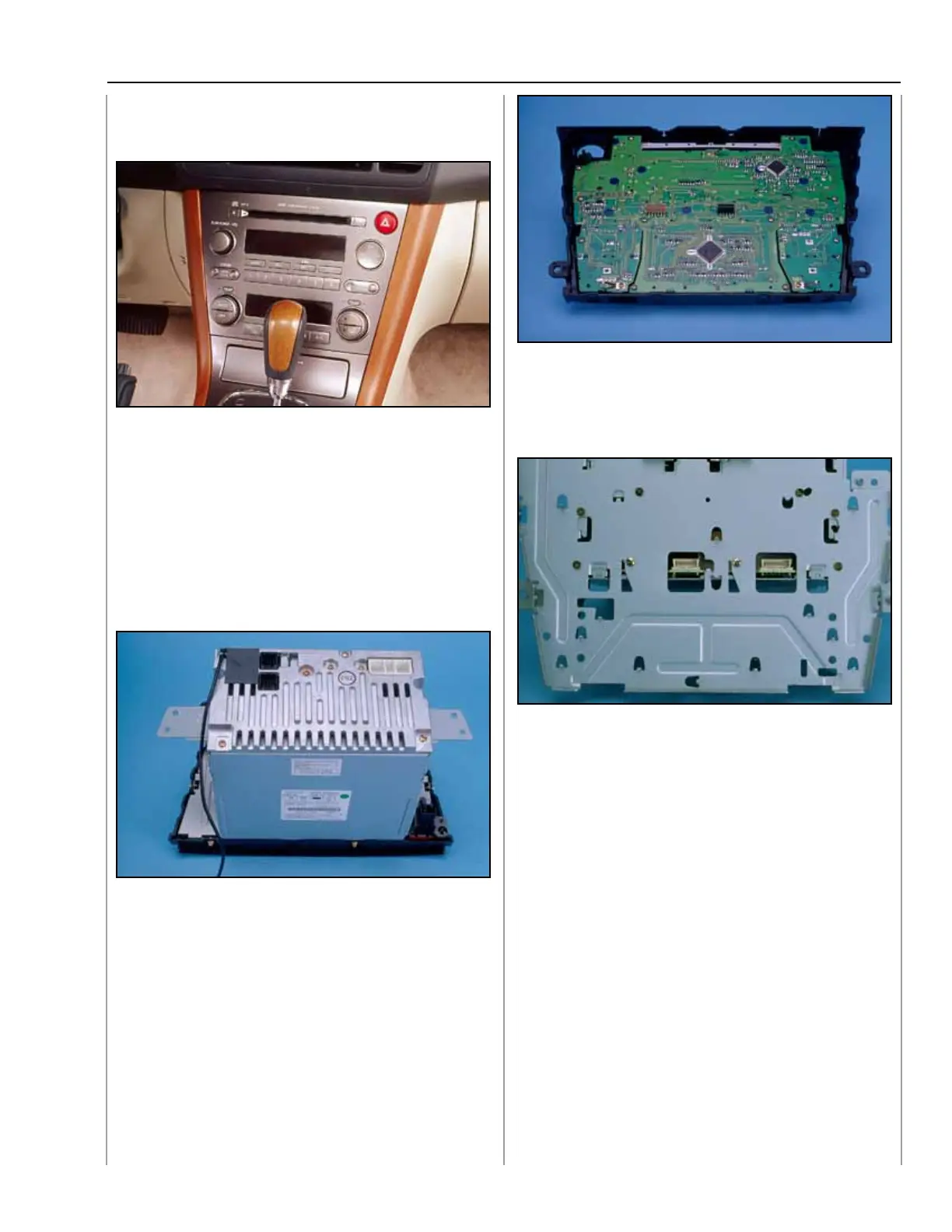

BEAUTY SHOT
The 2005~2009 Legacy/Outback models are
available with one of 3 types of audio packages.
The owners manual provides detailed operating
instructions for each type. The 3 types of audio
packages are identified as type A, B or C. Each
progressive letter providing a higher level of
capabilities.
REAR VIEW OF RADIO
All 3 types are controlled through the Audio/
HVAC control panel.
REAR VIEW OF CONTROL PANEL
This panel carries the desired input signals from
the driver to the audio unit.
FRONT VIEW OF RADIO CONTROL PANEL
The panel also carries the HVAC signals
(Automatic A/C models) from the control panel,
through the radio and out to the HVAC actuators.
(Manual HVAC uses a cable for temperature
control.)
