Electrical Systems Operation & Diagnosis Module (602)
Rear Vision Camera

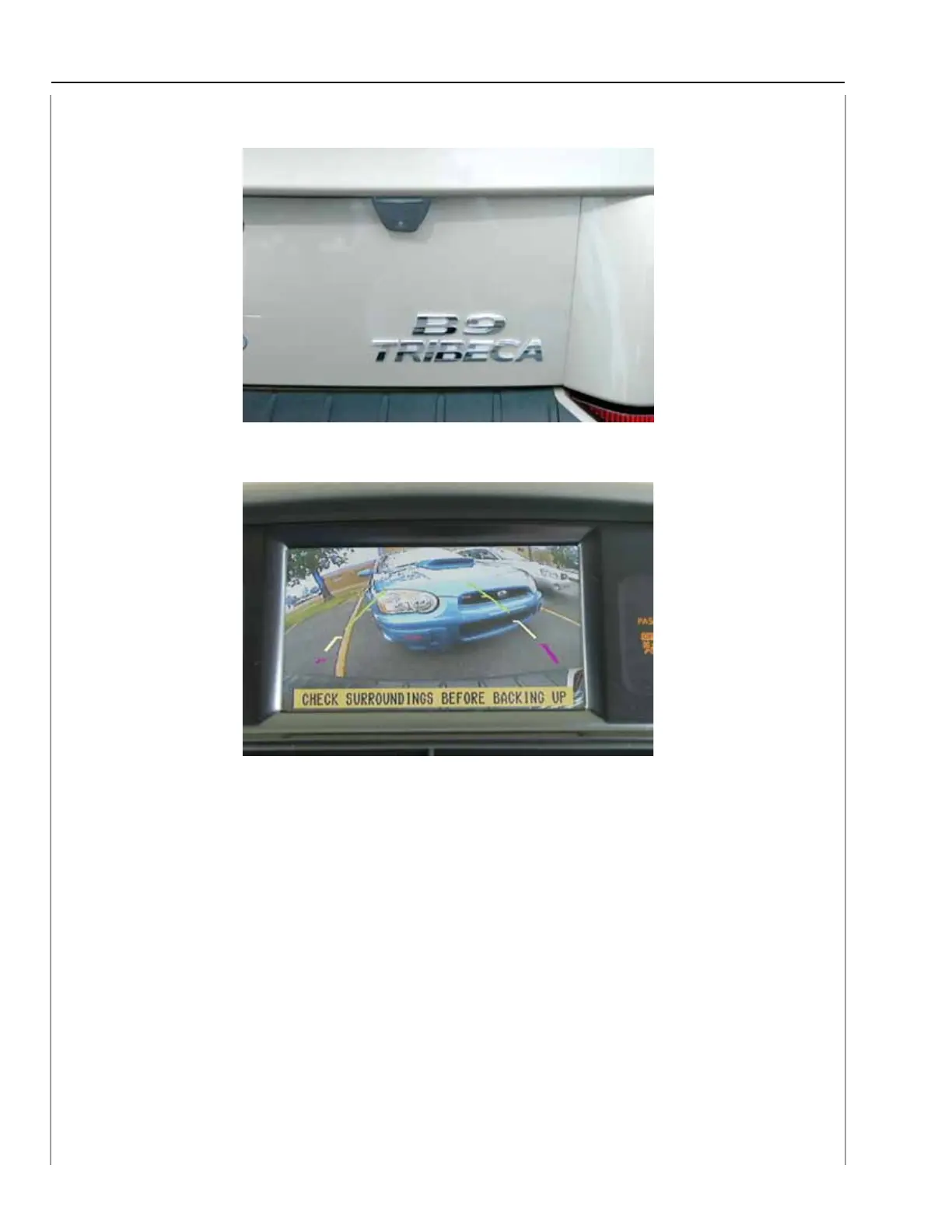

REAR VISION CAMERA ON BACK GATE
REAR VIEW IMAGE ON LCD SCREEN
A rear vision camera is now standard on all 2007 and newer navigation-equipped models. The
system displays an image of behind the vehicle with reference lines to aid in backing up/parking.
The image is shown on the high-resolution LCD screen only when the transmission is in reverse.
This system will turn the LCD screen on when going into reverse even if the LCD screen has been
turned off. This system is factory installed.
