Electrical Systems Operation & Diagnosis Module (602)

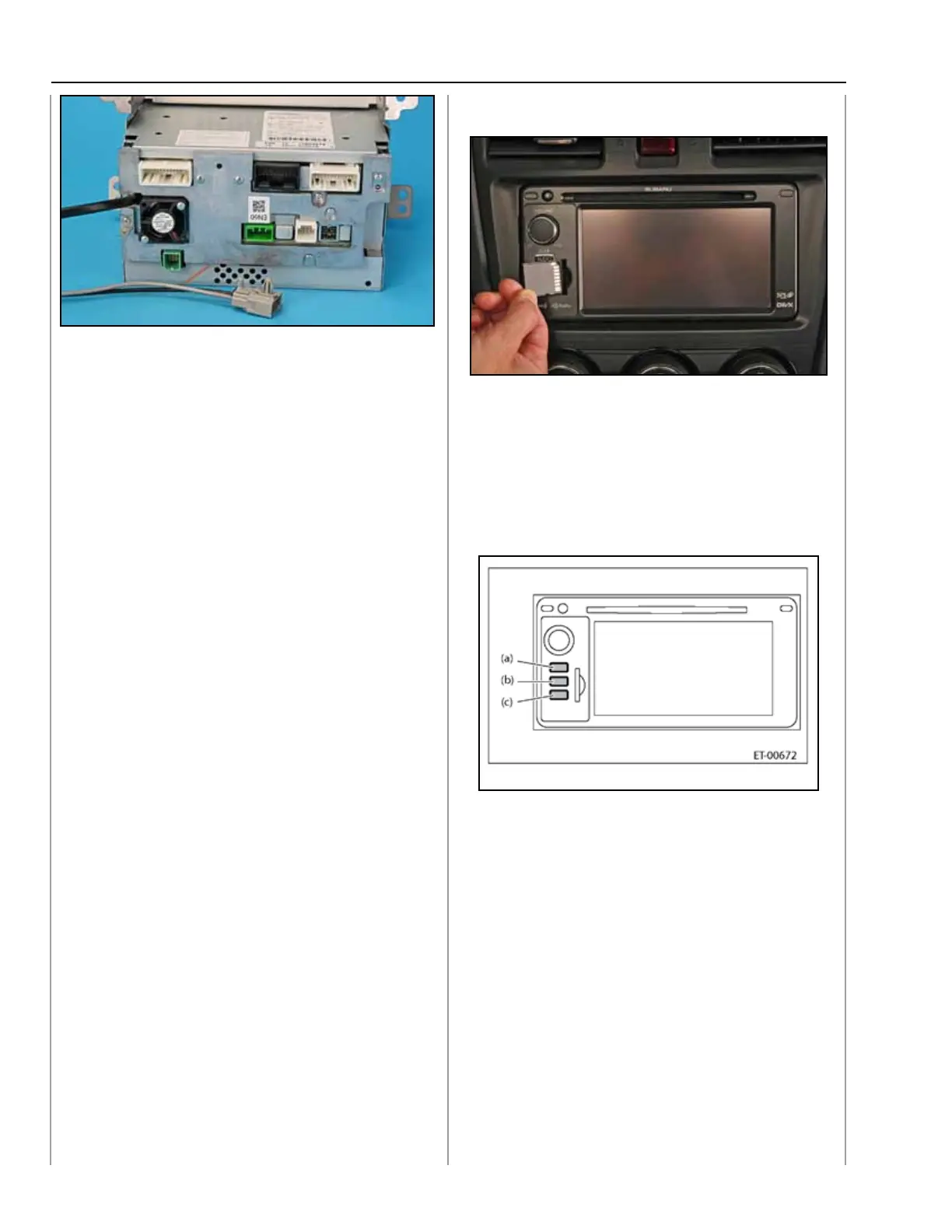

NAVIGATION SYSTEM AND RADIO ON BENCH REAR
VIEW
Seven (7) connectors
One (1) ground connector
One (1) antenna pig tail (The pig tail is attached
to the dash frame and must be released before
removing the Navigation system and radio from
the vehicle).
2012 Audio and Navigation
SD MEMORY CARD FUJITSU-TEN UNIT
Insert SD Card with the label facing the left side.
Make sure SD Card locks in. The SD Card is
programed with the Navigation Map Data. The
SD Card must be in place for the Navigation
System to operate.
DIAGNOSTIC MODE ACTIVATION
044
045
046
