Subaru 602 - Navigation Diagnosis (2008)

133
June 2013
Electrical Systems Operation & Diagnosis Module (602)

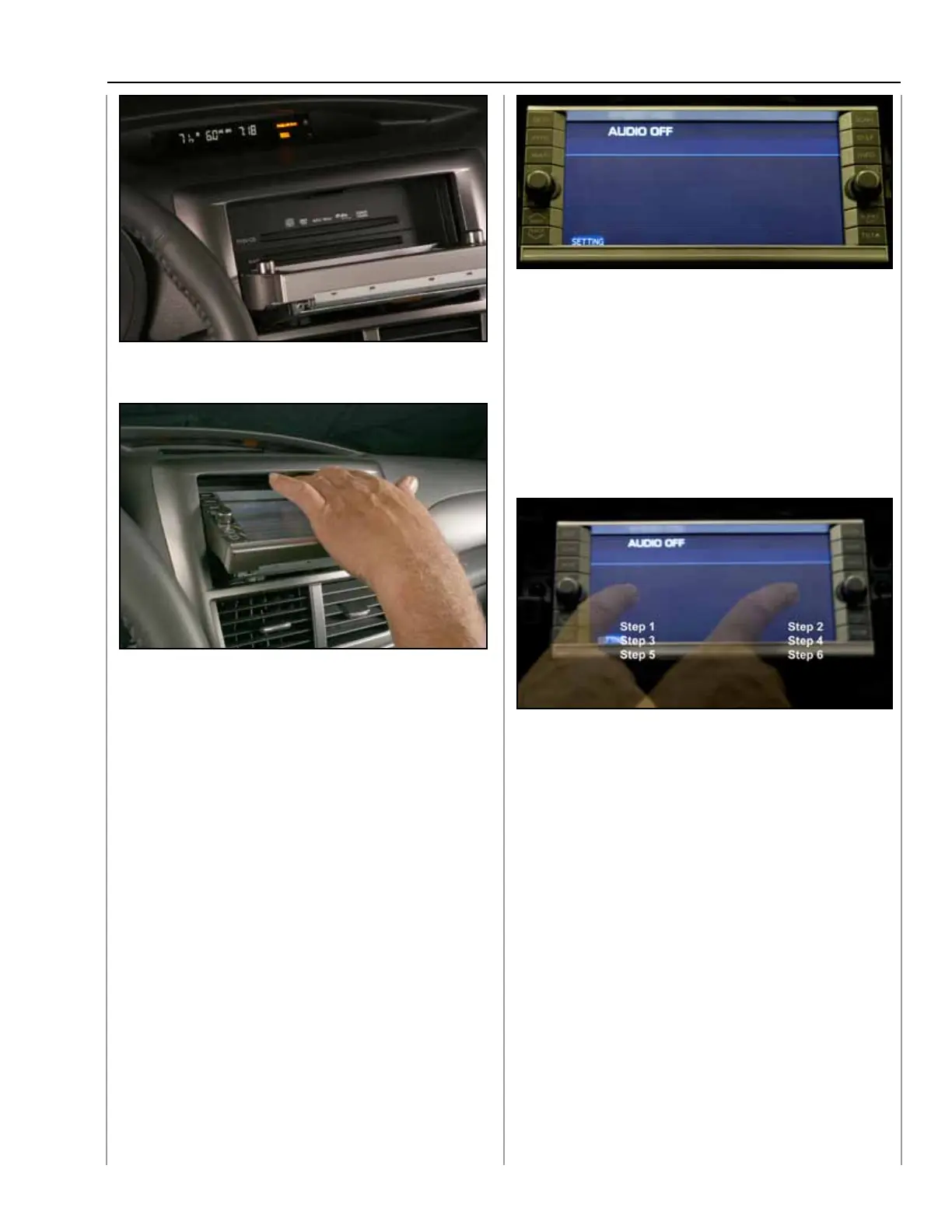

MAP DVD DRAWER
SHOWING SENSITIVITY IF OBSTRUCTED TO CLOSE
The word “close” on the now vertical panel
of the display indicates that the close control
is located on the now horizontal panel of the
display. Pushing the button will close the display
to the last tilt setting. The display close operation
is load sensitive and will stop the close function
if the display panel is obstructed.
Navigation Diagnosis (2008)
The Navi/Audio Unit contains a built in diagnosis
system. Start the engine and press the agree
button on the startup screen.
AUDIO OFF SCREEN
Next press the {Audio/Sat} button and turn the
audio off.
NOTE: ALL OTHER FUNCTIONS MUST
ALSO BE OFF.
Next tap the screen on the LEFT side and then
the RIGHT.
PROCESS OF ACTIVATING DIAGNOSTIC MODE
THERE MUST BE A TOTAL OF SIX (6)
ALTERNATING TAPS TO ACTIVATE
DIAGNOSTIC MODE.
Note: When the vehicle is placed into
reverse gear the radio volume is
automatically turned down.
