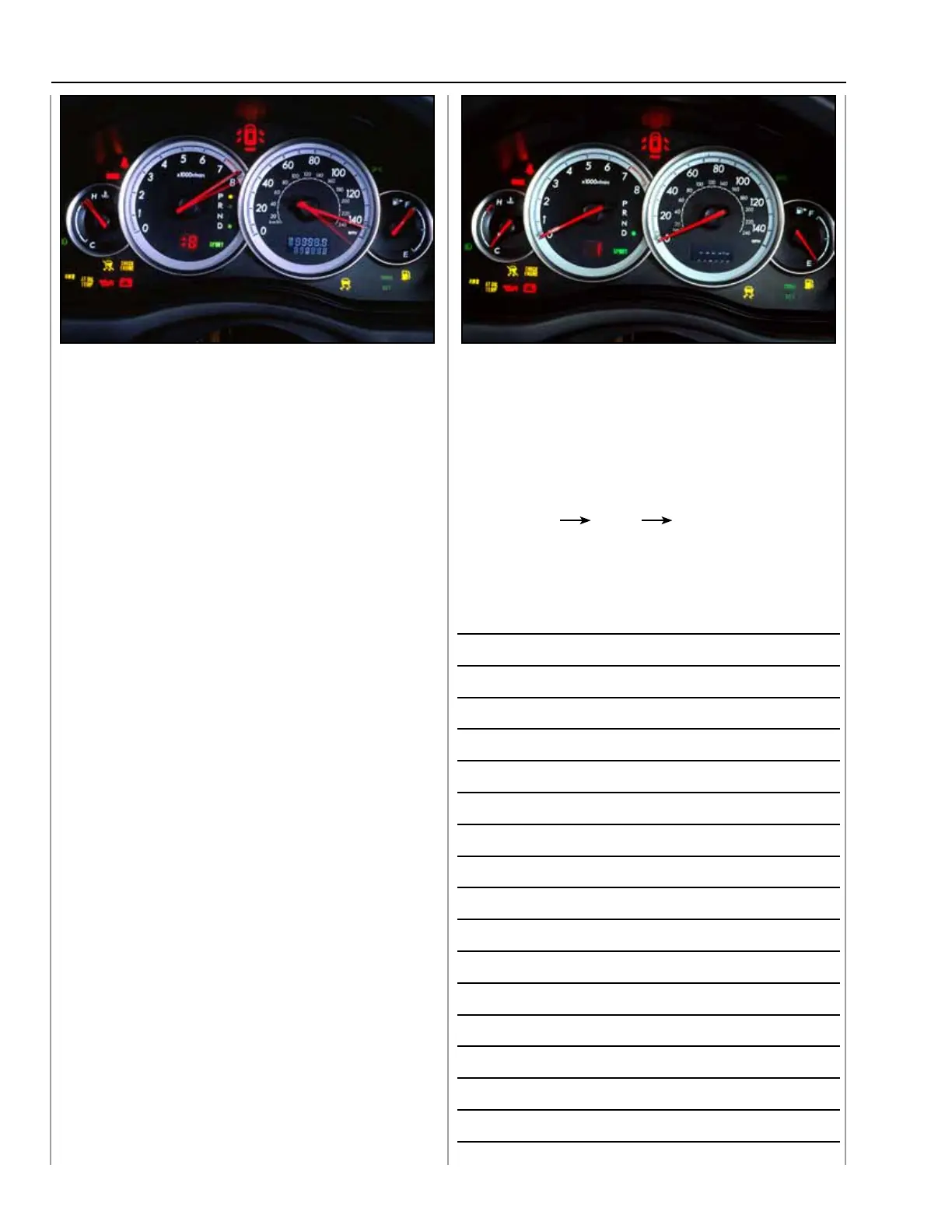

GAUGE SWEEP
While the gauges are sweeping, push the Trip
Meter stalk 2 times. The D check will now begin.
All lights, gauges, beeps and displays will turn
on and off. This will allow for a visual and audible
check of all Combination Meter devices.
After the initial sweep the combination meter
can be controlled to advance in the D check,
one step at a time.
Push the trip meter stalk at the end of the initial
sweep. This will allow only certain items to be
checked.
Continue pressing the stalk as each item is
checked, until all items have been inspected.
MANUAL ADVANCE
Pushing Trip Meter Stalk 1 time will activate the
Trip Meter to display trouble codes. Push the Trip
Meter Stalk to advance the code display. The
codes will be displayed in the following order
on the list below.
ECM
TCM
ABS/VDC
This must be done when the Combination Meter
is not performing a D check.
NOTES:
056 057
