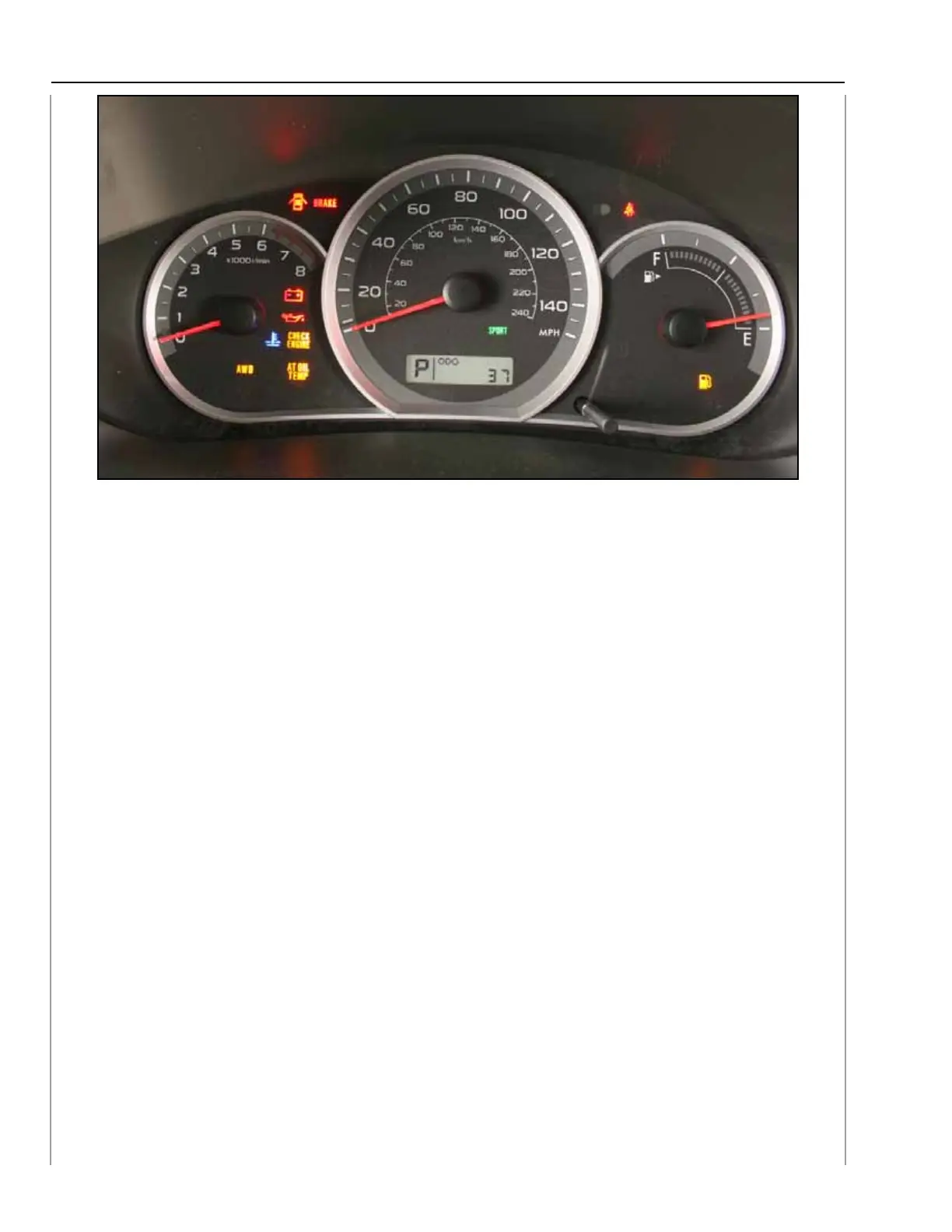

NATURALLY ASPIRATED MODEL COMBINATION METER
2008 and newer Impreza models are equipped with a sequential sweep and WRX models are
equipped with sequential illumination. The combination meter has an available D check proce-
dure. Turbo models are equipped with a temperature gauge and the Naturally Aspirated models
are equipped with a temperature warning light.
Temperature warning light logic
< 50°C (122°F) Blue
113°C (235°F) Red Blink
120°C (248°F) Red On
The Red indicator will turn off after the temperature has dropped to 111°C (232°F). The light will
change to blue after the temperature has dropped to 45°C (113°F). (BIU controlled)
Note: This temperature warning light logic is applicable for 2009 and newer Forester
models.
